Switch from center console, removing and installing: Removing

Grab trim piece -1- by hand through the ash tray opening.
Carefully pull the trim piece -1- in direction of arrow.

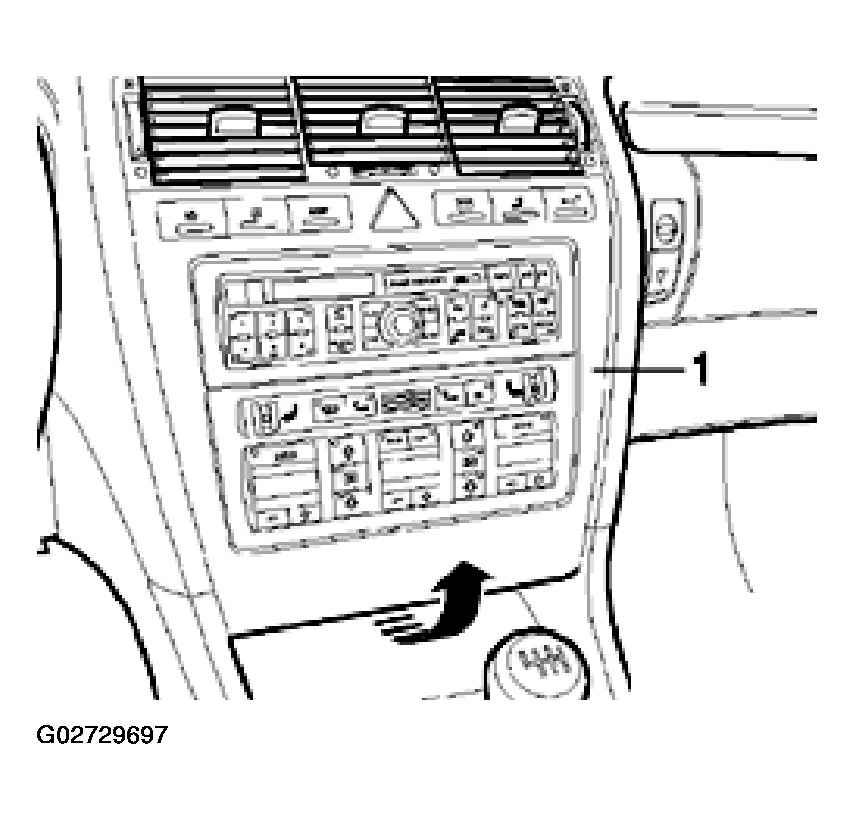

Fig 1: Pulling Trim Piece From Center Of Instrument Panel

G02729697

Courtesy of AUDI OF AMERICA, INC.

Remove the trim piece -1- carefully.

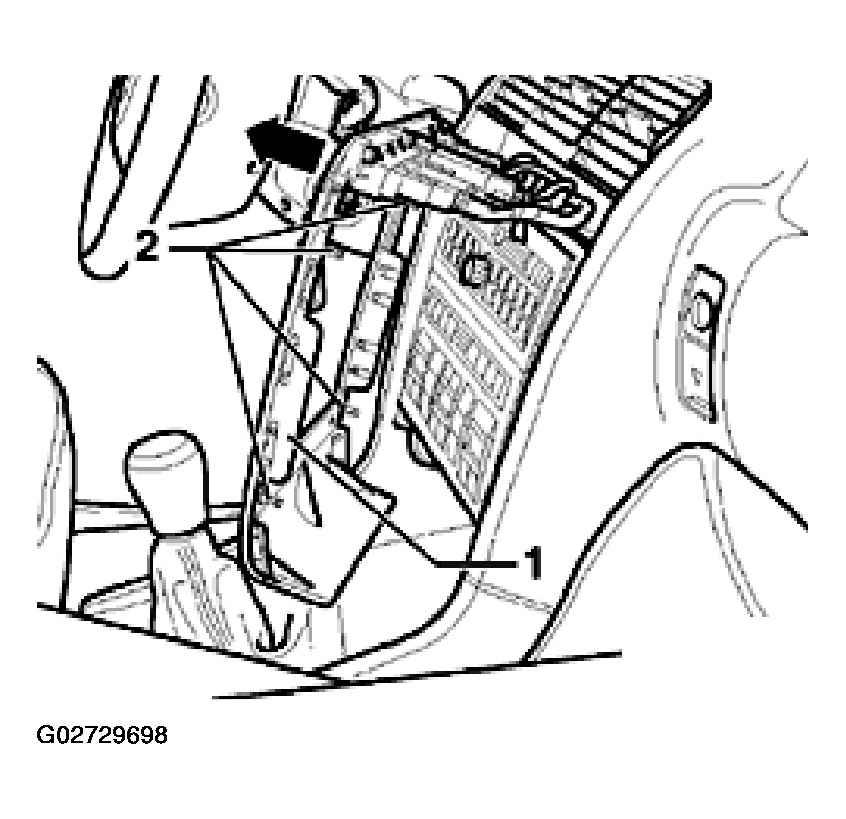

Fig 2: Removing Trim Piece From Center Of Instrument Panel

G02729698

Courtesy of AUDI OF AMERICA, INC.

Disconnect the harness connector to the switch to be serviced.
Push out the switch in direction of the arrow.
