Rearview mirror (roof mounted), removing and installing
NOTE:

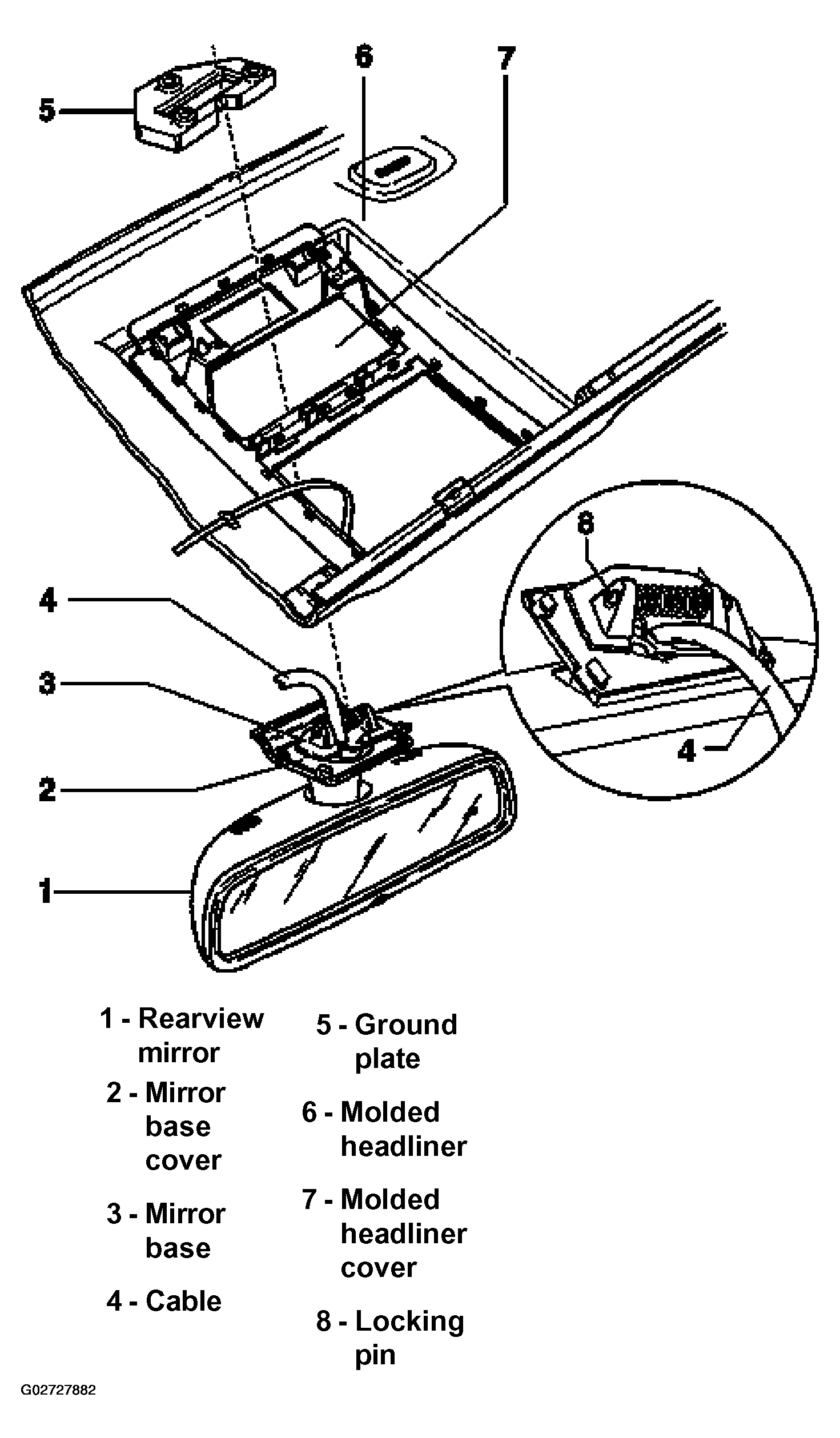

The following list refers to Fig 1.
- Rearview mirror
- Removing
- Unclip molded headliner cover -7- at front.
- Disconnect harness connector -4- to rearview mirror.
- Using a screwdriver on the left side, pry out rearview mirror between base plate -5- and mirror base -3-.
- Installing:
- Check whether locking pin -8- is locked before installing.
- Insert right side of mirror base -3-.
- Clip in mirror base cover -2- on right side.
- Press up mirror base cover -2- on left side along with mirror base -3- until locking pin -8- engages.
- Removing
- Mirror base cover
- Mirror base
- Cable
- Ground plate
- Molded headliner
- Molded headliner cover
- Locking pin
