Ashtray, storage pocket, trim for shift mechanism and center console, removing and installing: Notes
NOTE:

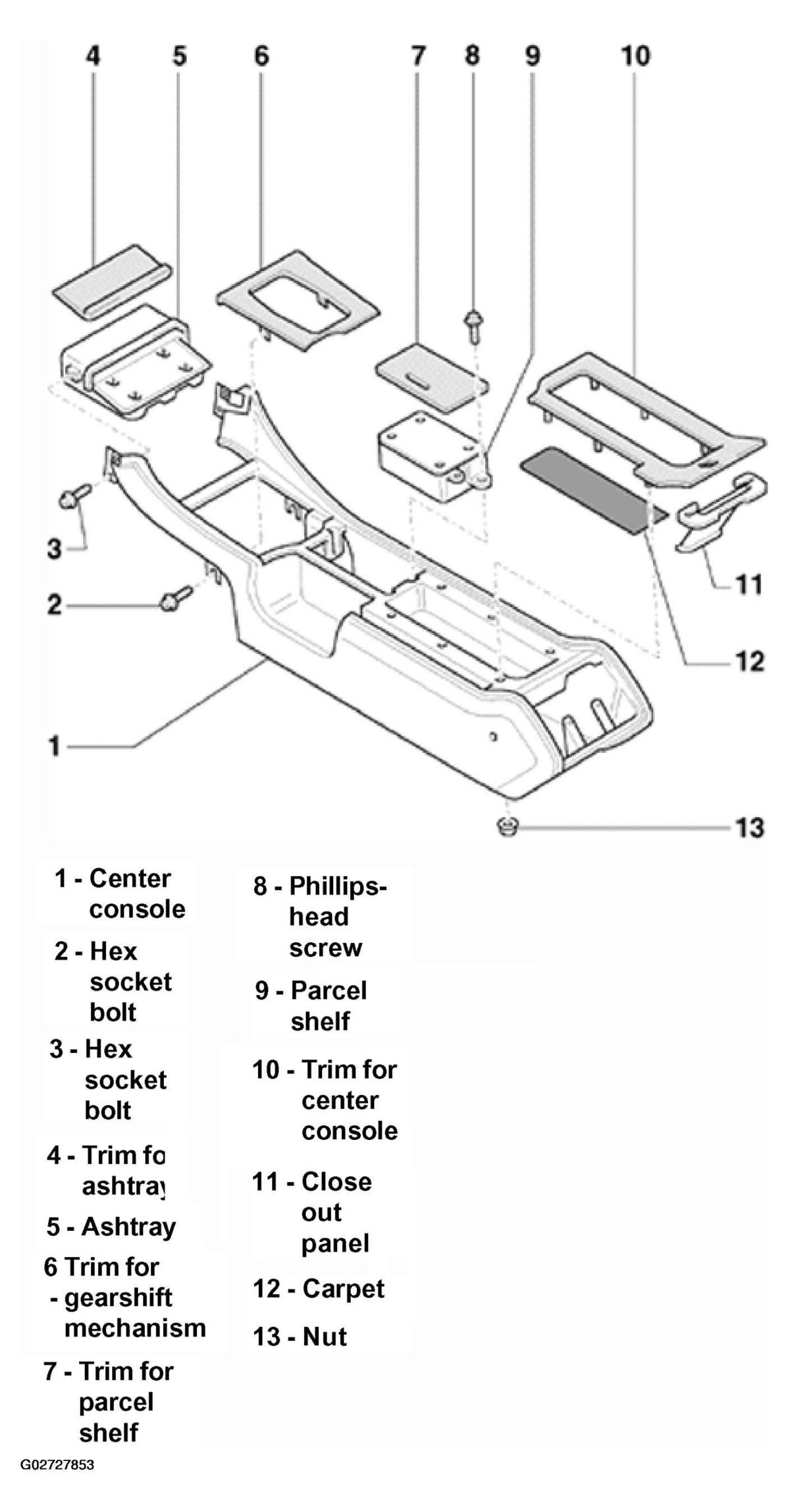

The following list refers to Fig 1.
- Center console
- Removing and installing. See CENTER CONSOLE, OVERVIEW .
- Hex socket bolt
- 2.5 Nm (22 in.lb.)
- 2 parts
- Hex socket bolt
- 2.5 Nm (22 in.lb.)
- 2 parts
- Trim for ashtray
- To remove close ashtray, remove trim from behind
- Ashtray
- To remove take out center console, see CENTER CONSOLE, OVERVIEW .
- Trim for gearshift mechanism
- Version for vehicles with automatic transmission
- Removing
- Remove trim for center console left and right. Remove two screws -2-.
- Version for vehicles with manual transmission, see TRIM FOR GEARSHIFT MECHANISM FOR VEHICLES WITH MANUAL TRANSMISSION .
- Trim for parcel shelf
- To remove parcel shelf -9- remove and press off trim from hinge side
- Phillips-head screw
- 1.5 Nm (13 in.lb.)
- 3 parts
- Parcel shelf
- With lid
- To remove center console, remove trim -10- and trim for gearshift mechanism -6-
- Trim for center console
- To remove, take out center console and remove nuts -13-
- Close out panel
- To remove, remove center console and trim -10-
- Carpet
- Nut
- 0.5 Nm (4 in.lb.)
- 6 parts
