Center armrest (from 10.98 on)
>>
Center armrest, removing and installing
>>
Disconnecting connector for lighting
Disconnecting connector for lighting
Pull cable out of cut-out.
Disconnect harness connector -1-.
For vehicles without telephone, there are two harness connectors -1-.

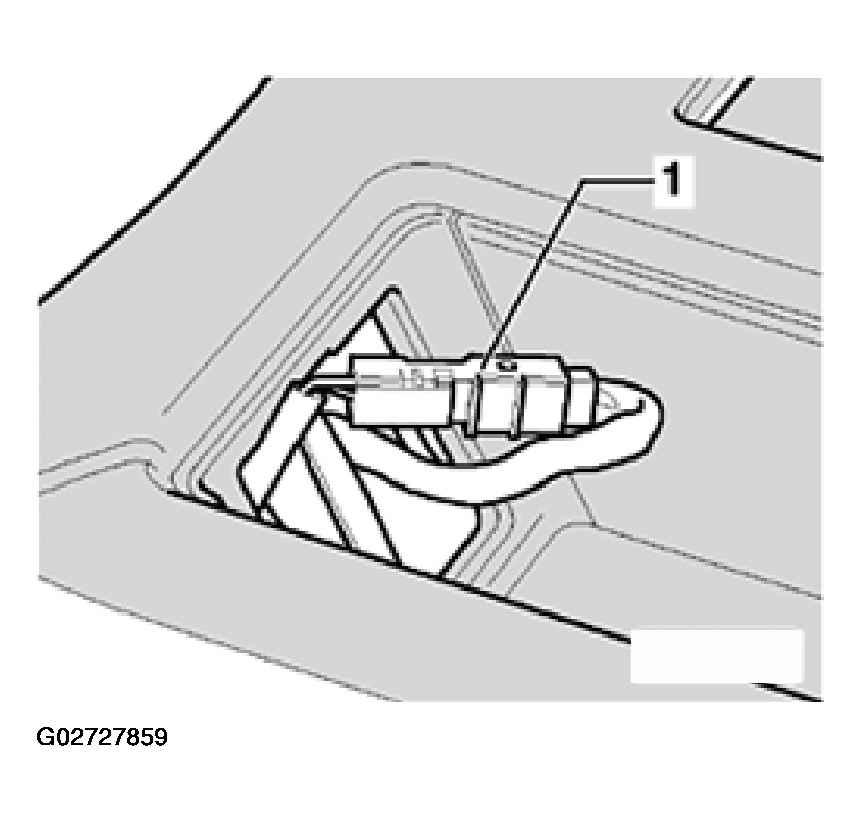

Fig 1: Disconnecting Connector For Lighting (From 10.98 On)
Courtesy of AUDI OF AMERICA, INC.
