Center armrest with Cullmann-Lift, removing and installing

• Removing

• Remove left- and right-side trim pieces from center armrest. See CENTER ARMREST TRIM PLATE, REMOVING AND INSTALLING .
• Remove storage compartment. See CENTER ARMREST STORAGE COMPARTMENT, REMOVING AND INSTALLING .

1. Metal rail
   • Pull metal rail -1- up and remove to side.
   Fig 1: Pulling Metal Rail Up & Removing To Side (From 10.98 On)
   Courtesy of AUDI OF AMERICA, INC.
   • Pull spring mounting -2- off in downward direction.
   • Remove screws -3- (6x).

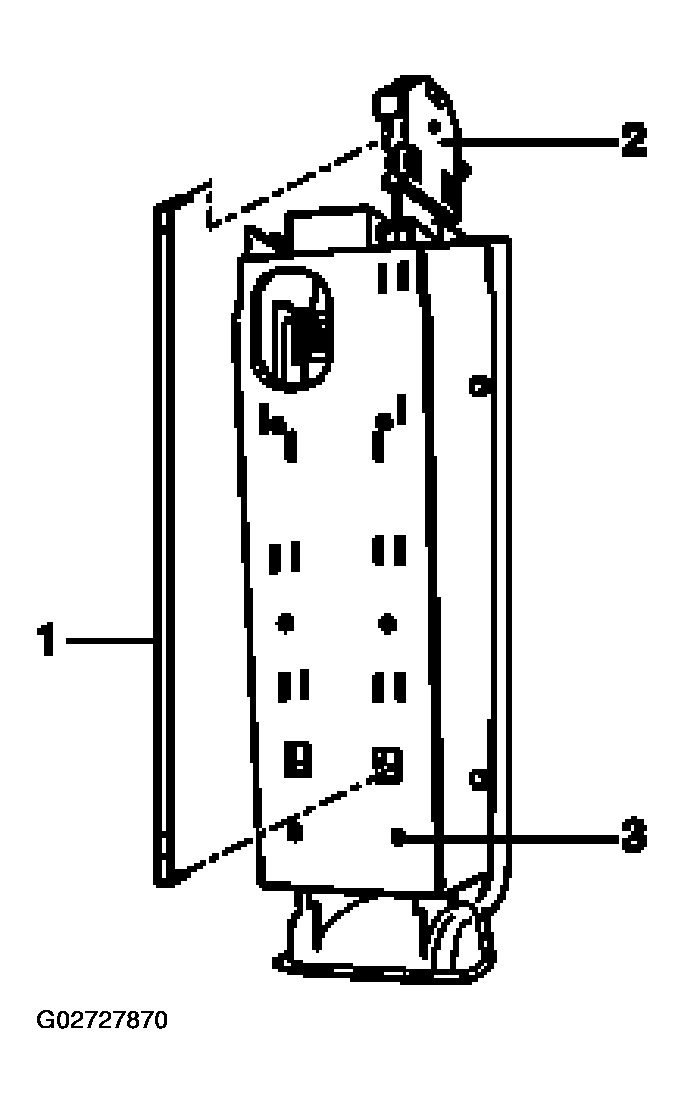

Fig 2: Pulling Spring Mounting Off In Downward & Removing Screws (From 10.98 On)
Courtesy of AUDI OF AMERICA, INC.
2. Spring mounting
3. Screws (6x)
   • Installing

Install in reverse order of removal
