Storage compartment with Cullmann lift
NOTE:

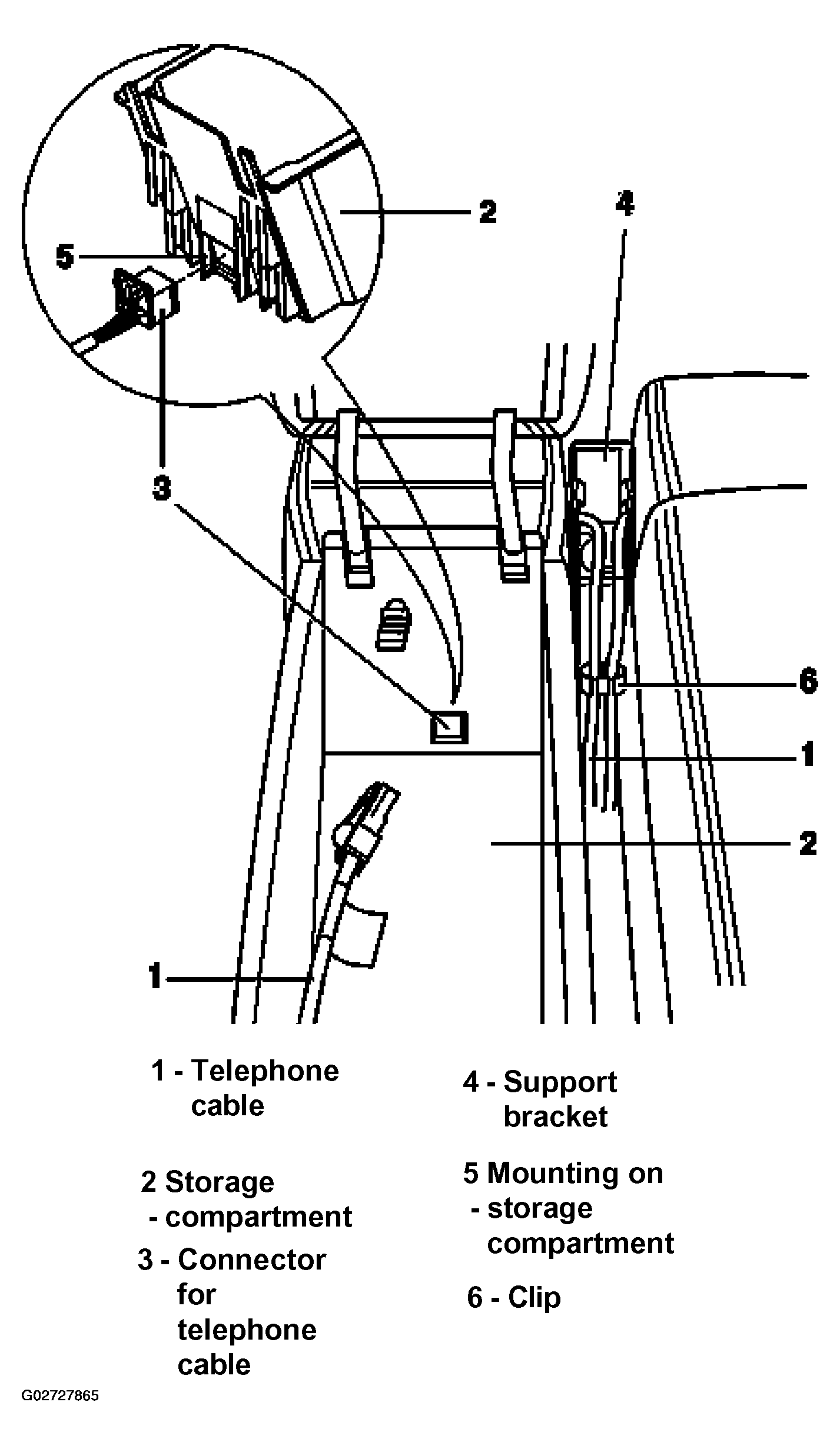

The following list refers to Fig 1.
- Telephone cable
- Disconnect telephone cable -1- from socket -3- in storage compartment -2-.
- Unclip telephone cable -1- from clip -6- on support bracket -4-.
- Push telephone cable -1- along at support bracket -4- and carefully remove storage compartment -2- in forward direction.
- Slide telephone connector cable -3- downward out of mounting -5- from storage compartment -2-.
- Remove storage compartment -2- complete with lift.
- Storage compartment
- Connector for telephone cable
- Support bracket
- Mounting on storage compartment
- Clip NOTE: After installing telephone cable -1-, pull it tight at support bracket -4-.
