Center armrest cable, removing and installing

Remove center armrest. See CENTER ARMREST (FROM 10.98 ON) .
Remove storage compartment at left and right. See CENTER ARMREST STORAGE COMPARTMENT, REMOVING AND INSTALLING .
Unclip cable from clip -1-.

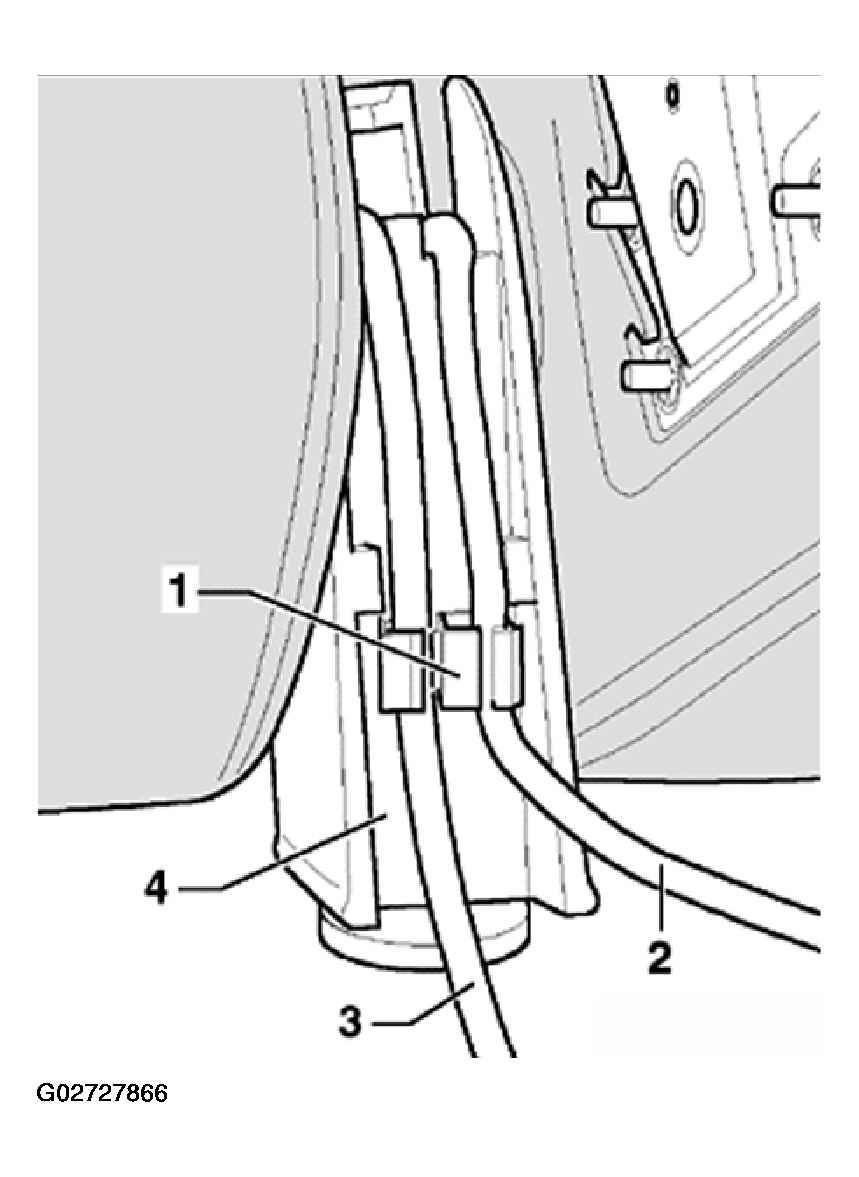

Fig 1: Unclipping Cable From Clip (From 10.98 On)

G02727866

Courtesy of AUDI OF AMERICA, INC.

Remove center armrest at left and right CENTER ARMREST WITH CLIP, SEPARATING AT LEFT AND RIGHT .
Route cable through center armrest.

2-Cable for left center armrest
3-Cable for right center armrest
4-Support foot
