Undercar aerodynamic covers, removing and installing

NOTE: The following list refers to Fig 1 .

Right-side cover
- Remove before removing bumper
  - Remove bolts -5-, pull off expanding nut, and open quick-release at wheelhousing liner.
Left-side cover
- Loosen metal heat protection sheet at left cover and bend slightly to side.
- Remove bolts -5- and pull off expanding rivet.
Left-side sill cover
Removing:
- Remove door sill molding.
- Pull off expanding rivet and remove bolt.
Right-side sill cover
Removing:
- Remove door sill molding.
- Pull off expanding rivet and remove bolt.
Bolt
- 2 Nm (18 in. lb)

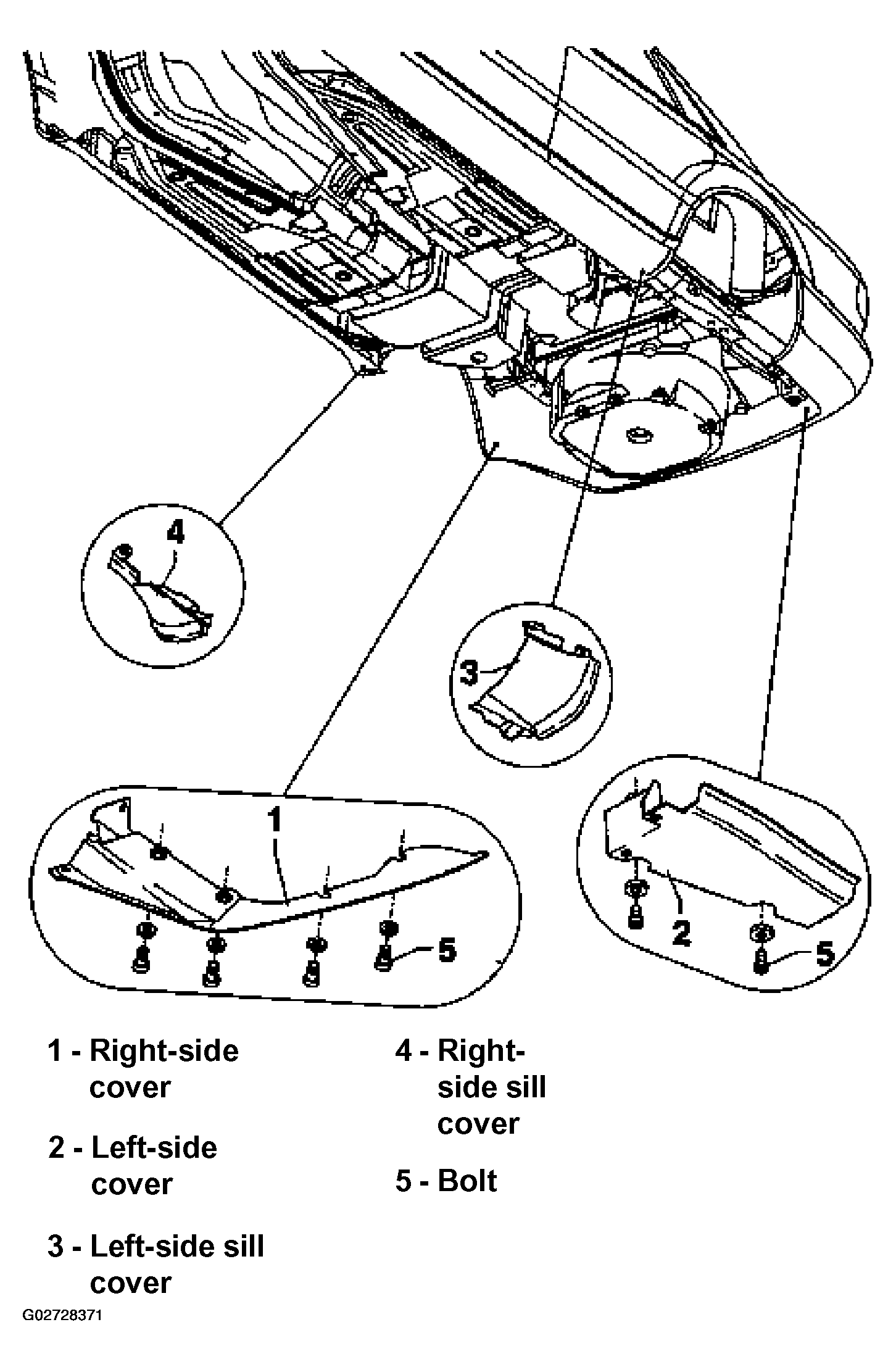

Fig 1: Identifying Undercar Aerodynamic Covers Components

Courtesy of AUDI OF AMERICA, INC.
