Outside rear-view mirror, removing and installing

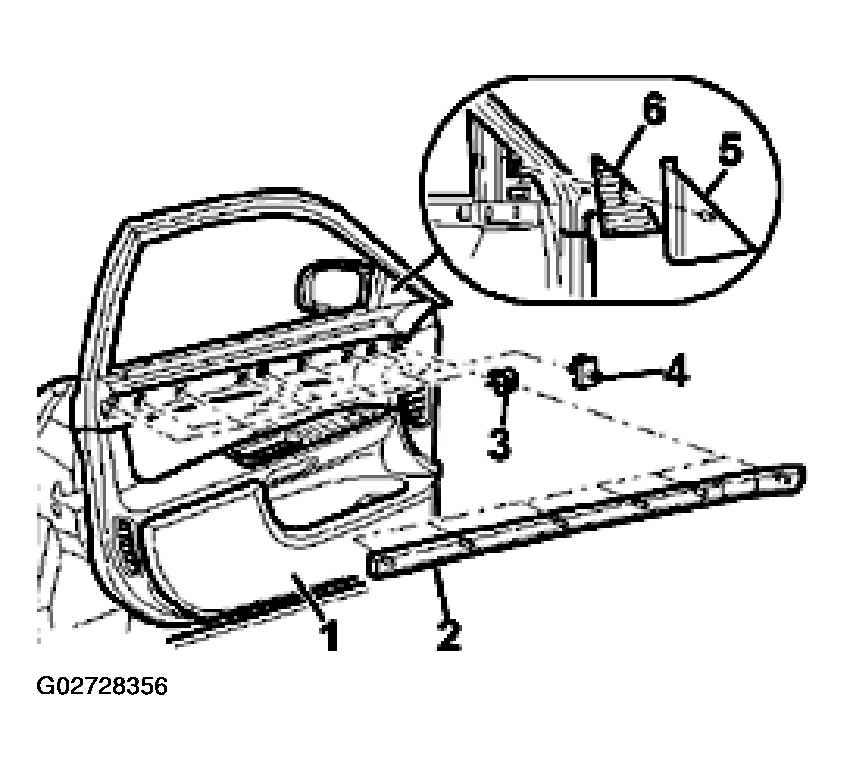

Fig 1: Unclipping Trim From Front Door & Removing Seal

Courtesy of AUDI OF AMERICA, INC.

Run door window to lowest position.
NOTE: On vehicles equipped with the mirror memory, remove the trim for the front door before disconnecting the harness connector.

See FRONT DOOR TRIM, REMOVING AND INSTALLING .
Remove bolt -1- together with washer -2-. See Fig 2 .
Tightening torque: 8 Nm (71 in.lb)
Lift out rear-view mirror -4- behind window opening seal and window guide. See Fig 2 .
Lift off seal -3- simultaneously.

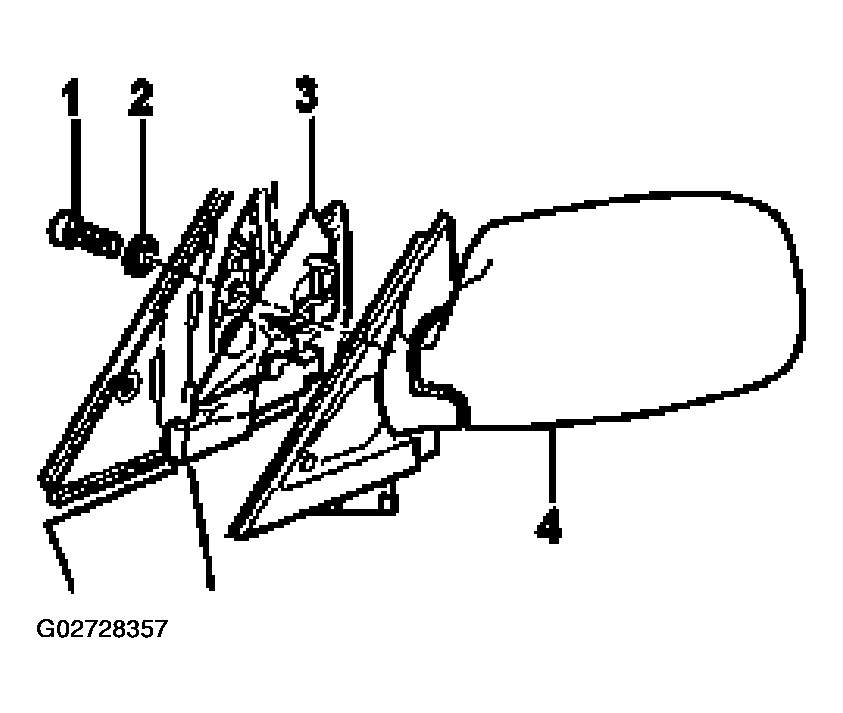

Fig 2: Removing Rear-View Mirror & Lifting Off Seal

Courtesy of AUDI OF AMERICA, INC.
