Audi emblem, removing and installing
- Heat old emblem slightly using hot air blower and carefully remove:
- Clean adhesive surface of dust and grease to which emblem will be attached.
- Mark dimension -1- and center of rear lid before attaching.
Dimension -1-: 35 mm
- Heat Audi-emblem to about 40° C (104° F).
- Remove protective paper from adhesive surface of Audi emblem.

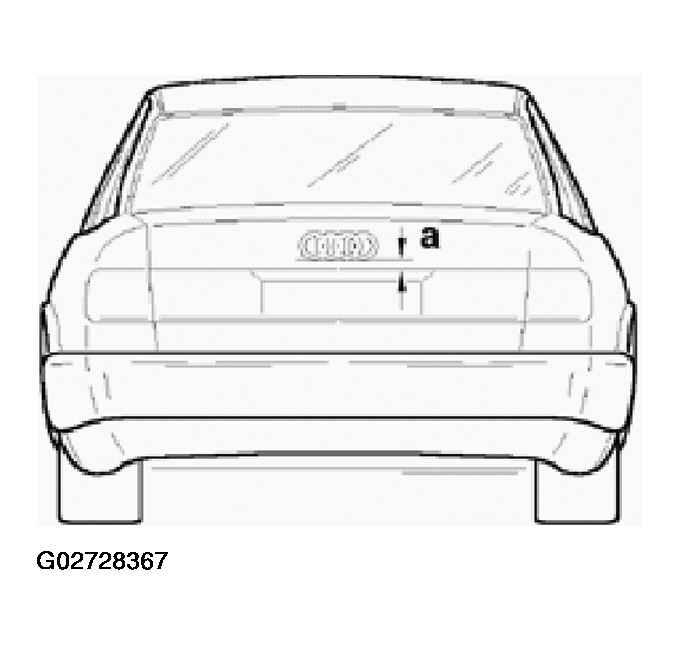

- Attach emblem in center of rear lid at distance -a- from edge of rear lid.
