Lower C-pillar trim, removing and installing.

NOTE: The following list refers to Fig 1.

Lower C-pillar trim
- Removing:
  - Remove back rest and remove electrically adjustable seat unit at rear. See REAR SEATBACK, REMOVING AND INSTALLING or ELECTRICALLY ADJUSTABLE INDIVIDUAL SEATS, REMOVING AND INSTALLING .
  - Remove Phillips-head screws -2-.
  - Unclip trim at clamp -3-.
  - Unclip C-pillar trim catches -4- from retaining strip -6- in transition to B-pillar trim.
  - Remove C-pillar trim from upper trim by pulling downward.
Phillips-head screw, -0.5 Nm
- 2x
Clip
Catches
Butyl string
- 40 mm long
- AKL 450 005 05
Retaining strip
Rear floor carpet

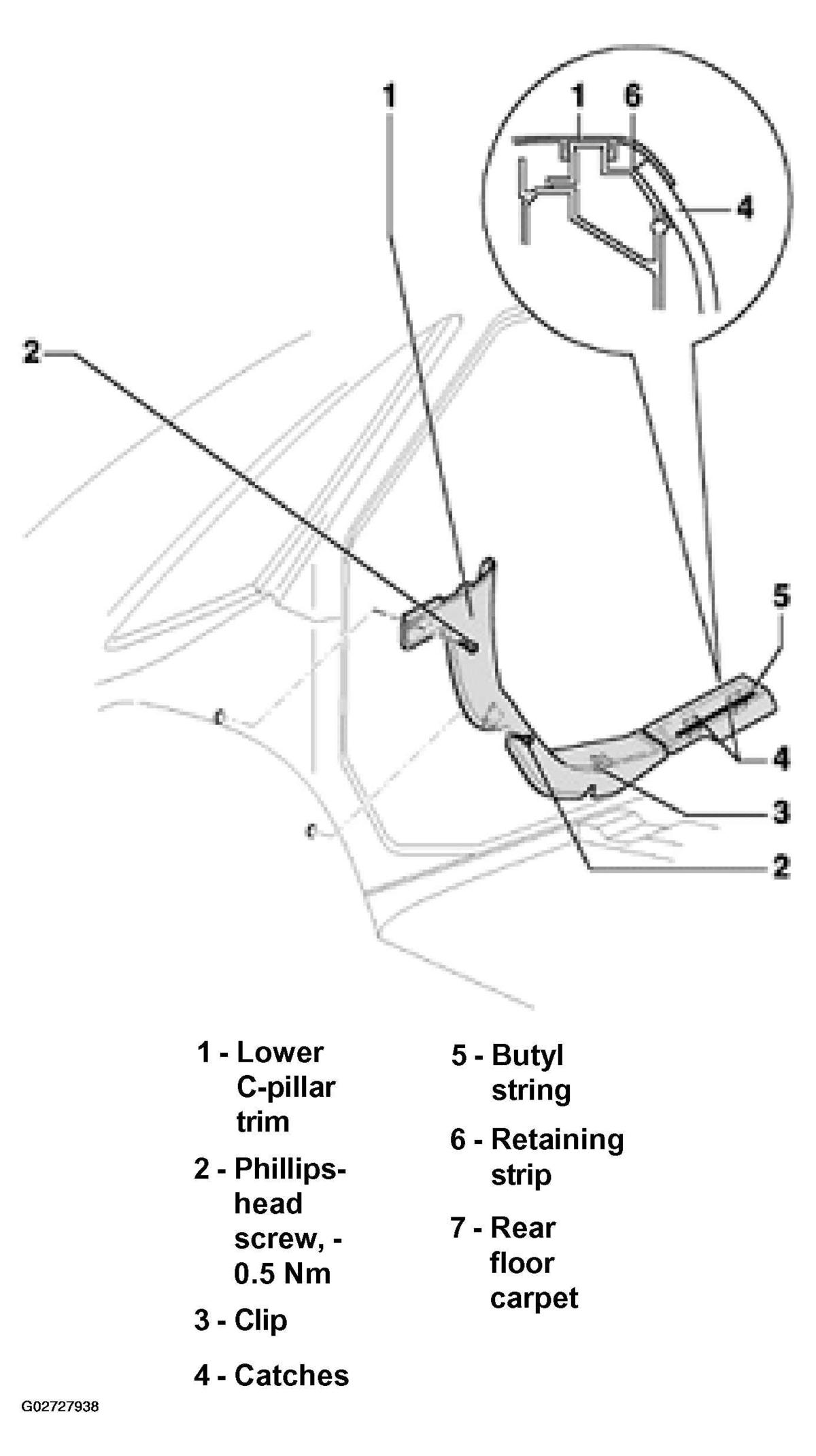

Fig 1: Identifying Lower C-Pillar Trim Components (With Roof Mounted Rearview Mirror, M.Y. 2000 And Up)

G02727938

Courtesy of AUDI OF AMERICA, INC.
