Power sunshade for rear glass, removing and installing

NOTE: In the Fig., hatshelf shown from back side.

NOTE: The following list refers to Fig 1.

Hat shelf
4.5 Nm (40 in.lb.)
- 4 parts
Power sunshade
- Removing:
  - Remove hatshelf. See HAT SHELF, REMOVING AND INSTALLING .
  - Remove adhesive strip (hatched area).
  - Separate tie wrap (arrow).
  - Remove nuts -2-.
  - Remove -5- and remove sunshade.
Rear window shade motor -V91-
- Removing and installing. See REAR WINDOW SHADE MOTOR, REMOVING AND INSTALLING .
- Motors with hex head drive gear are no longer available.
- For change-over to star shape drive gear use small part set
- See parts catalog
- Change drive disc. See DRIVE DISC FOR MOTOR REAR SHADE, REPLACING .
5.5 Nm (49 in.lb.)
- 2 parts
Rear window shade control module -J262-
- Removing and installing. See REAR WINDOW SHADE CONTROL MODULE -J262-, REMOVING AND INSTALLING .

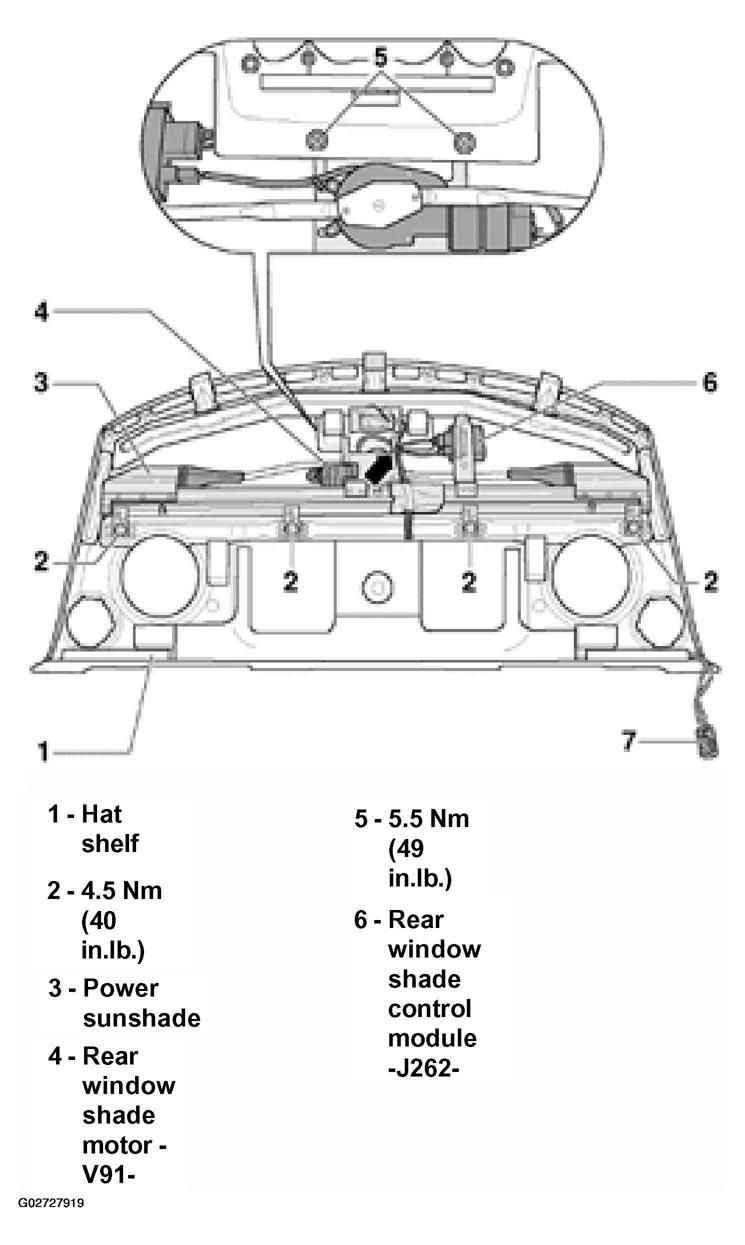

Fig 1: Identifying Power Sunshade For Rear Glass Components

Courtesy of AUDI OF AMERICA, INC.
