Acoustic fitting at carrier for instrument cluster, removing
- Adjust steering wheel all the way down and to rear.

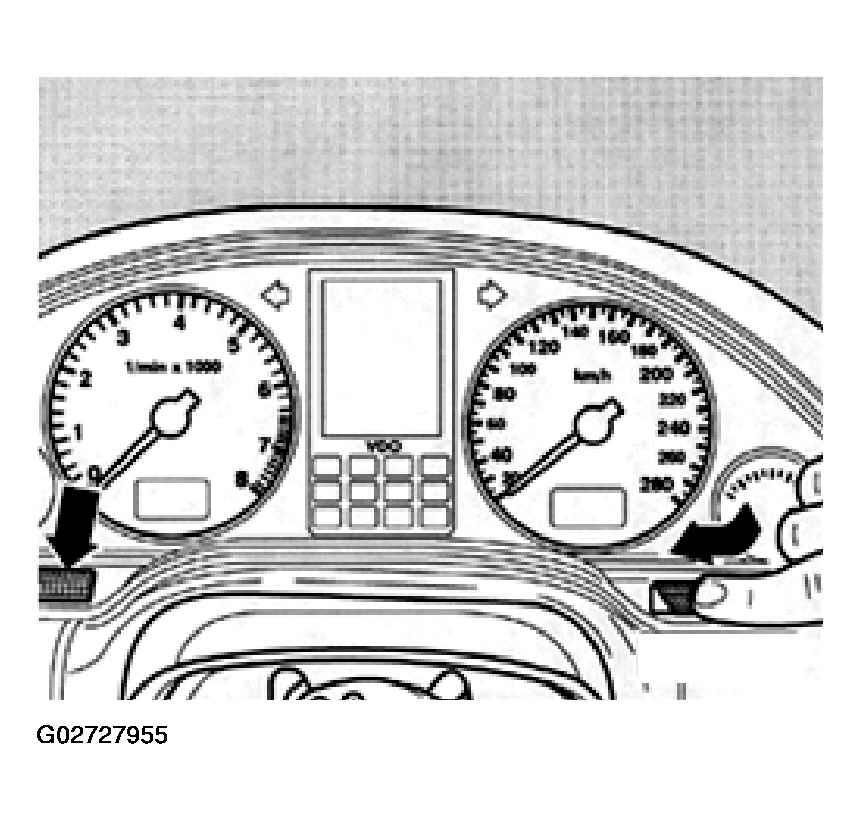

- Press in outer cover (arrows) and remove.
Courtesy of AUDI OF AMERICA, INC.

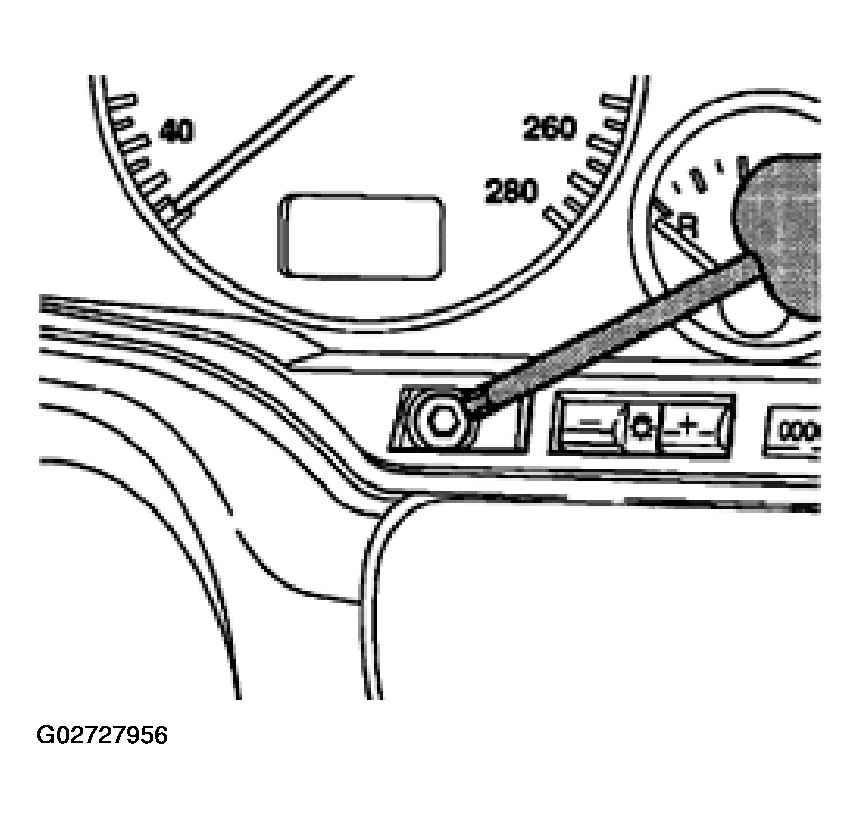

- Remove bolts (2x).
Courtesy of AUDI OF AMERICA, INC.
- Pull instrument cluster out of instrument panel.
- Disconnect cable ties on rear of instrument cluster.
- Disengage retaining tabs of harness connectors and disconnect harness connectors.
- Remove instrument cluster.
- Remove bolt -2- (8 Nm).

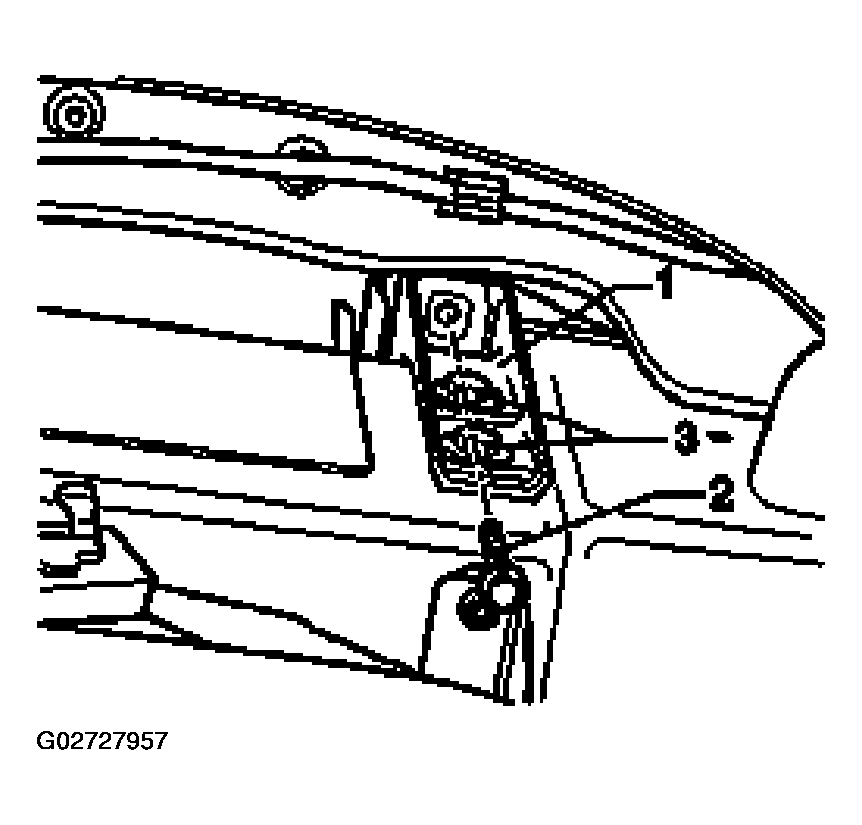

- 1 - Acoustic fitting
- 3 - Bolts (8 Nm)
