Retaining hooks for sunshade, removing and installing

  1. 2 - Retaining hooks
  2. 3 - Tapping screws - 1.5 Nm/13 in.lb.
    NOTE: Base plate -1- serves to balance out tolerance and must be installed where it was installed at the plant.

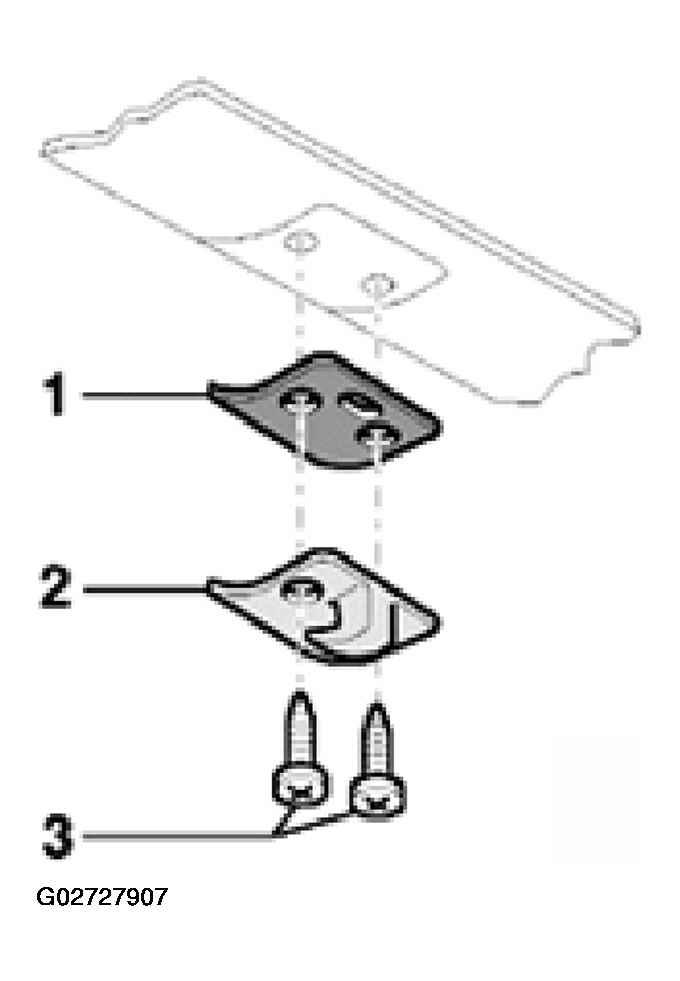

    3. Fig 1: Identifying Retaining Hooks, Base Plate & Tapping Screws For Sunshade
    G02727907Courtesy of AUDI OF AMERICA, INC.
