Lower section of center armrest outer covering, removing and installing
- Removing
- Remove center armrest. See CENTER ARMREST (FROM 10.98 ON) .
- Remove left and right side trim pieces of center armrest. See CENTER ARMREST TRIM PLATE, REMOVING AND INSTALLING .
- Remove storage compartment. See CENTER ARMREST TRIM PLATE, REMOVING AND INSTALLING .NOTE: When removing arm rest covering, begin at the rear.
- Remove clips -1- (10x) on left and right. See Fig 1.
- Remove guide -3- for support foot.
- Remove outer covering -2- from front to rear.
NOTE:

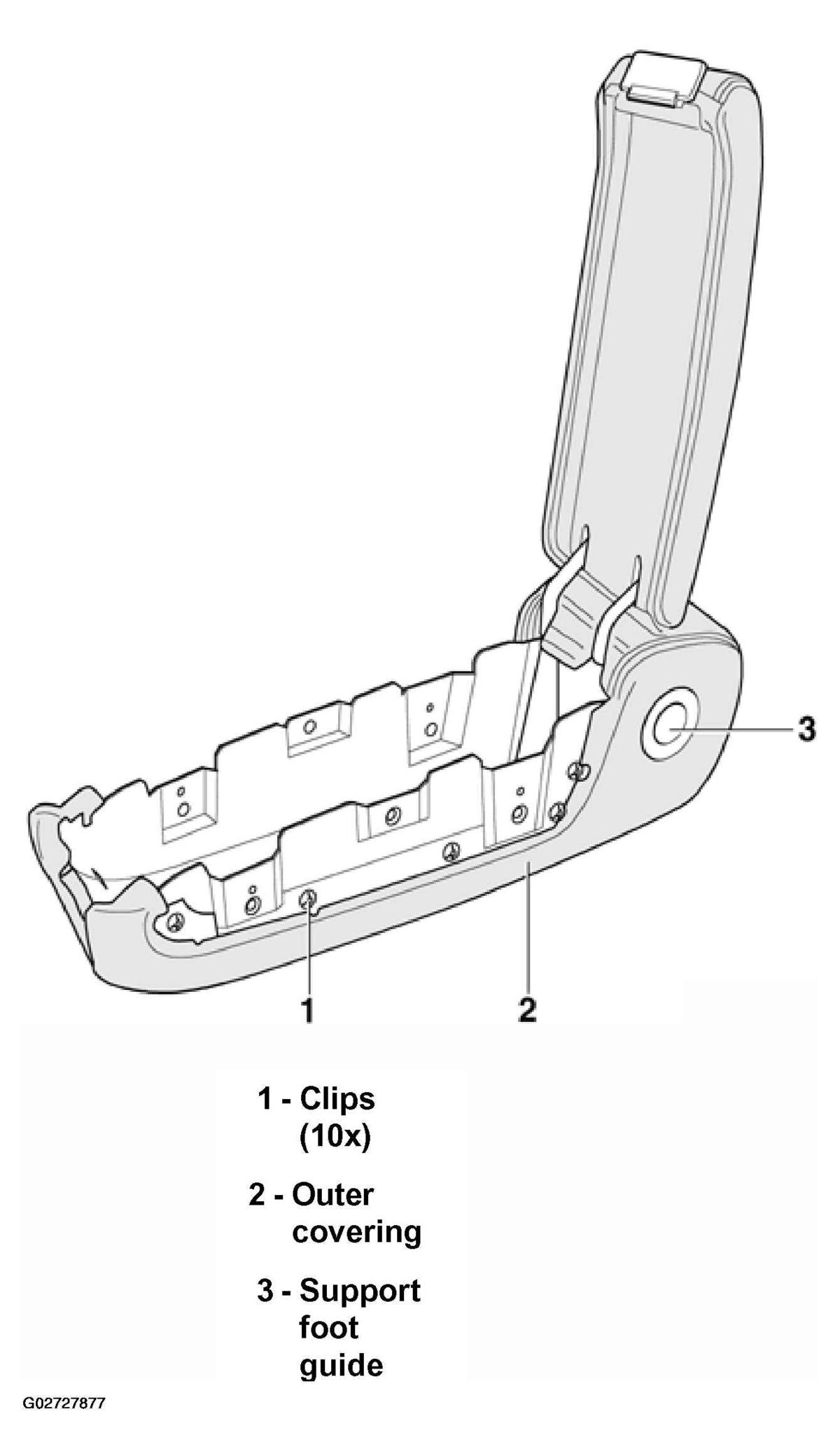

The following list refers to Fig 1.
- Clips (10x)
- Outer covering
- Support foot guide
- Installing:NOTE: After fitting the outer covering to the bottom section, carefully smooth away the folds in the leather with a heat gun.
- Installing:
