Center armrest with clip, separating at left and right
NOTE:
Removal procedure for armrest is the same for left and right sides.
NOTE:

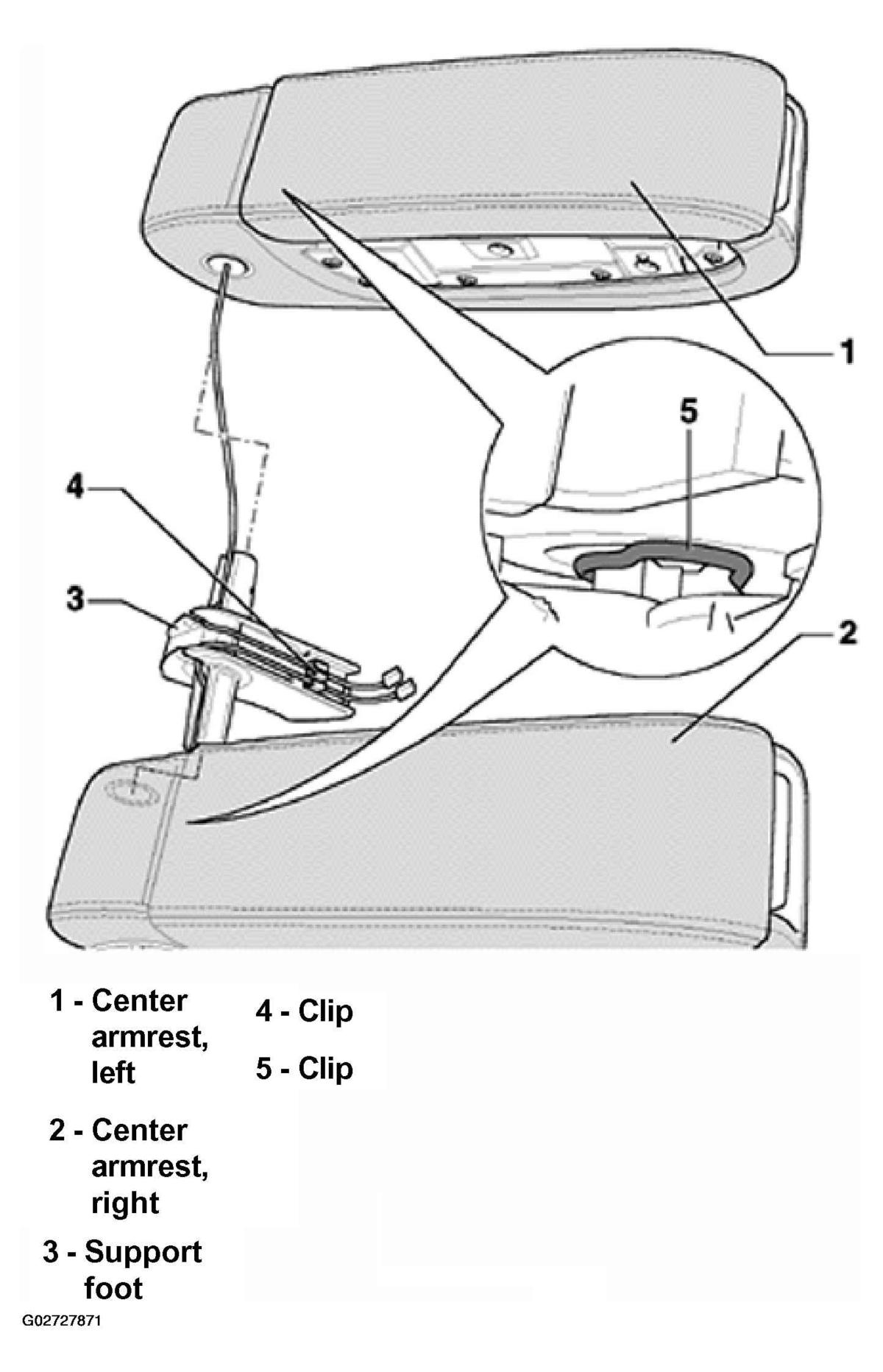

The following list refers to Fig 1.
- Center armrest, left
- Center armrest, right
- Remove armrest. See CENTER ARMREST (FROM 10.98 ON) .
- Remove storage compartment at left and/or right. See CENTER ARMREST STORAGE COMPARTMENT, REMOVING AND INSTALLING .
- Fold left -1- and right -2- center armrest upward.
- Remove clip -5-.
- Unclip cable -4-.
- Refit center armrests to allow for the subsequent operations.
- Fold armrest to be removed up to 75° latched position.
- Remove center armrest from support foot -3-.
- Support foot
- Clip
- Clip
- 2x
