Center armrest (from 10.98 on)
>>
Center armrest trim plate, removing and installing
Center armrest trim plate, removing and installing
Using flathead screwdriver against pin -2- (6x left and right) lift out inner and outer trim plate beginning at rear.
Remove trim plate -1-.

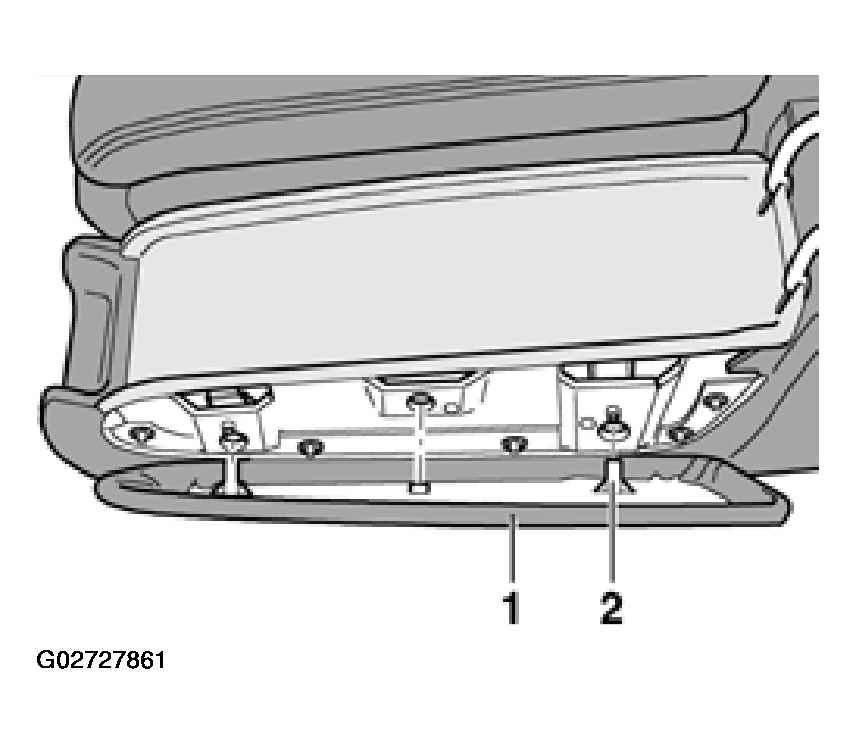

Fig 1: Identifying Center Armrest Trim Plate (From 10.98 On)
Courtesy of AUDI OF AMERICA, INC.
