Center armrest telephone cable routing, installation

NOTE: The following list refers to Fig 1.
  1. Connector
    • First connect connector.
    • Then engage clip.
  2. Cable
  3. Clip
    • Clip telephone cable into clip at 10th coil (+/- 2 coils)

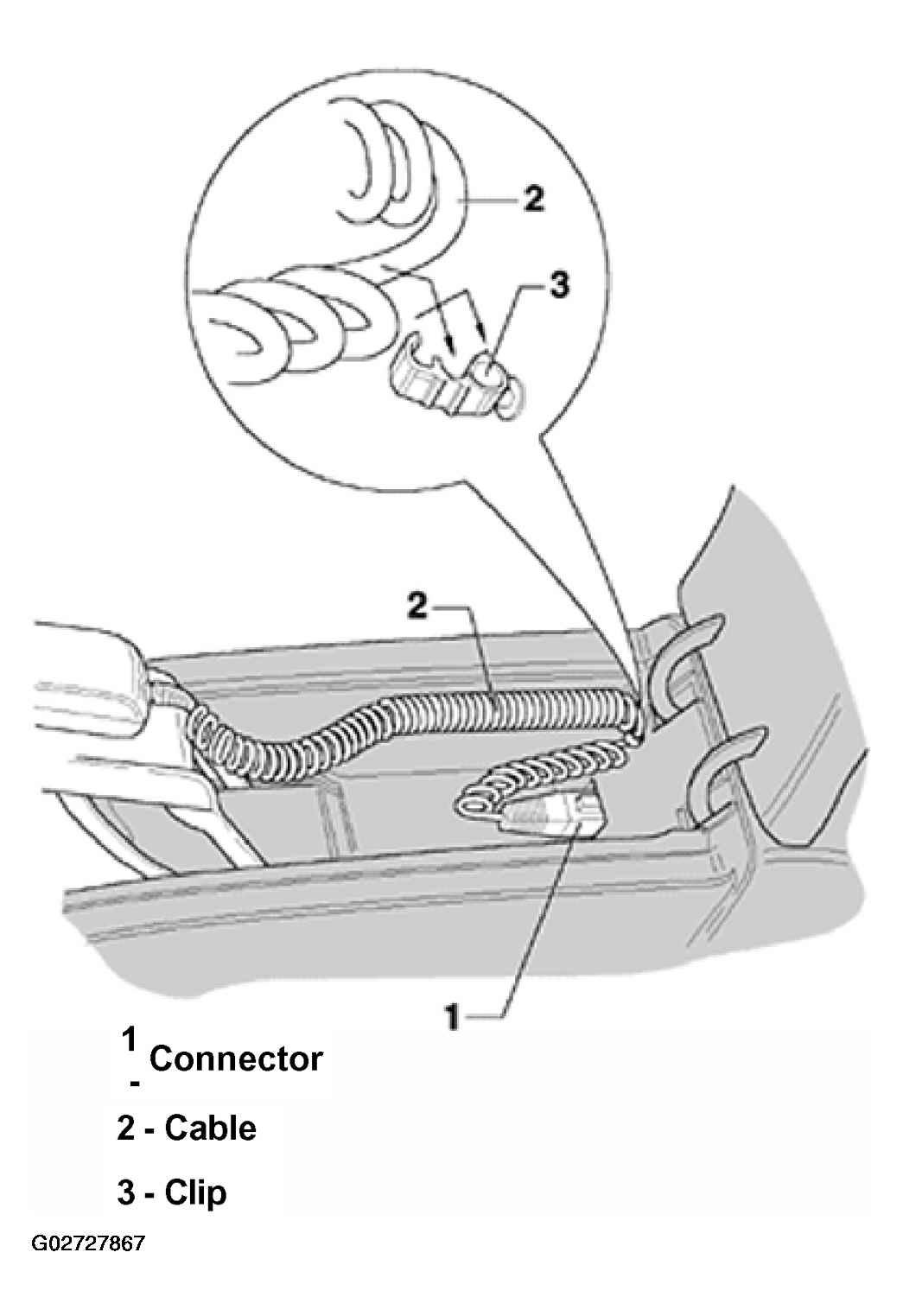

    4. Fig 1: Identifying Center Armrest Telephone Cable Routing (From 10.98 On)
    G02727867Courtesy of AUDI OF AMERICA, INC.
