Center armrest lift, removing and installing

Installing:
- Remove left/righthand trim pieces from center armrest. See CENTER ARMREST TRIM PLATE, REMOVING AND INSTALLING .
- Remove storage compartment. See CENTER ARMREST STORAGE COMPARTMENT, REMOVING AND INSTALLING .

NOTE: The following list refers to Fig 1.

Storage compartment
Arm for lift
- 4x
  - Remove storage compartment. See CENTER ARMREST STORAGE COMPARTMENT, REMOVING AND INSTALLING .
  - Press pins -3- through and counter hold arm for lift -2-.
Pin
- 2x
Lift release
Spring

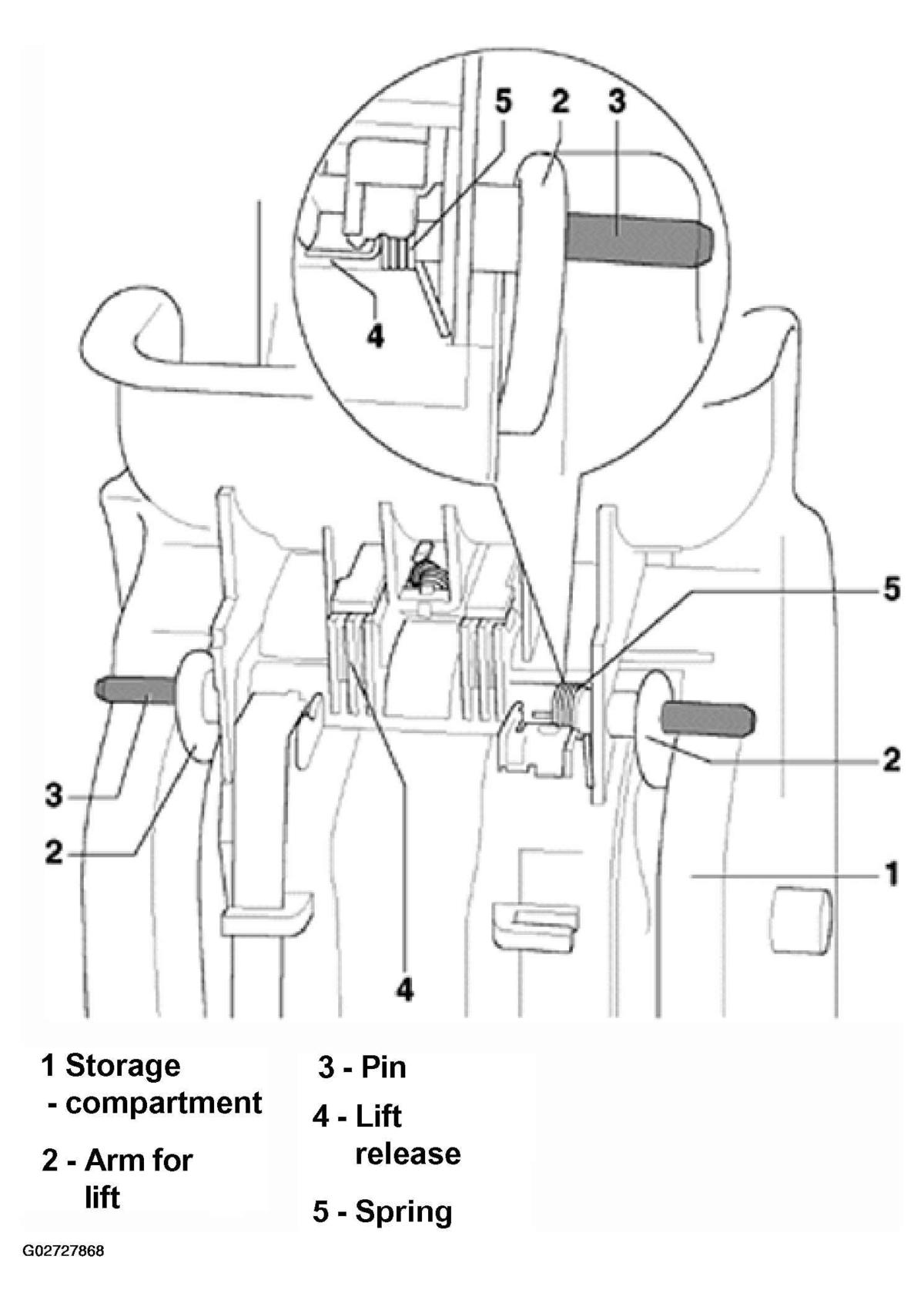

Fig 1: Identifying Center Armrest Lift Components (From 10.98 On)

Courtesy of AUDI OF AMERICA, INC.
