Proper disposal of gas-filled strut

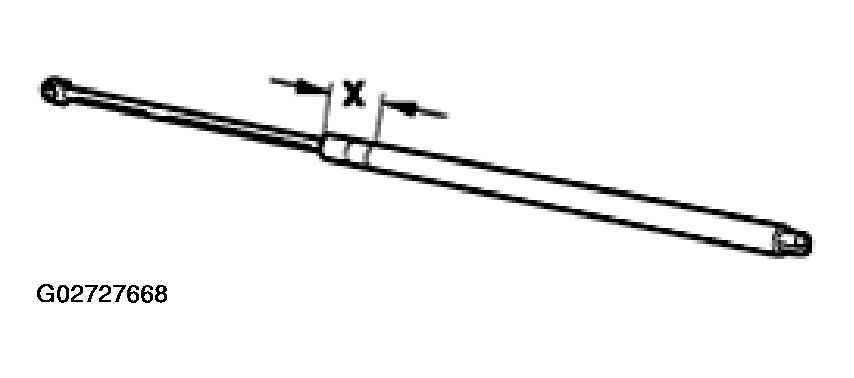

- Clamp gas-filled strut in vice in area -x-.
Dimension -x- = 50 mm (2 in.)
CAUTION: The gas-filled strut must be clamped only in designated area -x-, otherwise there is the danger of an accident! - Using saw, cut into cylindrical part of strut at point within first third of cylinder's length (measured from cover edge at piston rod end of cylinder).
NOTE:
- Always wear eye protection when performing this procedure.
- Cover the sawing area with a clean rag to contain any escaping fluid.
