Adjusting stopper

With rear lid closed, stopper -1- must rest against mating piece -2- with light pressure.

NOTE: The stop buffers cannot be used for adjusting the height of the rear lid -4-.

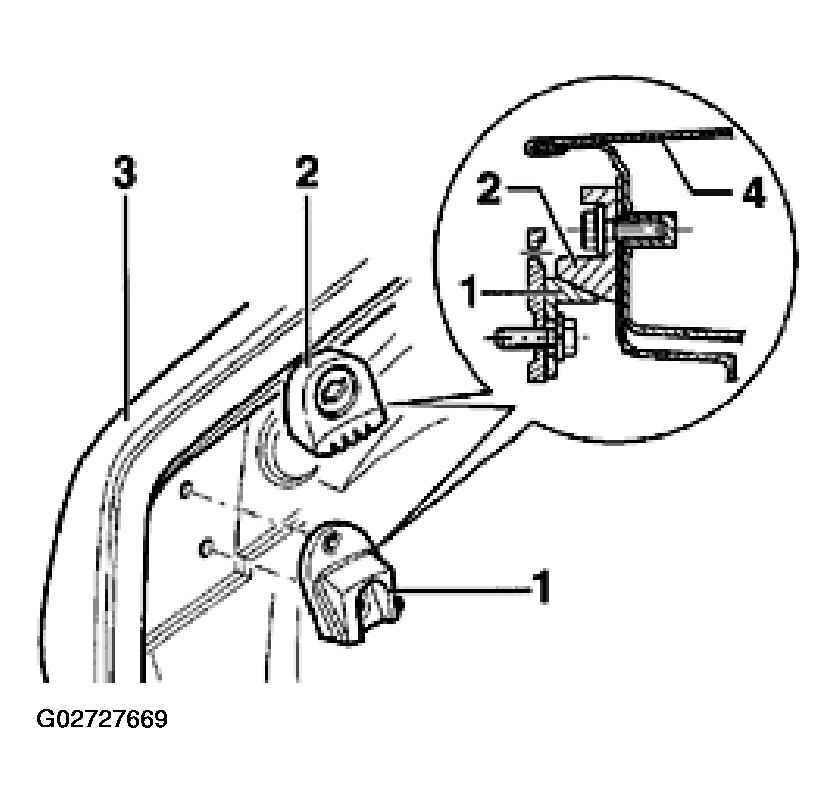

Fig 1: Adjusting Rear Lid Stopper
G02727669Courtesy of AUDI OF AMERICA, INC.
