Adjusting lock for rear lid

• Engage rear lid lock -1-.
• Secure lock in place with assembly drift -4- (e.g. 6 mm diameter drill bit).
• Attach operating rod -3- at lock cylinder and at rear lid lock so there is no tension.
• Install threaded coupling -2-.
• Remove drift -4- from lock.
• Release (open) lock -1-.

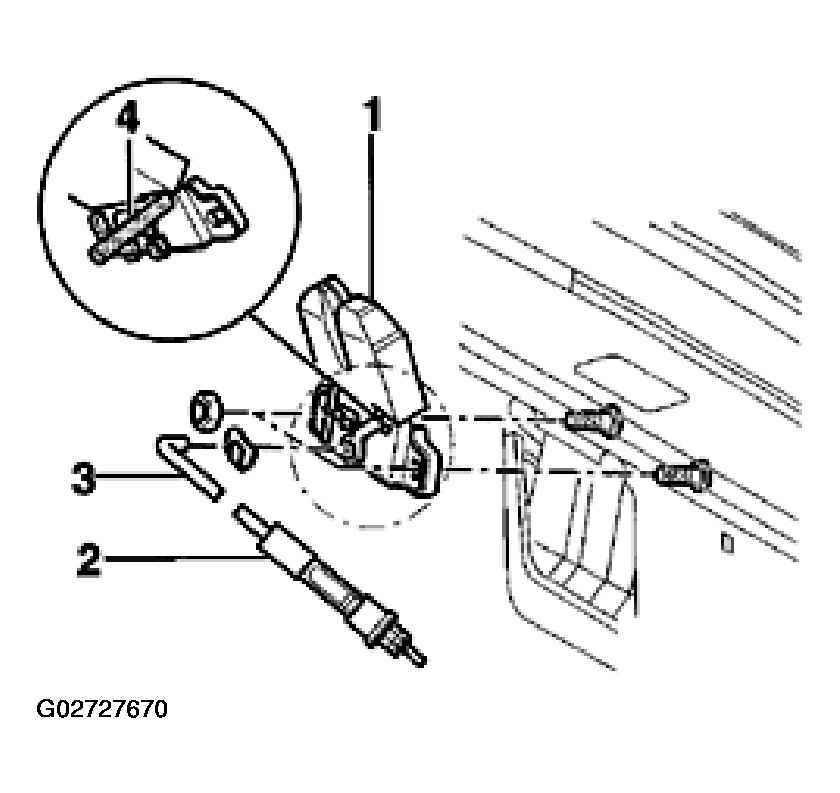

Fig 1: Adjusting Lock For Rear Lid
Courtesy of AUDI OF AMERICA, INC.

Free play (lengthwise) between lock and lock cylinder: max. 2 mm (5/64 in.)
