Radiator grille, removing and installing

Turn twist locks -4- 180° (1/2 turn).
Remove radiator grill -2-.
NOTE: Guide plates -3- are installed into hood -1-.

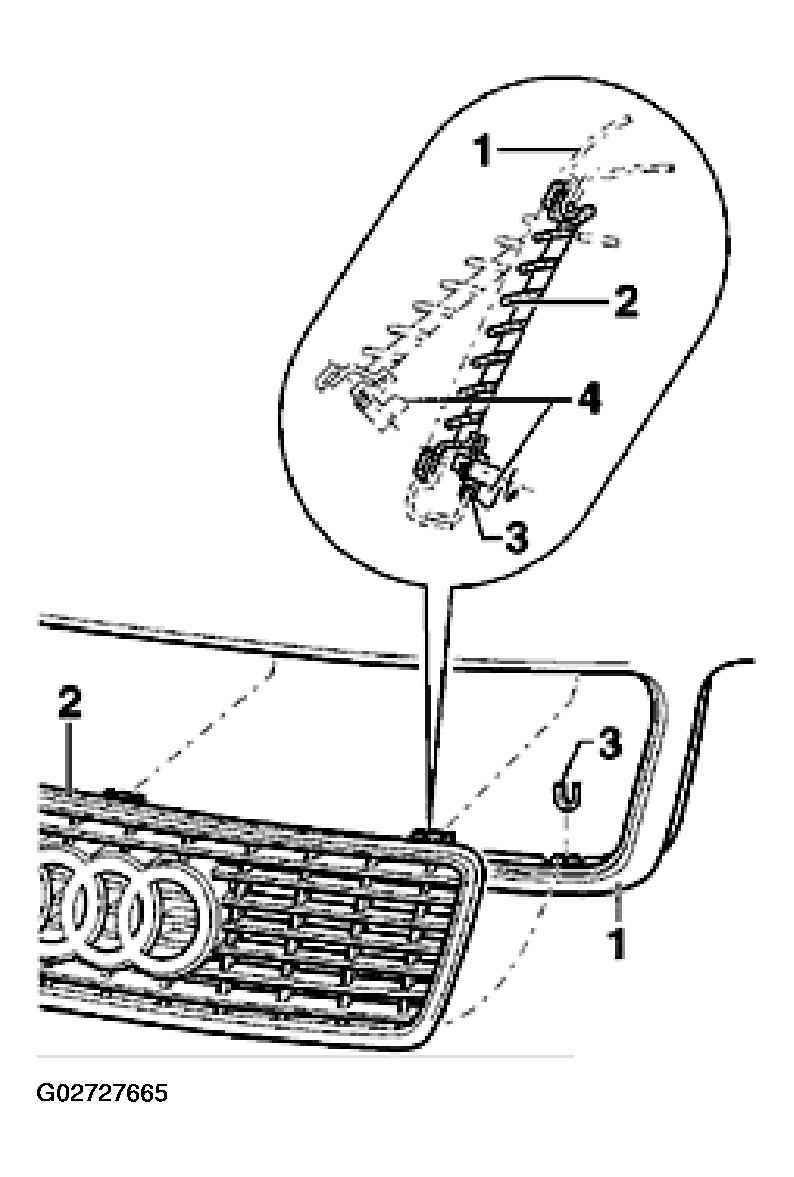

Fig 1: Removing/Installing Radiator Grill

G02727665

Courtesy of AUDI OF AMERICA, INC.
