Hood, adjusting

Special tools and equipment

3371 adjustment gauge

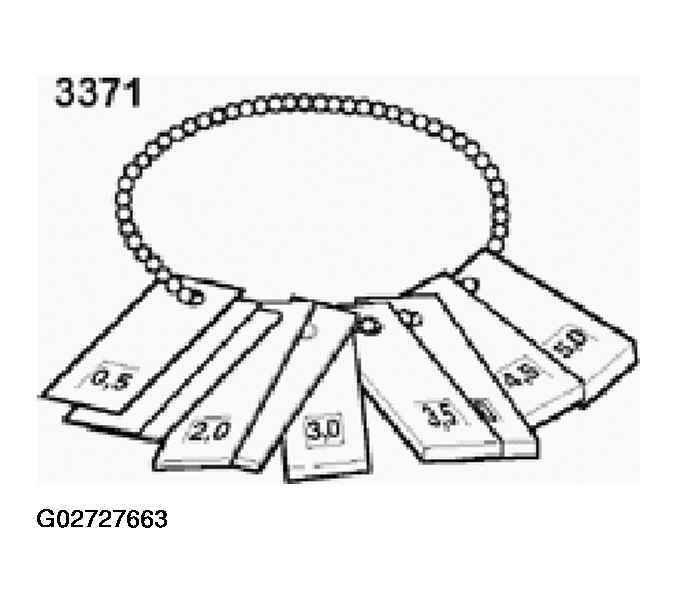

Fig 1: Identifying Special Tool 3371 Adjustment Gauge

Courtesy of AUDI OF AMERICA, INC.

• Adjust gaps at left and right-front of hood to same dimensions.

Dimension -a- = 3.5 mm

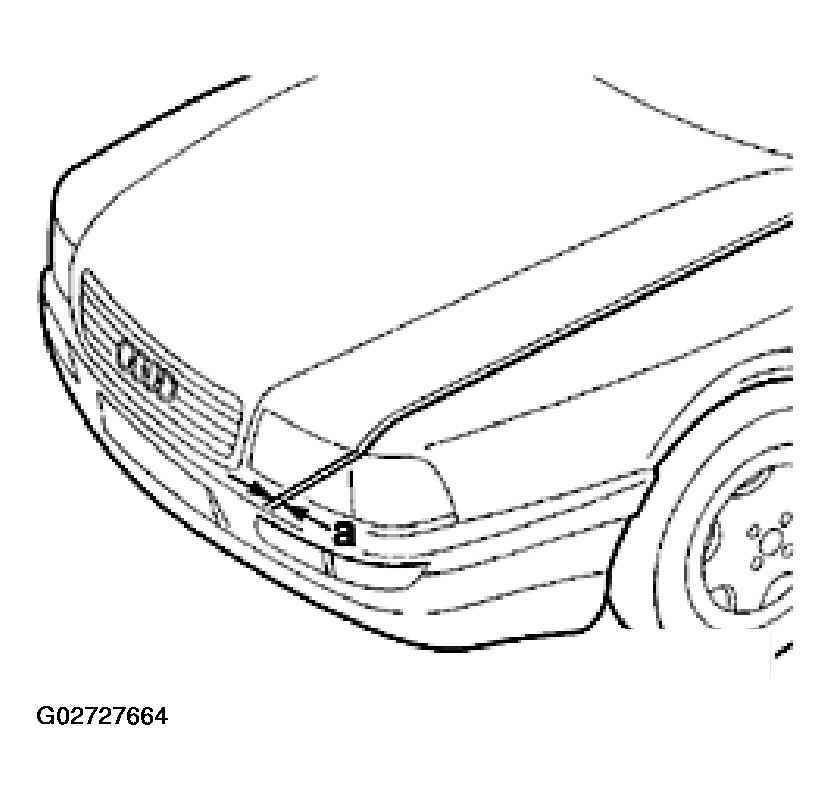

Fig 2: Identifying Hood Gap Dimension -a-

Courtesy of AUDI OF AMERICA, INC.
