Rear bumper, removing and installing
- Remove undercar aerodynamic cover. See UNDERCAR AERODYNAMIC COVERS, REMOVING AND INSTALLING .
- For vehicles with parking assistance, remove harness connectors for parking assistance at sensors.

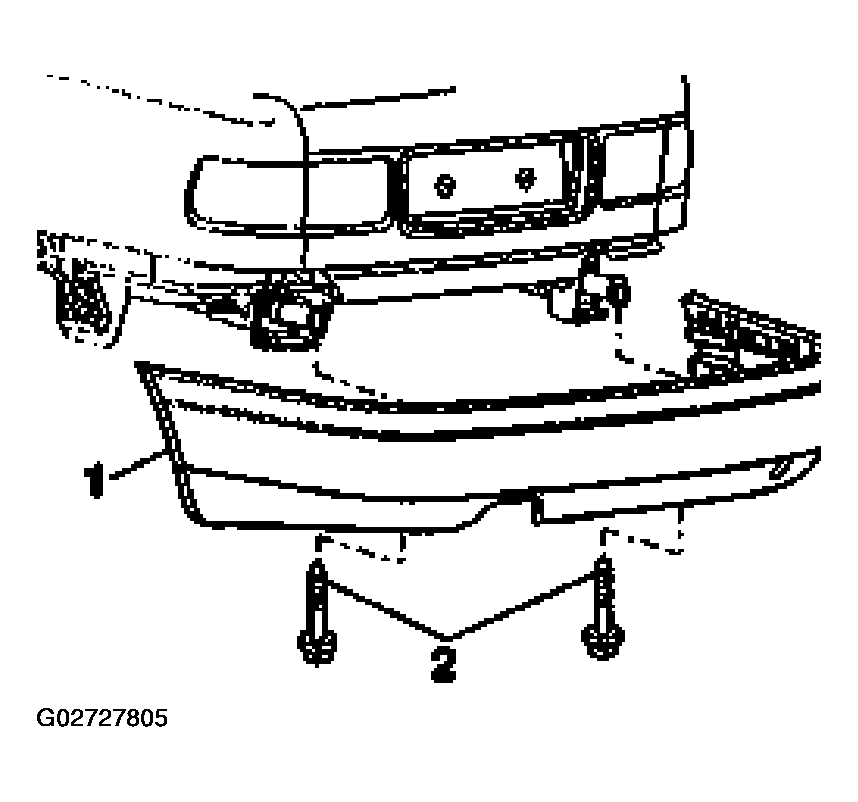

- Remove bolts -2-. See Fig 1.
- Remove bumper -1- toward rear.
