Adjusting height at impact absorber
Adjusting height at impact absorber
Middle underbody cover removed.
Remove bolts -2-.

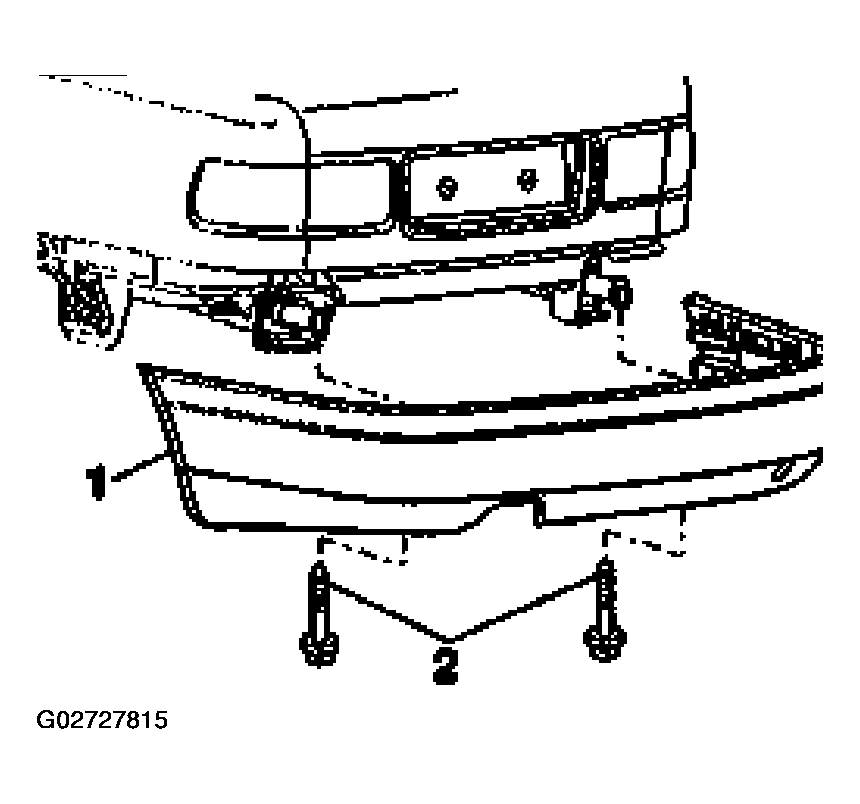

Fig 1: Locating Rear Bumper Bolts (M.Y. 1999 & Up)
Courtesy of AUDI OF AMERICA, INC.
Insert hex socket wrench -5- into threaded sleeve -2-.
Adjust threaded sleeve -2- up or down in impact absorber -3-.

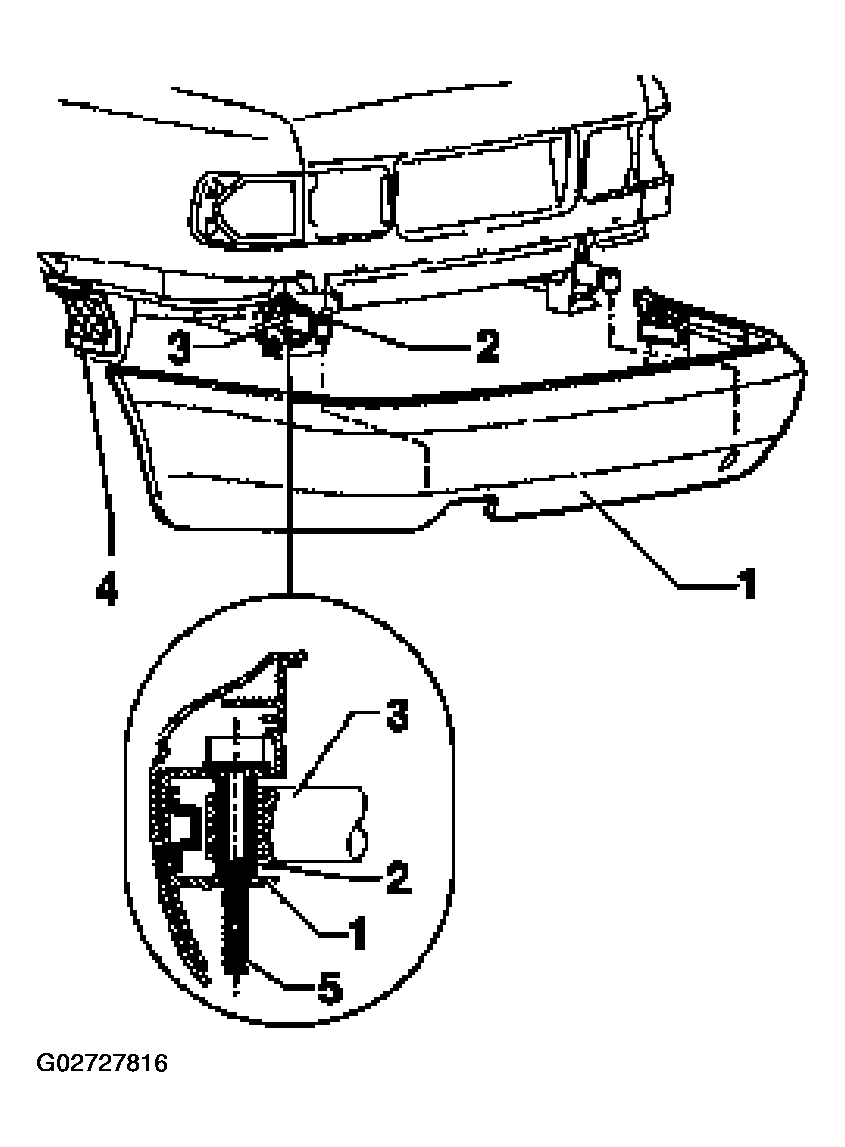

Fig 2: Adjusting Threaded Sleeve Up Or Down In Impact Absorber (M.Y. 1999 & Up)
Courtesy of AUDI OF AMERICA, INC.
