Front bumper (up to m.y. 1999)
>>
Front bumper, adjusting
>>
Adjusting at impact absorbers
Adjusting at impact absorbers
Unclip air inlet grill on left and right sides.
Remove bolts -1-.

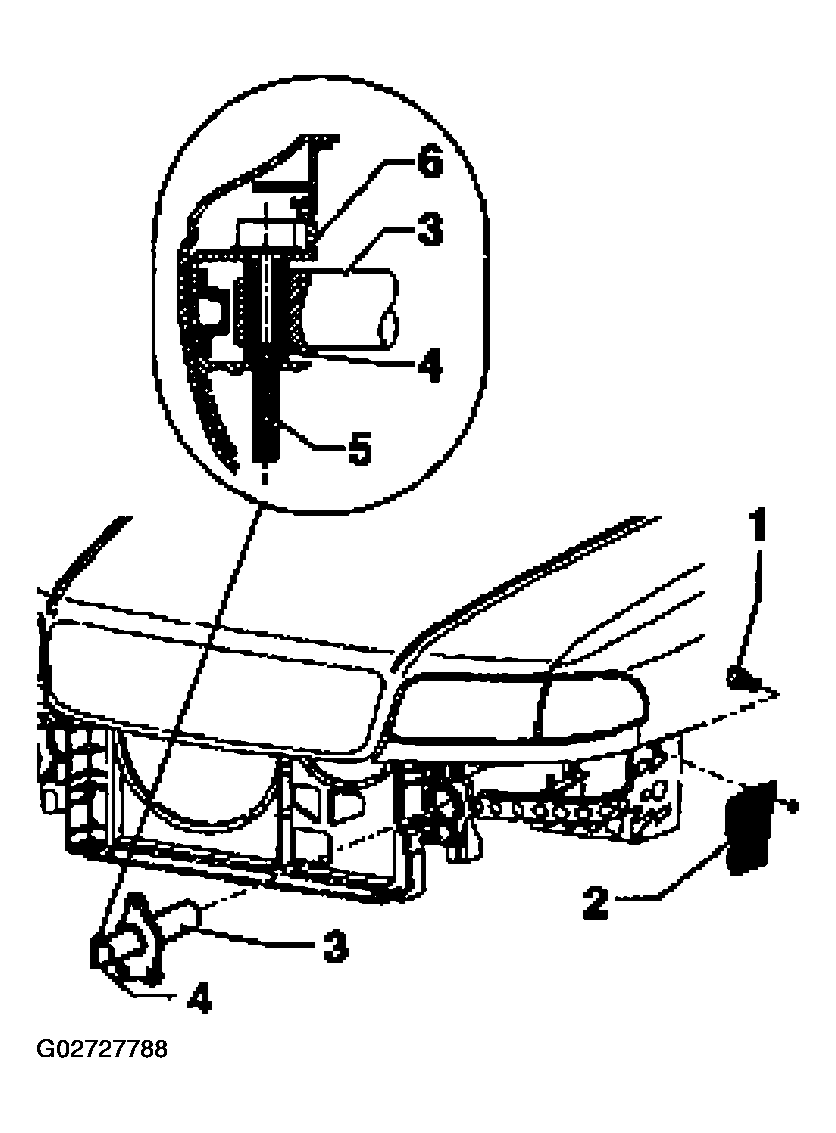

Fig 1: Removing Front Bumper Bolts (Up To M.Y. 1999)
Courtesy of AUDI OF AMERICA, INC.
Insert hex wrench -5- into threaded sleeve -4- through opening for air inlet grill.
Adjust threaded sleeve -4- up or down in impact absorber -3-.

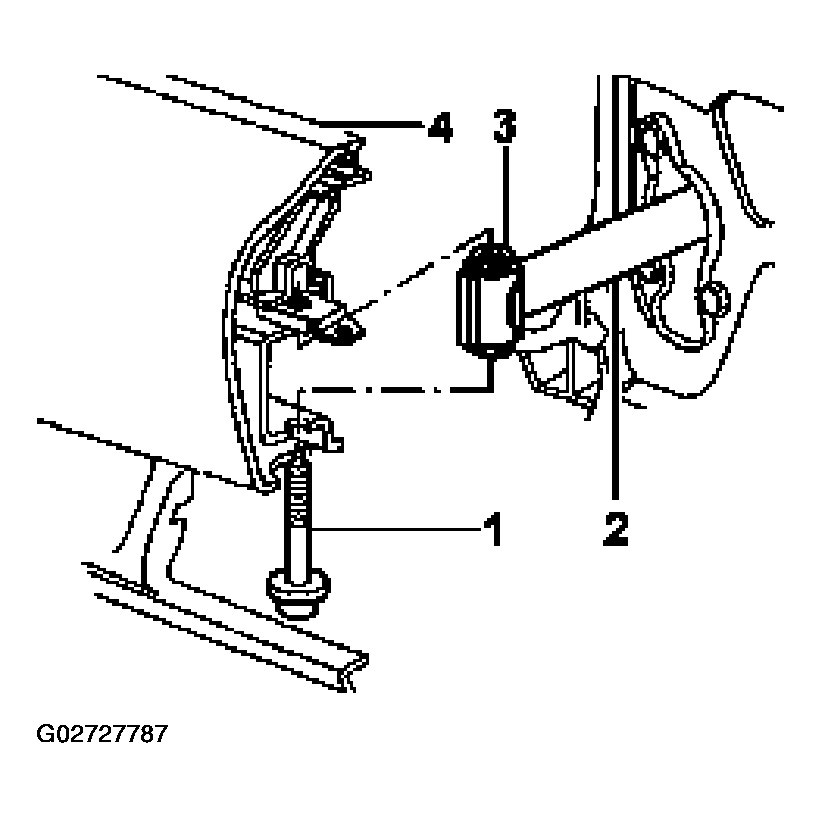

Fig 2: Adjusting Front Bumper Threaded Sleeve Up Or Down In Impact Absorber (Up To M.Y. 1999)
Courtesy of AUDI OF AMERICA, INC.
