Adjusting height at impact absorber
Adjusting height at impact absorber
Unclip air inlet grill at left and right.
Remove bolts -1-.

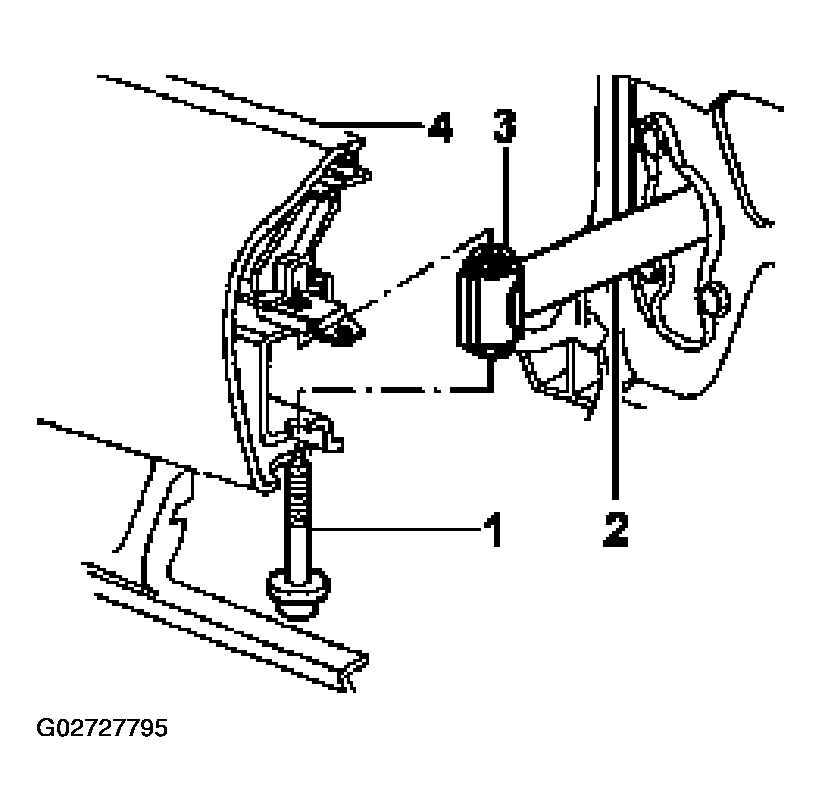

Fig 1: Removing Bolts (M.Y. 1999 & Up)
Courtesy of AUDI OF AMERICA, INC.
Insert hex socket wrench -5- into threaded sleeve -4- through opening for air inlet grill.
Adjust threaded sleeve -4- up or down in impact absorber -3-.

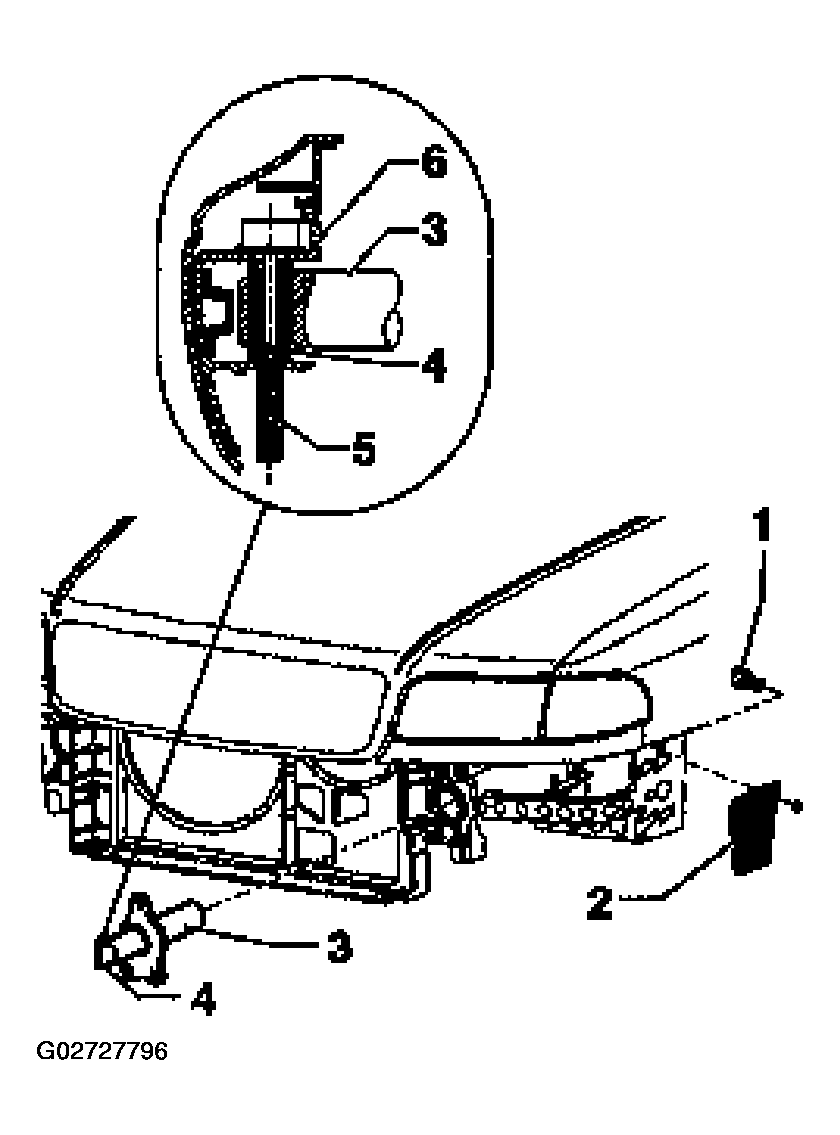

Fig 2: Adjusting Threaded Sleeve Up Or Down In Impact Absorber (M.Y. 1999 & Up)
Courtesy of AUDI OF AMERICA, INC.
