Front door handle, removing and installing: Notes
- Front door trim removed
- Door component carrier removed. See DOOR SHELL AND DOOR COMPONENT CARRIER, REMOVING AND INSTALLING .
NOTE:

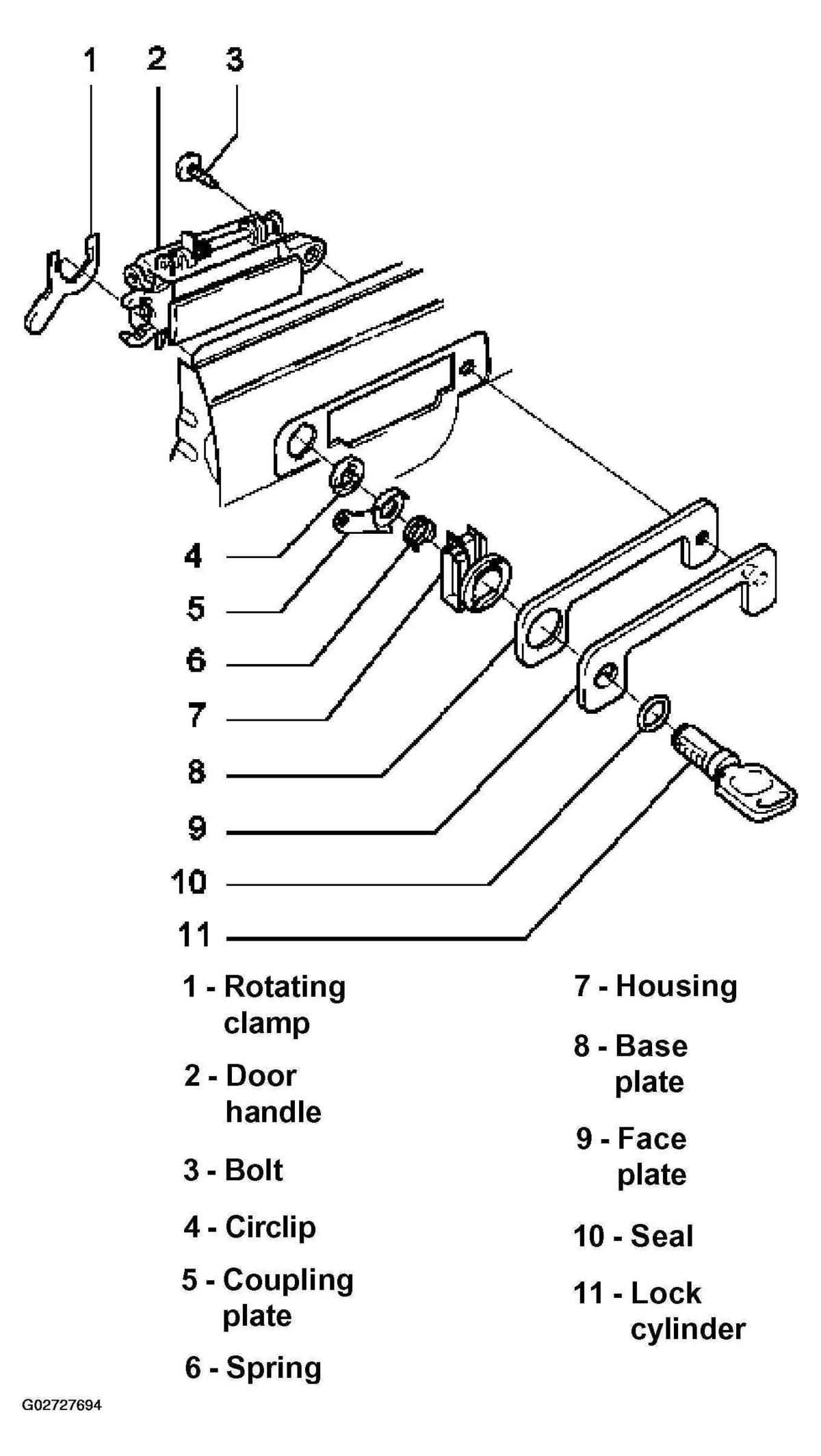

The following list refers to Fig 1
.
- Rotating clamp
- To remove, swivel toward rear of car.
- Door handle
Removing:
- Remove face plate for door handle to avoid paint damage. See REMOVING TRIM PANEL FOR DOOR HANDLE .
- Remove rotating clamp -1- and unscrew combination bolt -3-.
- Bolt
- 5 Nm (44 in. lb)
- Circlip
- For external profile keys
- Clip: for internal profile keys
- Coupling plate
- Installation position. See INSTALLED POSITION OF COUPLING PLATE .
- For internal profile keys, do not replace individually
- Spring
- Not individually replaceable
- Installation position. See INSTALLED POSITION OF SPRING .
- Housing
- To remove, disassemble door handle -2- and lock cylinder -11-
- Base plate
- Face plate
- Seal
- Lock cylinder
- For internal profile keys, do not replace individually
- Only remove with key inserted
- Pry circlip -4- from groove of lock cylinder.
- Pull out coupling plate -5- together with spring -6-.
- Pull out lock cylinder using key.
