Front door lock operating rods, removing and installing: Notes

NOTE: The following list refers to Fig 1 .

Securing rod-lock cylinder
- Installing. See REMOVING AND INSTALLING SECURING ROD FOR LOCK CYLINDER .
Door lock
Door handle
- When removing door handle, securing rod -1- and operating rod -5- must be disengaged at door handle
Operating rod
- To remove, unclip at door lock
Operating clip
- Installing. See REMOVING AND INSTALLING SECURING ROD FOR LOCK CYLINDER .

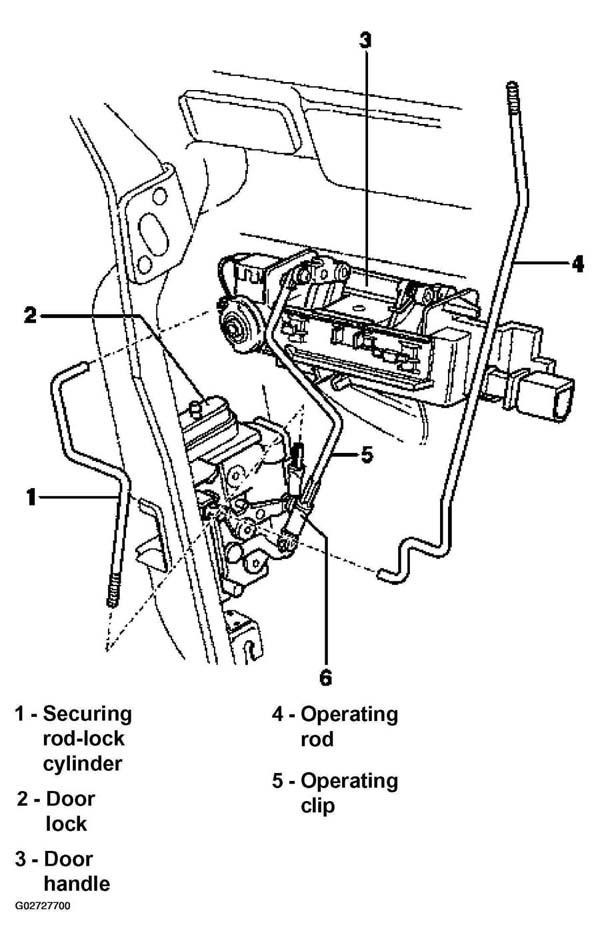

Fig 1: Identifying Front Door Lock Operating Rods Components

Courtesy of AUDI OF AMERICA, INC.
