DTC table; DTCs 01435 to 01542

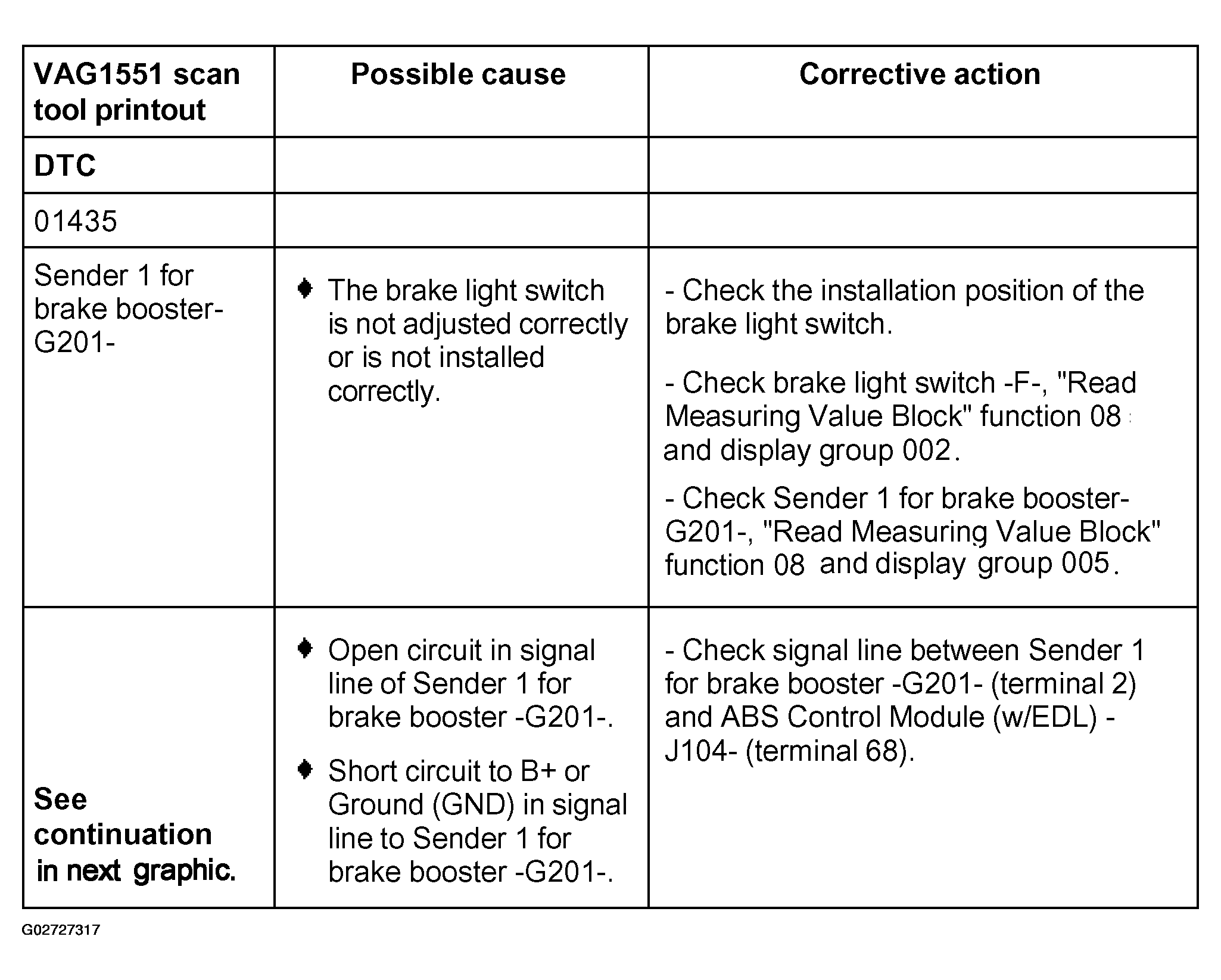

Fig 1: DTC 01435 - Bosch 5.3, With ESP (1 Of 7)

G02727317

Courtesy of AUDI OF AMERICA, INC.

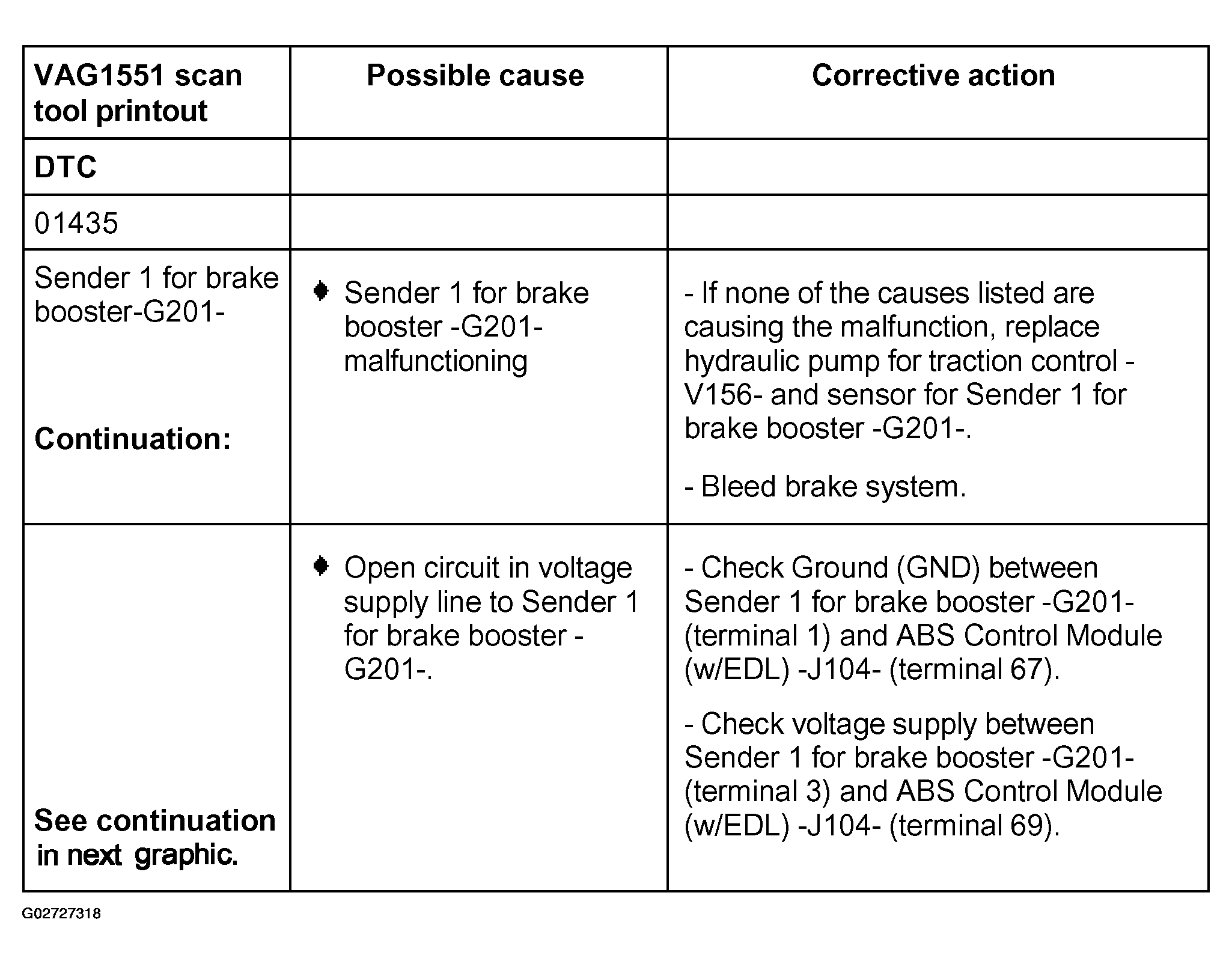

Fig 2: DTC 01435 - Bosch 5.3, With ESP (2 Of 7)

G02727318

Courtesy of AUDI OF AMERICA, INC.

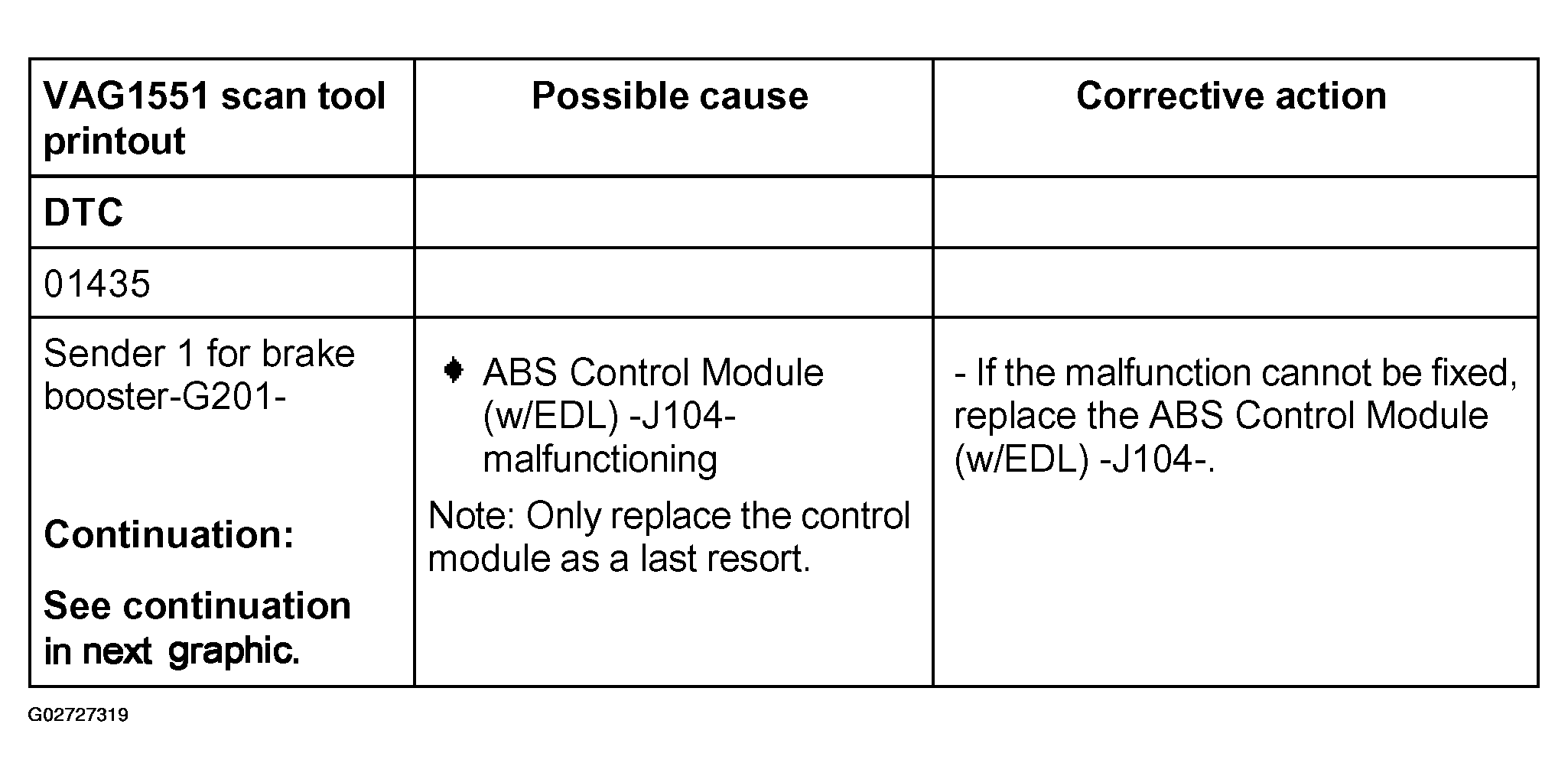

Fig 3: DTC 01435 - Bosch 5.3, With ESP (3 Of 7)

G02727319

Courtesy of AUDI OF AMERICA, INC.

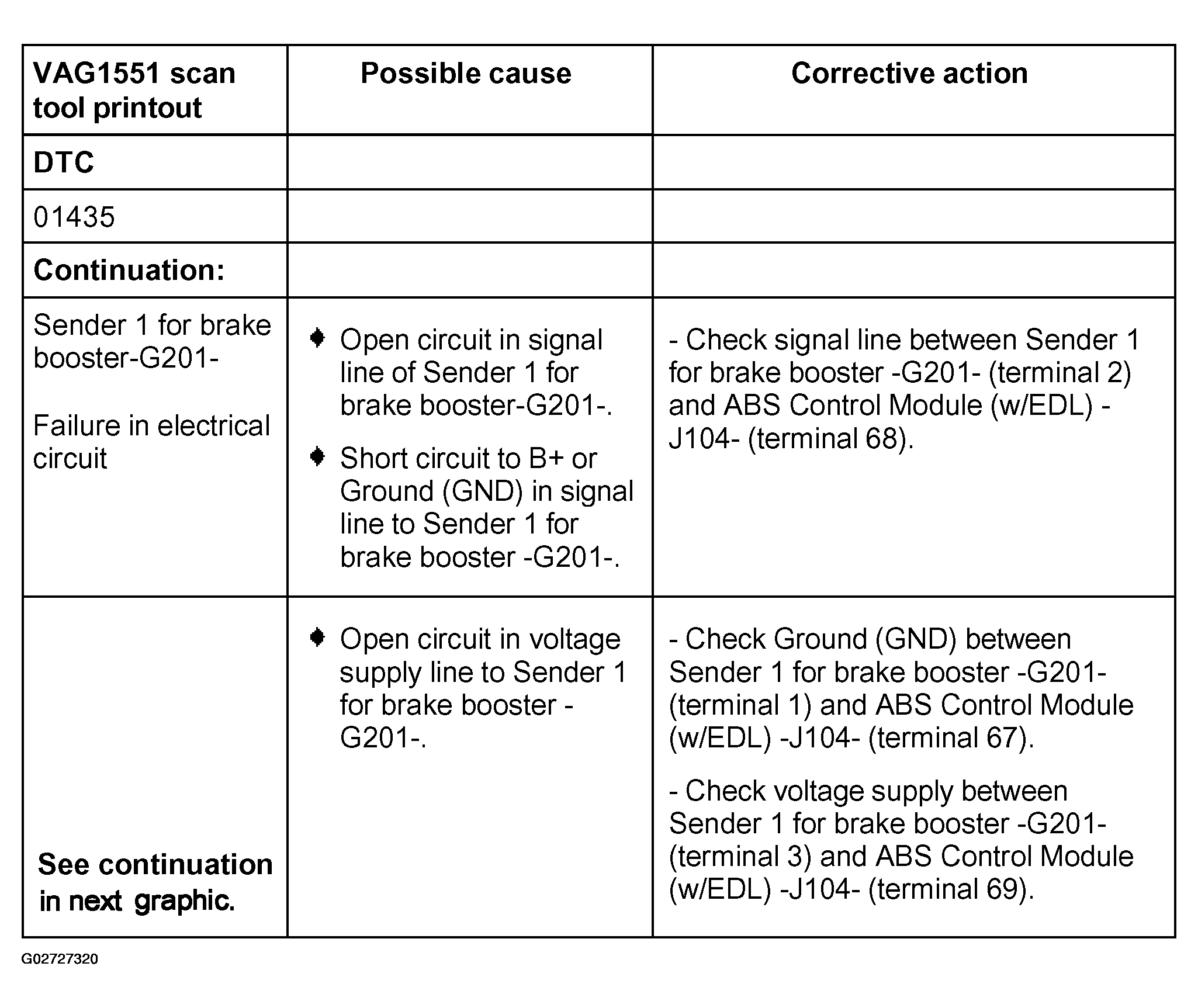

Fig 4: DTC 01435 - Bosch 5.3, With ESP (4 Of 7)

G02727320

Courtesy of AUDI OF AMERICA, INC.

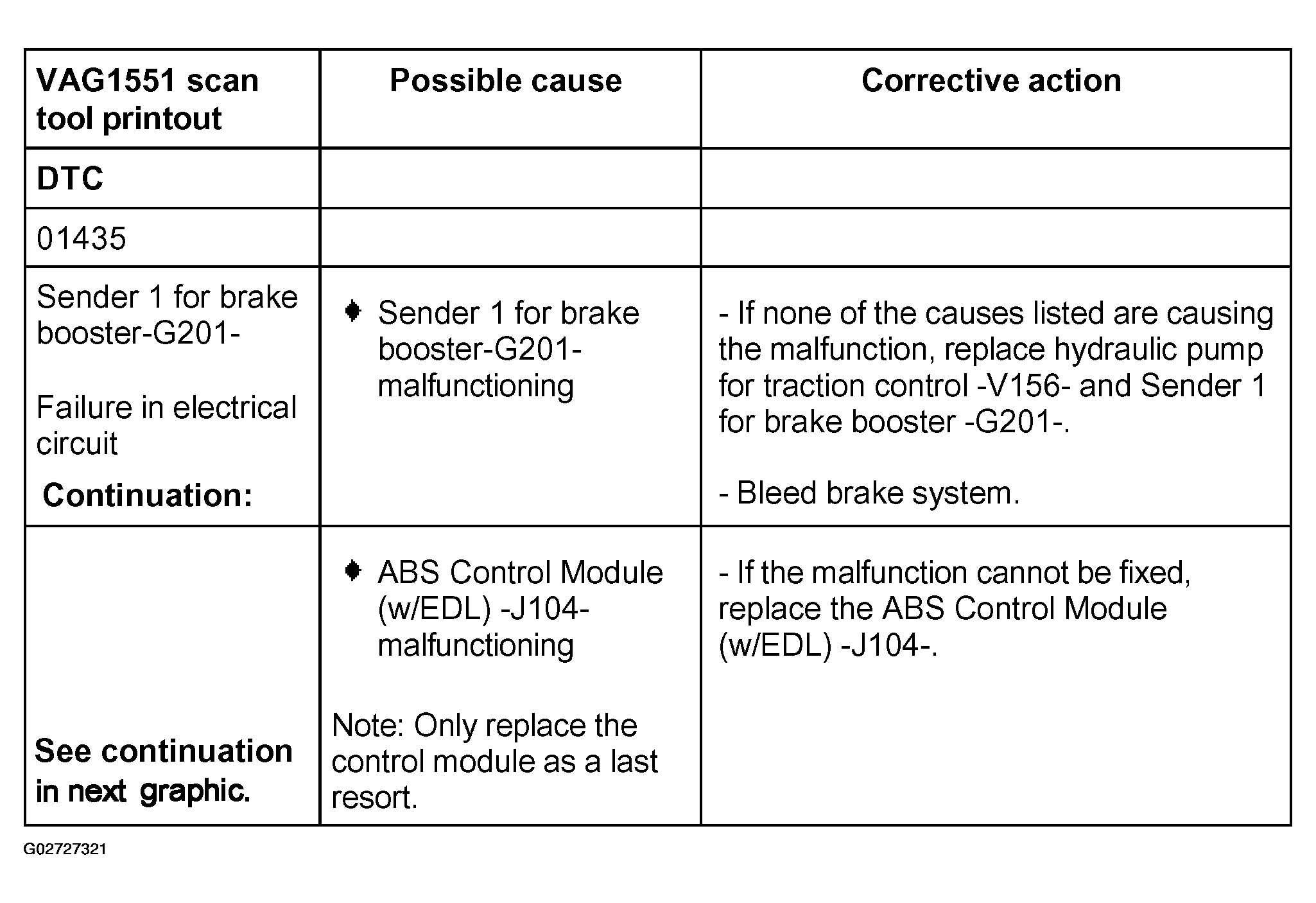

Fig 5: DTC 01435 - Bosch 5.3, With ESP (5 Of 7)

G02727321

Courtesy of AUDI OF AMERICA, INC.

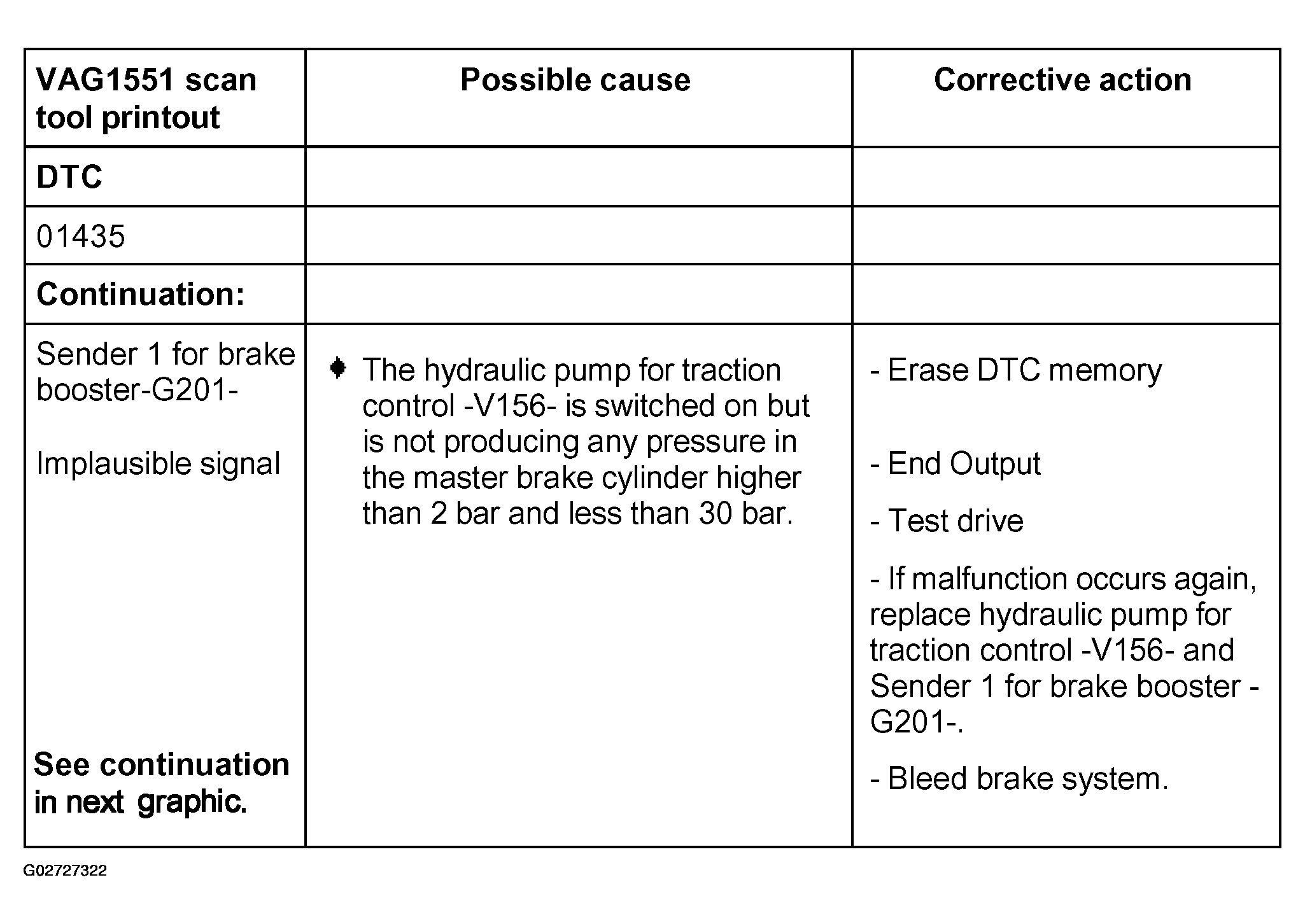

Fig 6: DTC 01435 - Bosch 5.3, With ESP (6 Of 7)

G02727322

Courtesy of AUDI OF AMERICA, INC.

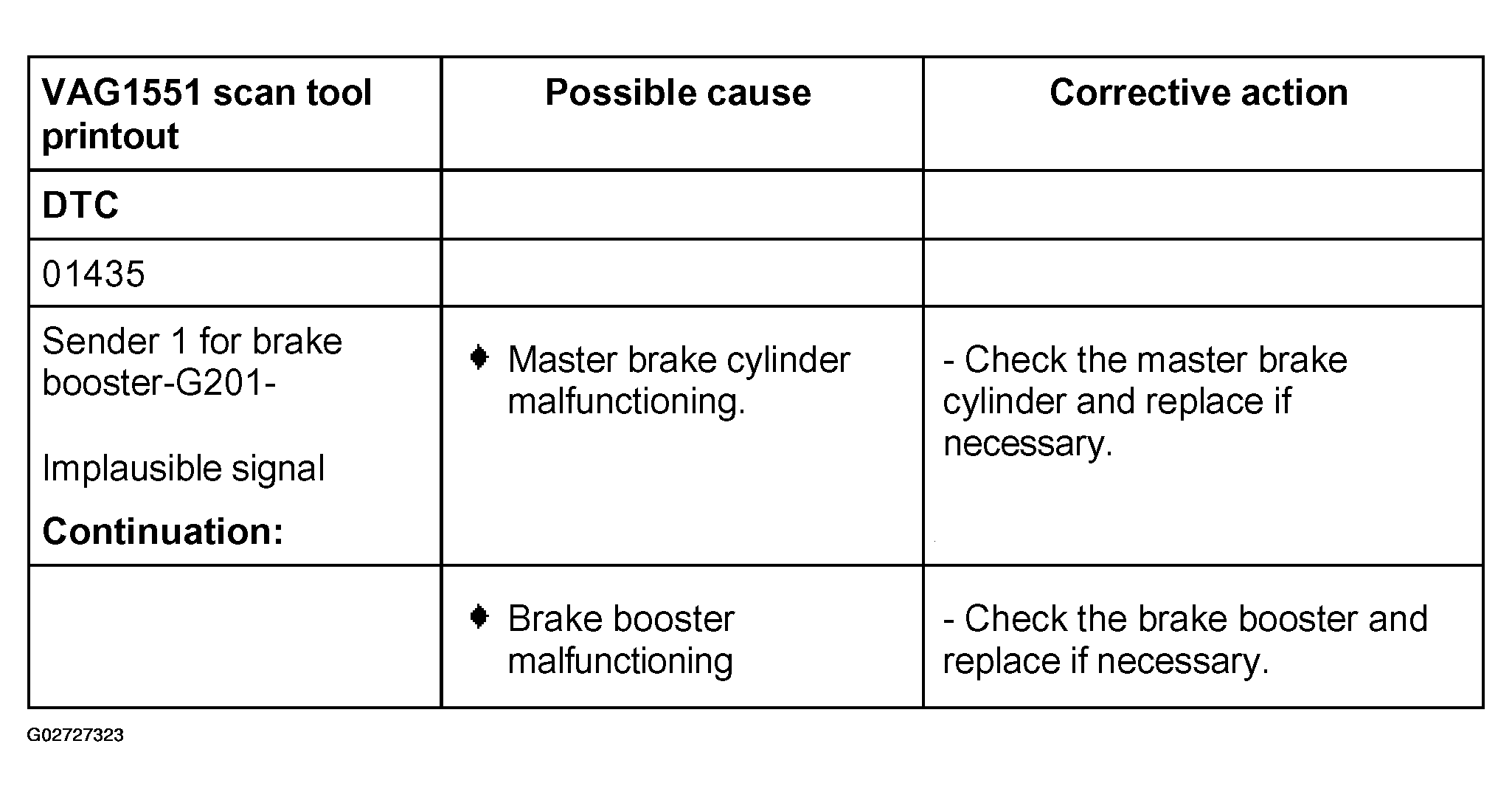

Fig 7: DTC 01435 - Bosch 5.3, With ESP (7 Of 7)

G02727323

Courtesy of AUDI OF AMERICA, INC.

For brake light switch replacement, see BRAKE LIGHT SWITCH, REMOVING AND INSTALLING .
For "read measuring value block" and related information, see MEASURING VALUE BLOCK (SCAN TOOL FUNCTION 08), READING .
To replace hydraulic pump for traction control -V156-, see HYDRAULIC PUMP FOR ELECTRONIC STABILIZATION PROGRAM (ESP), REMOVING AND INSTALLING .
For brake bleeding information, see BLEEDING BRAKE SYSTEM .
To replace ABS Control Module (w/EDL) -J104-, see ABS CONTROL MODULE (W/EDL) -J104-, REMOVING AND INSTALLING .
To erase DTC memory, see ERASE DTC MEMORY .
For End Output, see END OUTPUT .
For test drive information, see TEST DRIVE .

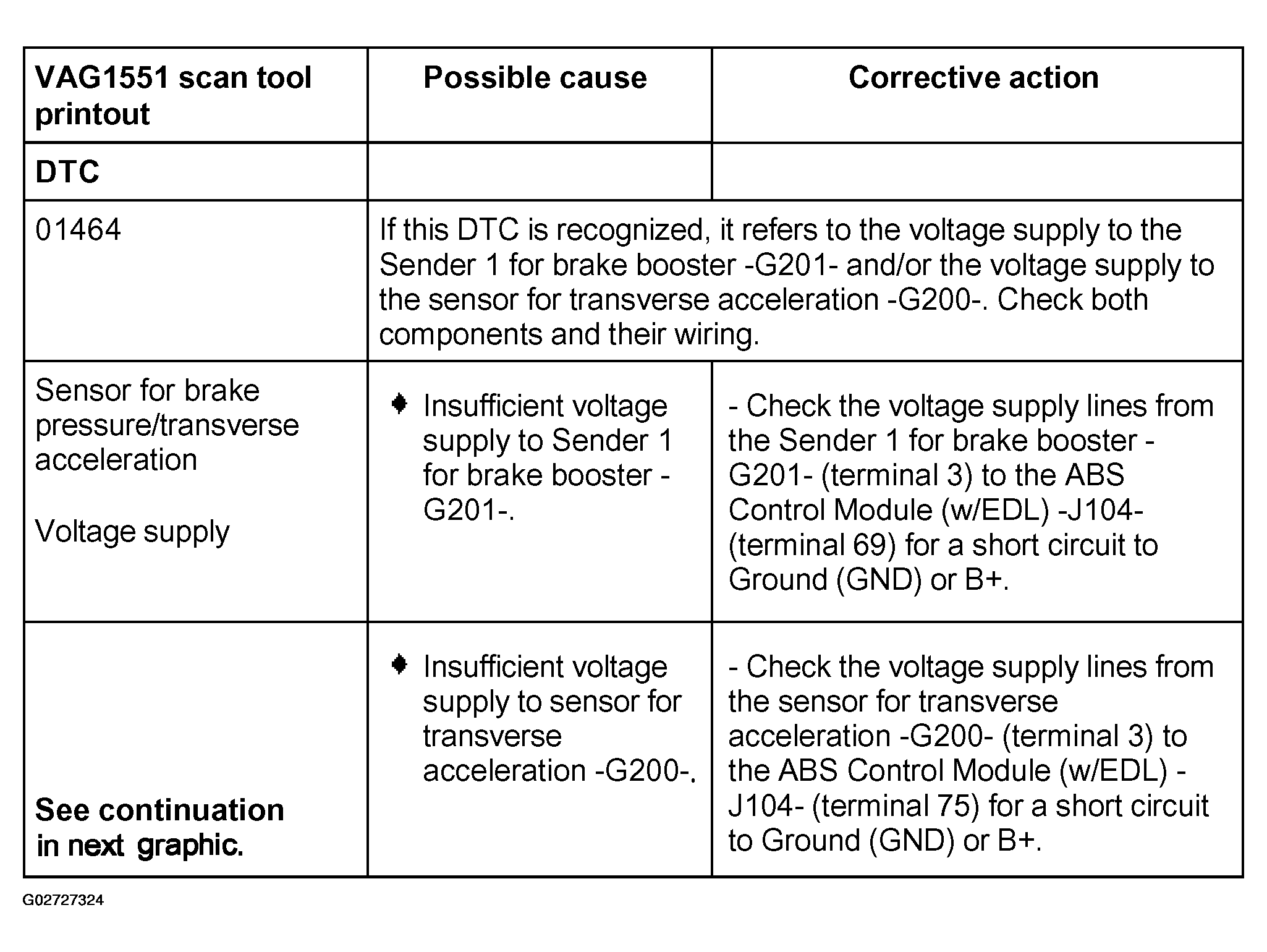

Fig 8: DTC 01464 - Bosch 5.3, With ESP (1 Of 2)

G02727324

Courtesy of AUDI OF AMERICA, INC.

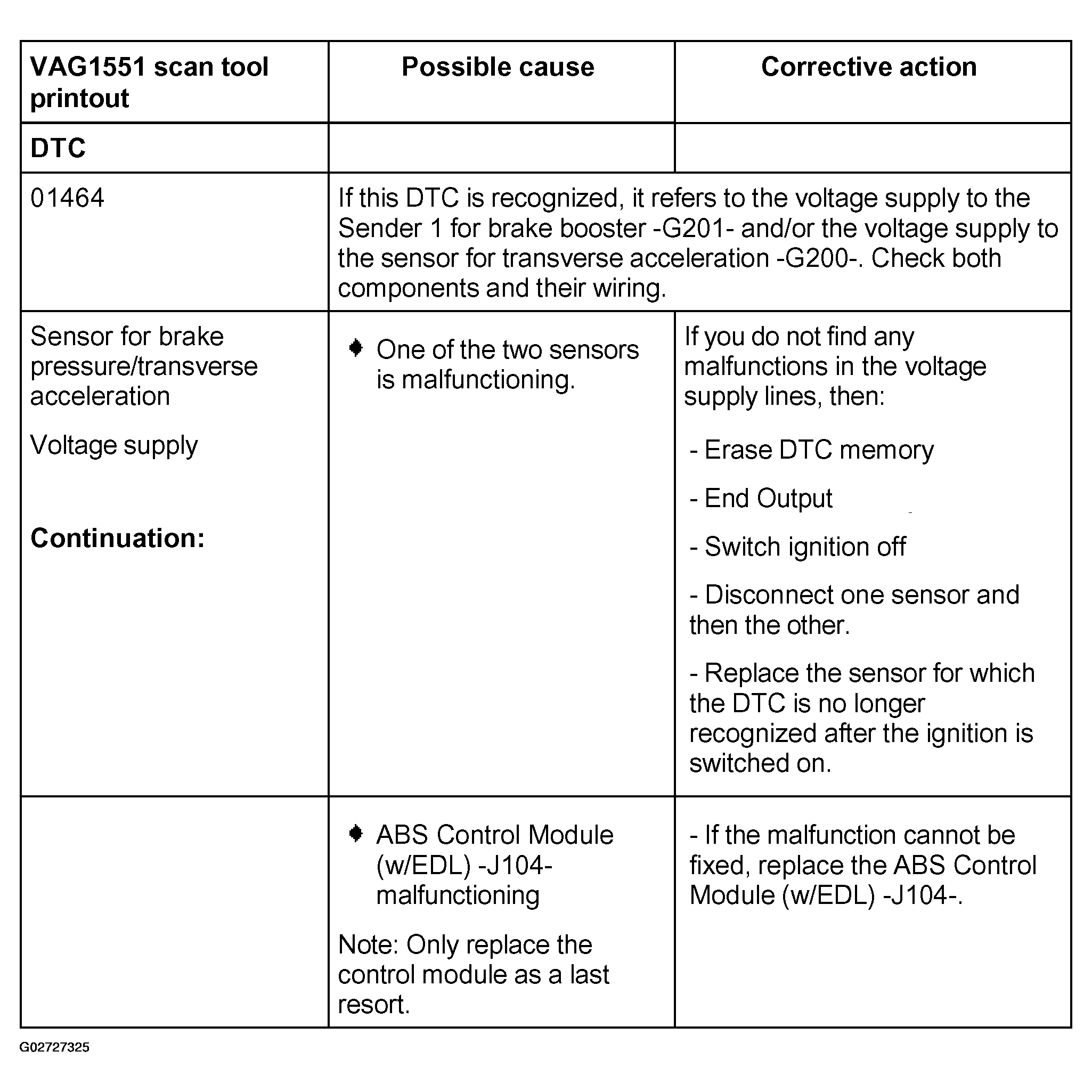

Fig 9: DTC 01464 - Bosch 5.3, With ESP (2 Of 2)

G02727325

Courtesy of AUDI OF AMERICA, INC.

To erase DTC memory, see ERASE DTC MEMORY .
For End Output, see END OUTPUT .
For test drive information, see TEST DRIVE .
To replace ABS Control Module (w/EDL) -J104-, see ABS CONTROL MODULE (W/EDL) -J104-, REMOVING AND INSTALLING .

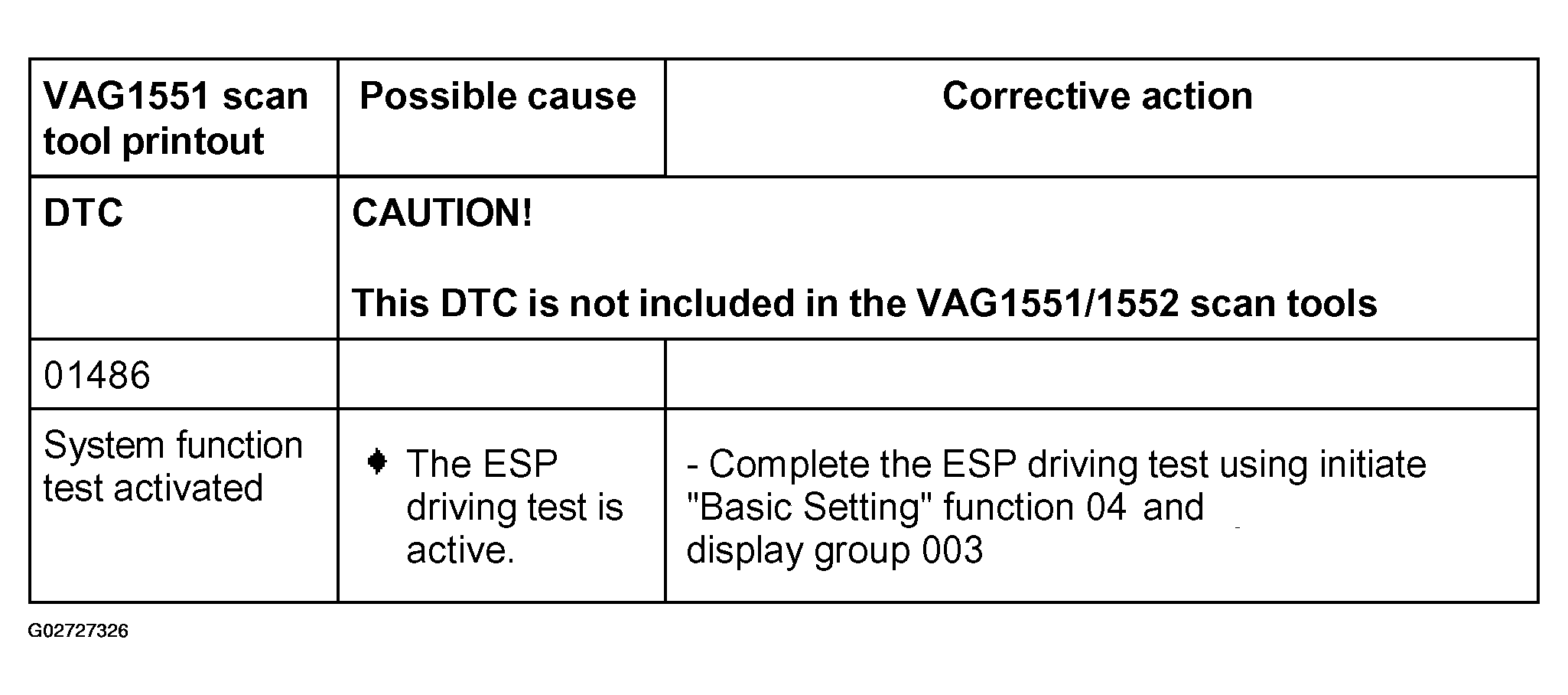

Fig 10: DTC 01486 - Bosch 5.3, With ESP

G02727326

Courtesy of AUDI OF AMERICA, INC.

For "Basic Setting", see BASIC SETTING (SCAN TOOL FUNCTION 04) .

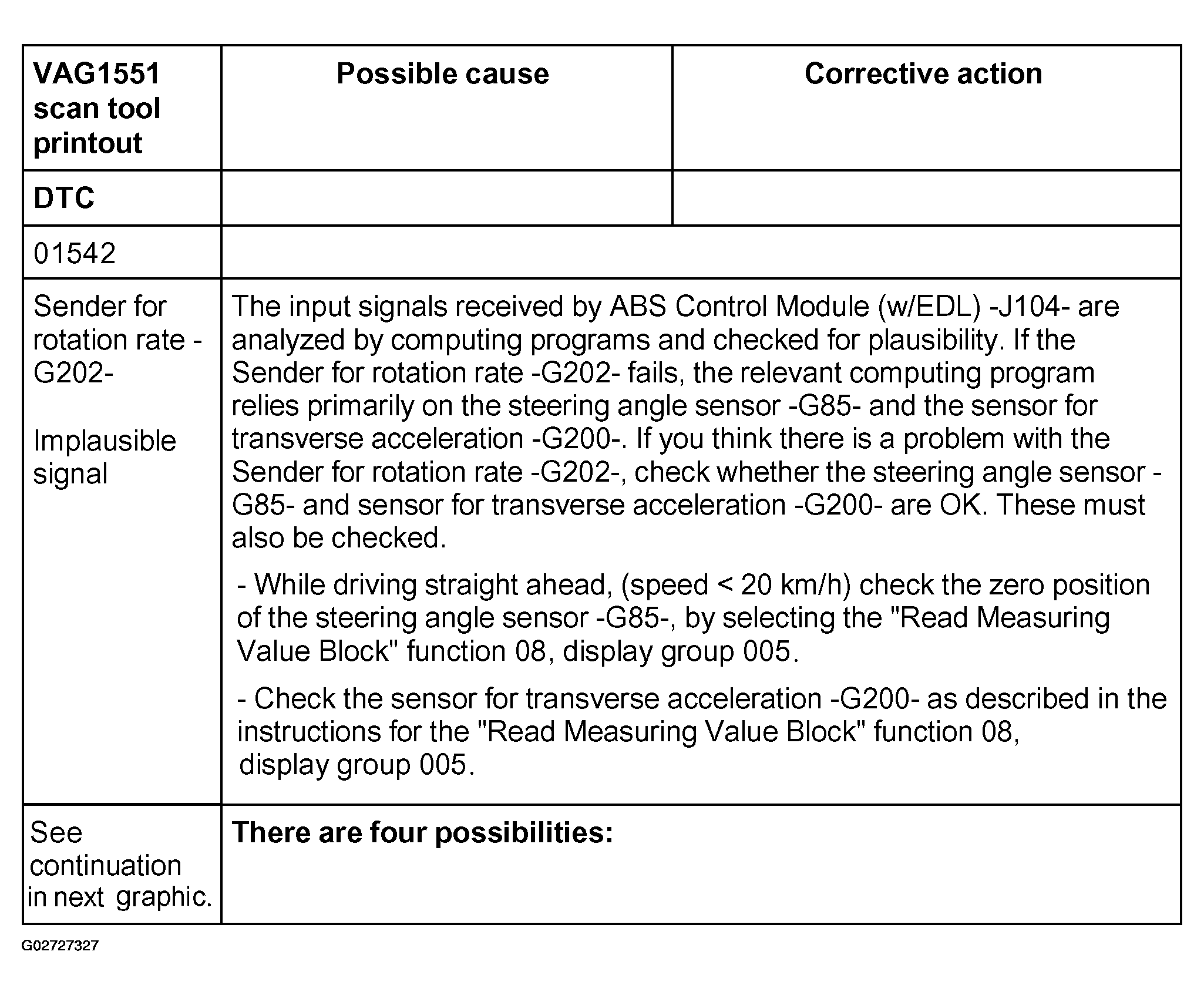

Fig 11: DTC 01542 - Bosch 5.3, With ESP (1 Of 10)

G02727327

Courtesy of AUDI OF AMERICA, INC.

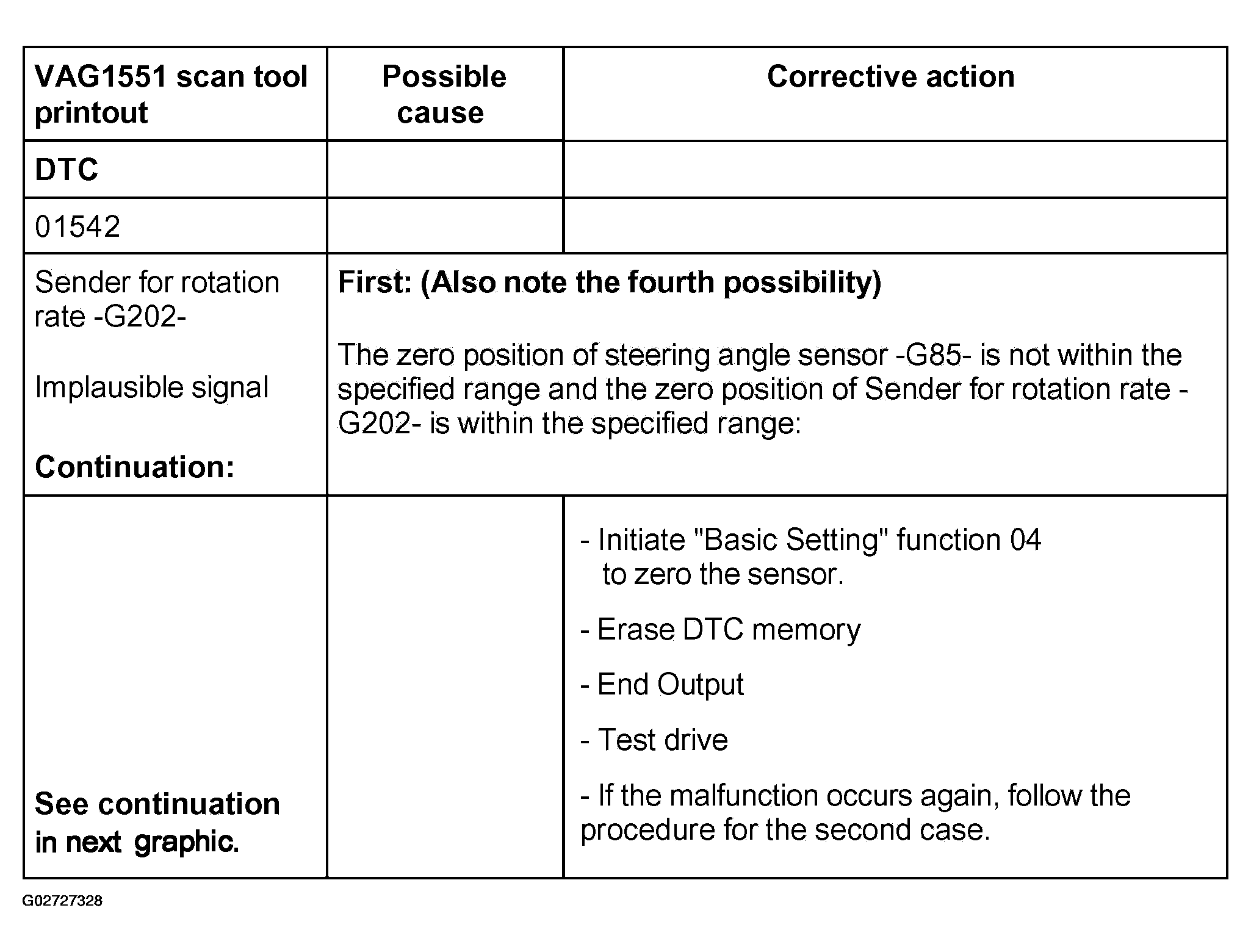

Fig 12: DTC 01542 - Bosch 5.3, With ESP (2 Of 10)

G02727328

Courtesy of AUDI OF AMERICA, INC.

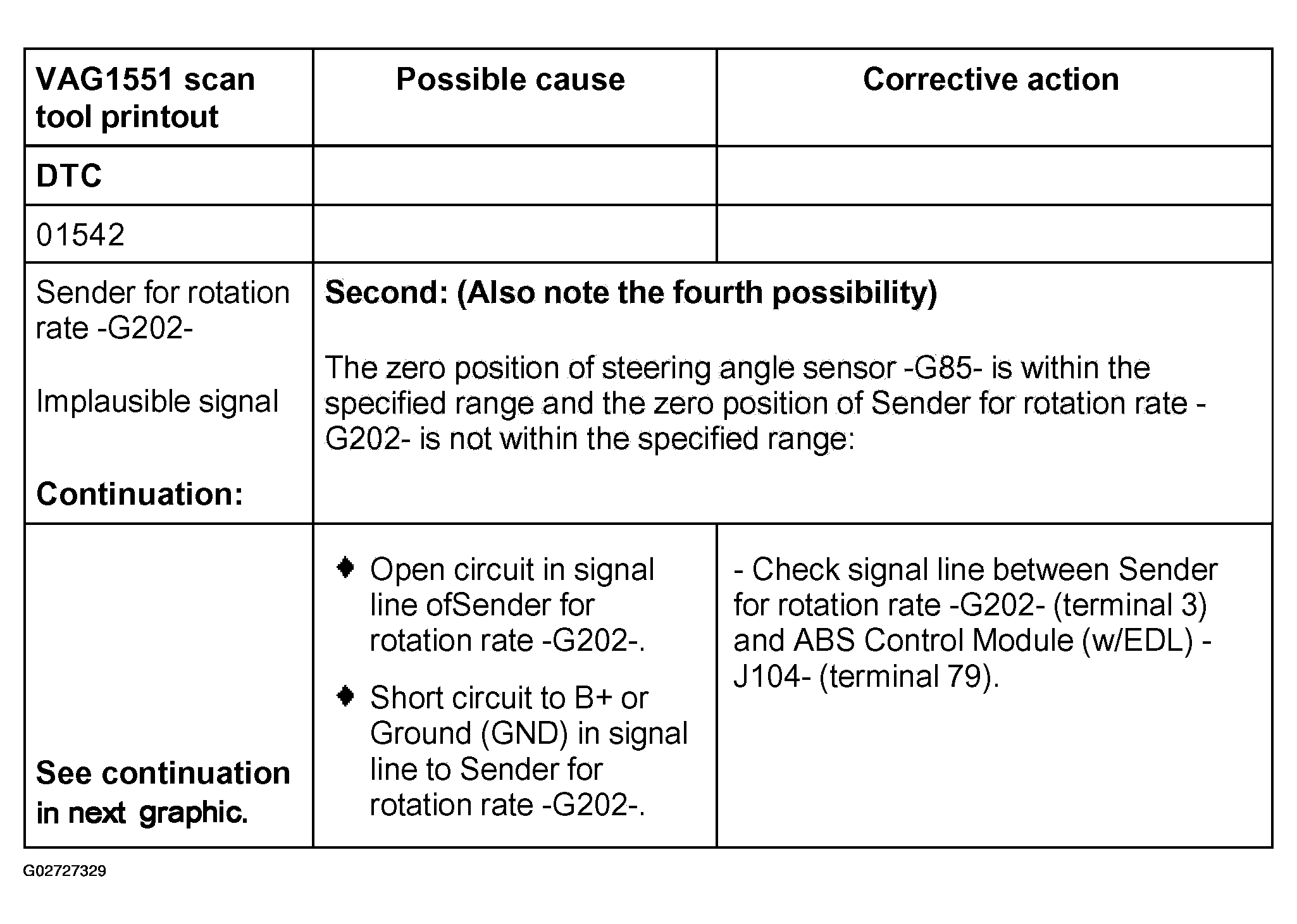

Fig 13: DTC 01542 - Bosch 5.3, With ESP (3 Of 10)

G02727329

Courtesy of AUDI OF AMERICA, INC.

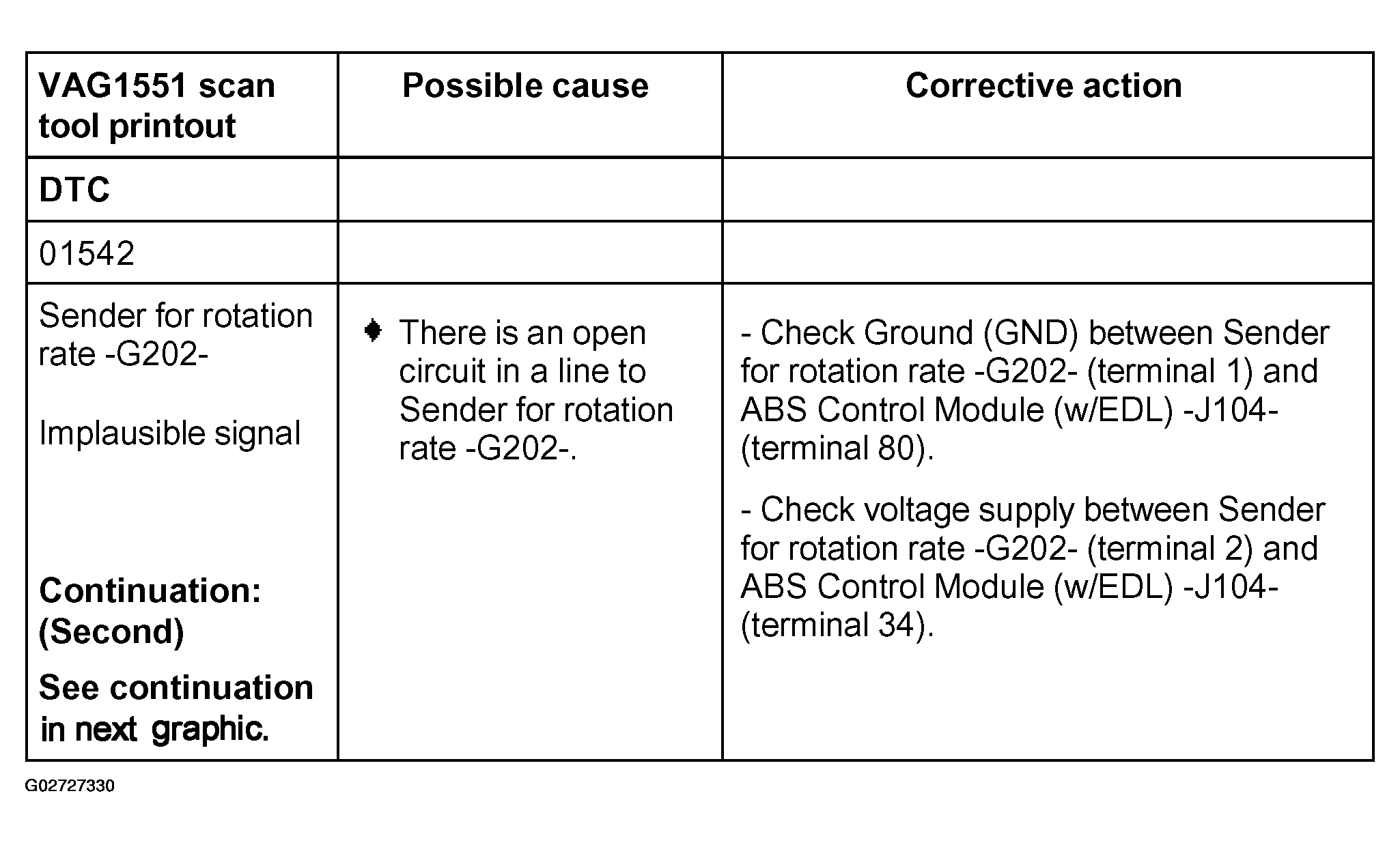

Fig 14: DTC 01542 - Bosch 5.3, With ESP (4 Of 10)

G02727330

Courtesy of AUDI OF AMERICA, INC.

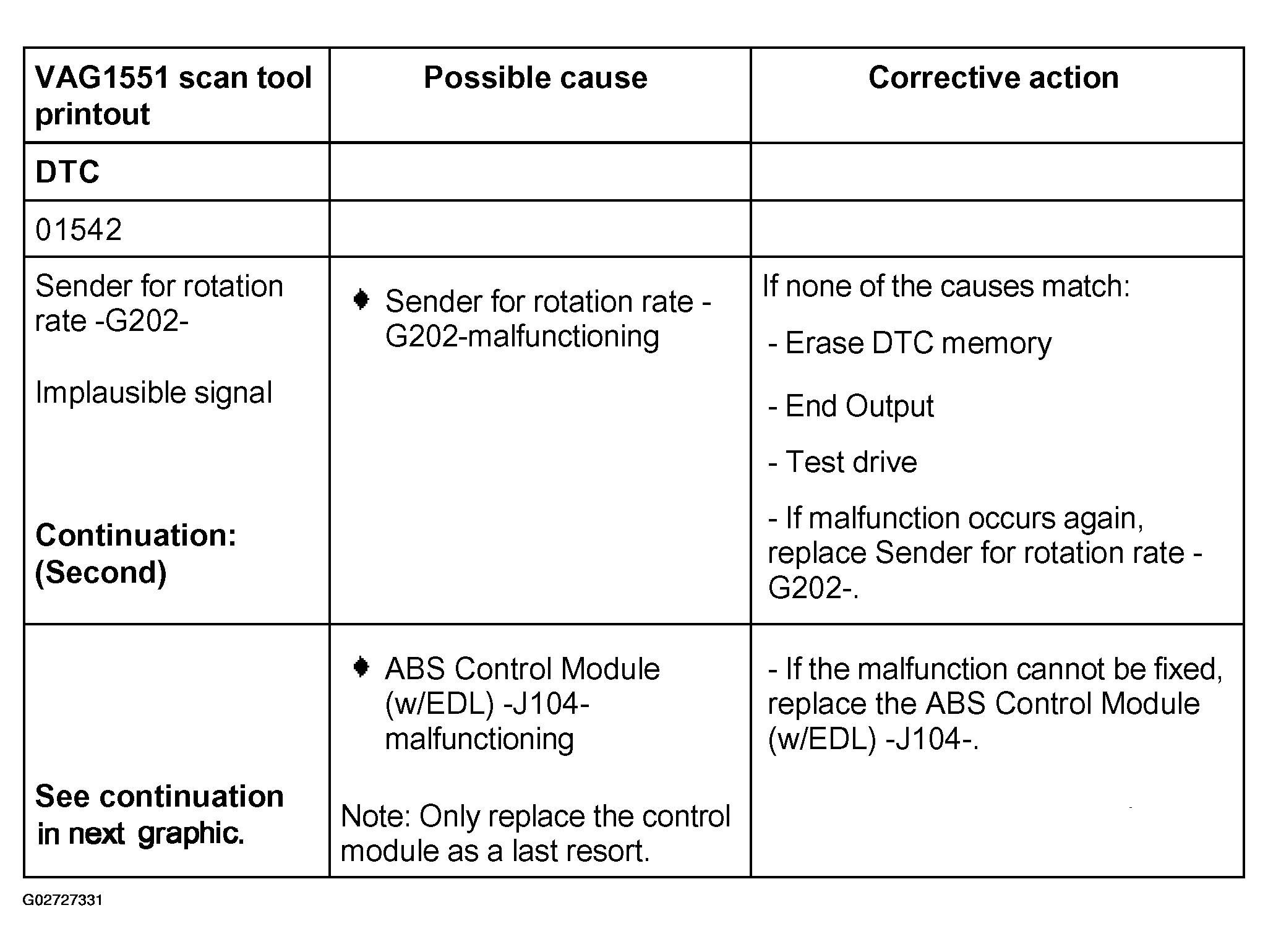

Fig 15: DTC 01542 - Bosch 5.3, With ESP(5 Of 10)

G02727331

Courtesy of AUDI OF AMERICA, INC.

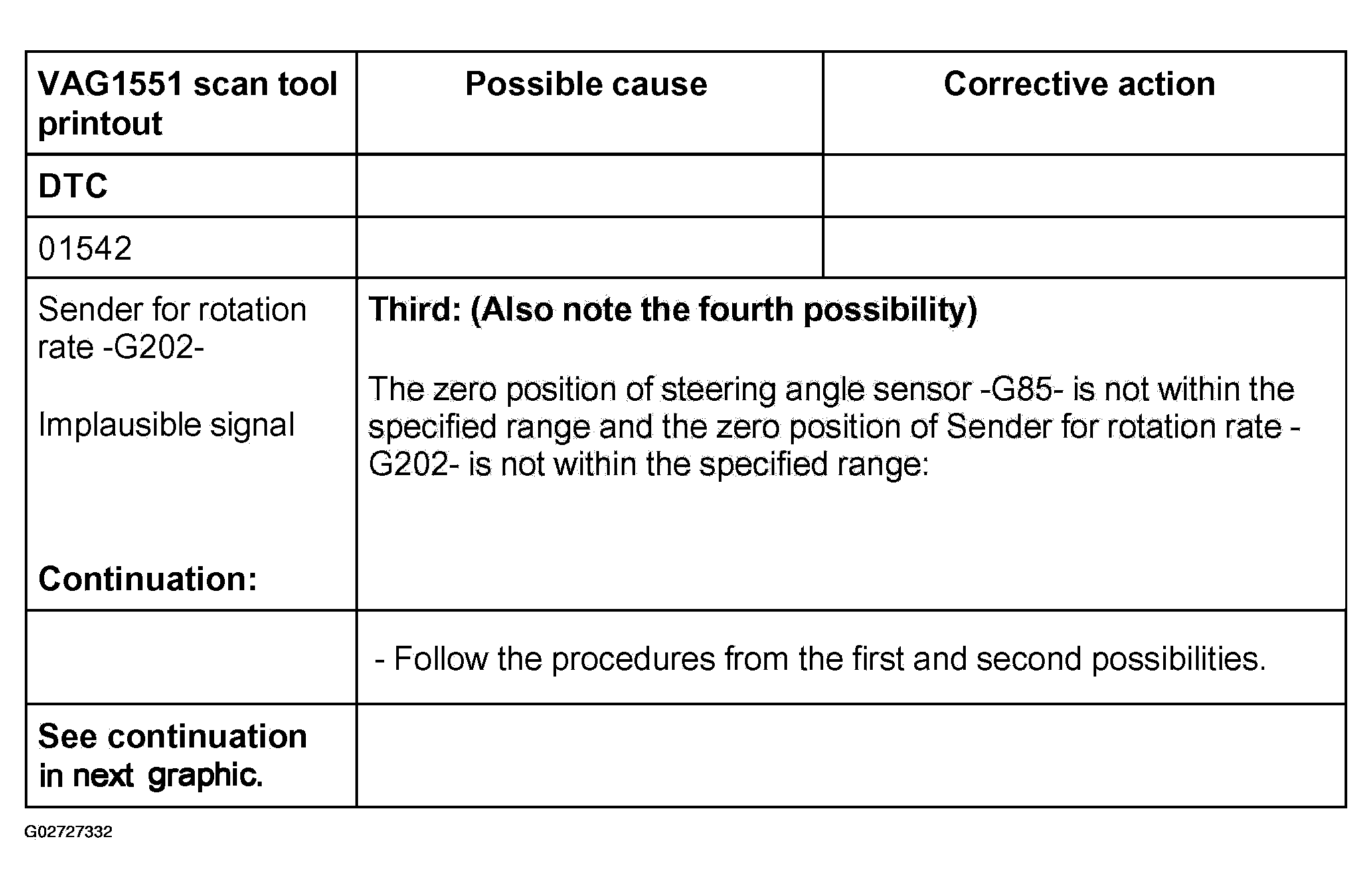

Fig 16: DTC 01542 - Bosch 5.3, With ESP (6 Of 10)

G02727332

Courtesy of AUDI OF AMERICA, INC.

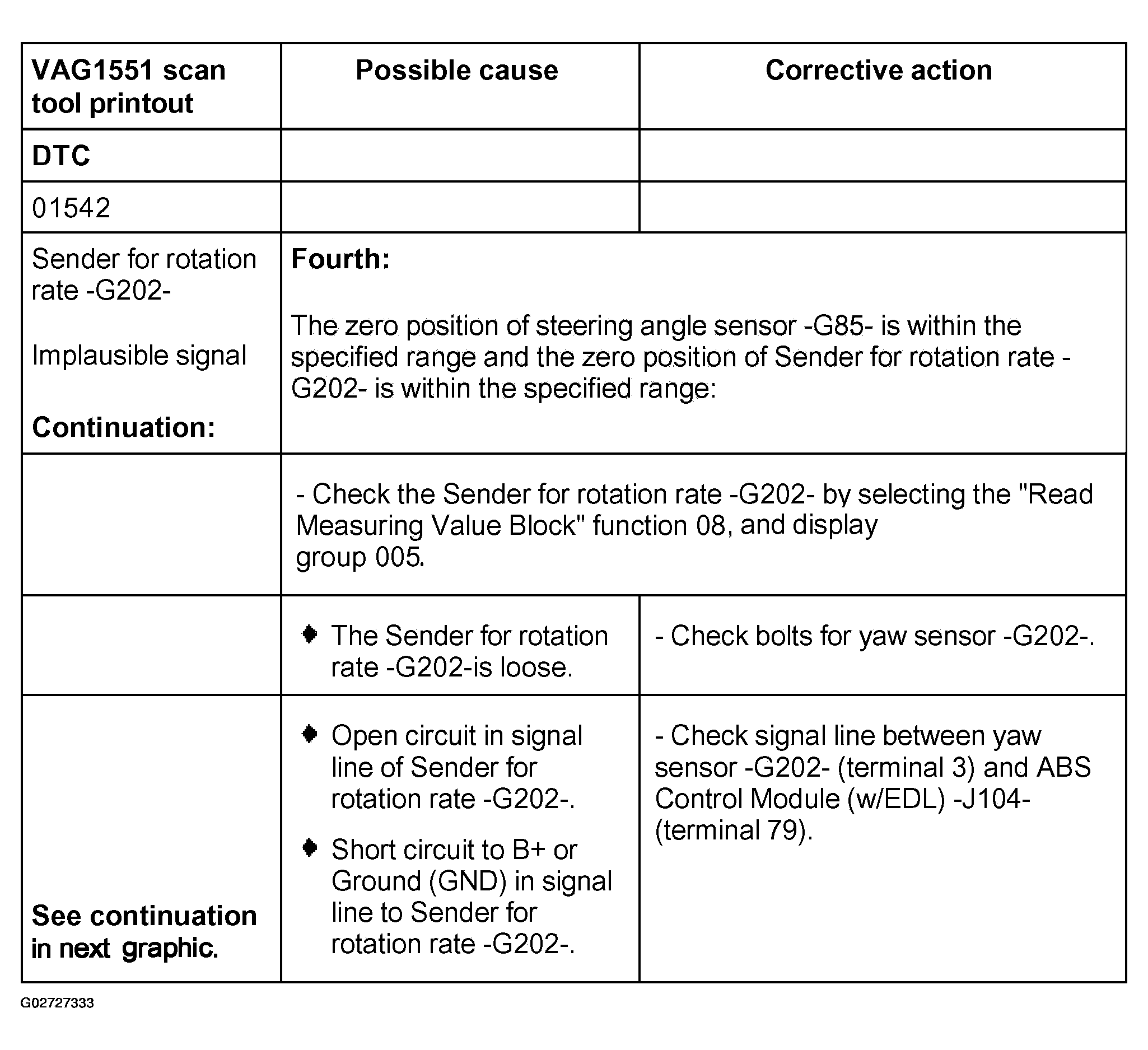

Fig 17: DTC 01542 - Bosch 5.3, With ESP (7 Of 10)

G02727333

Courtesy of AUDI OF AMERICA, INC.

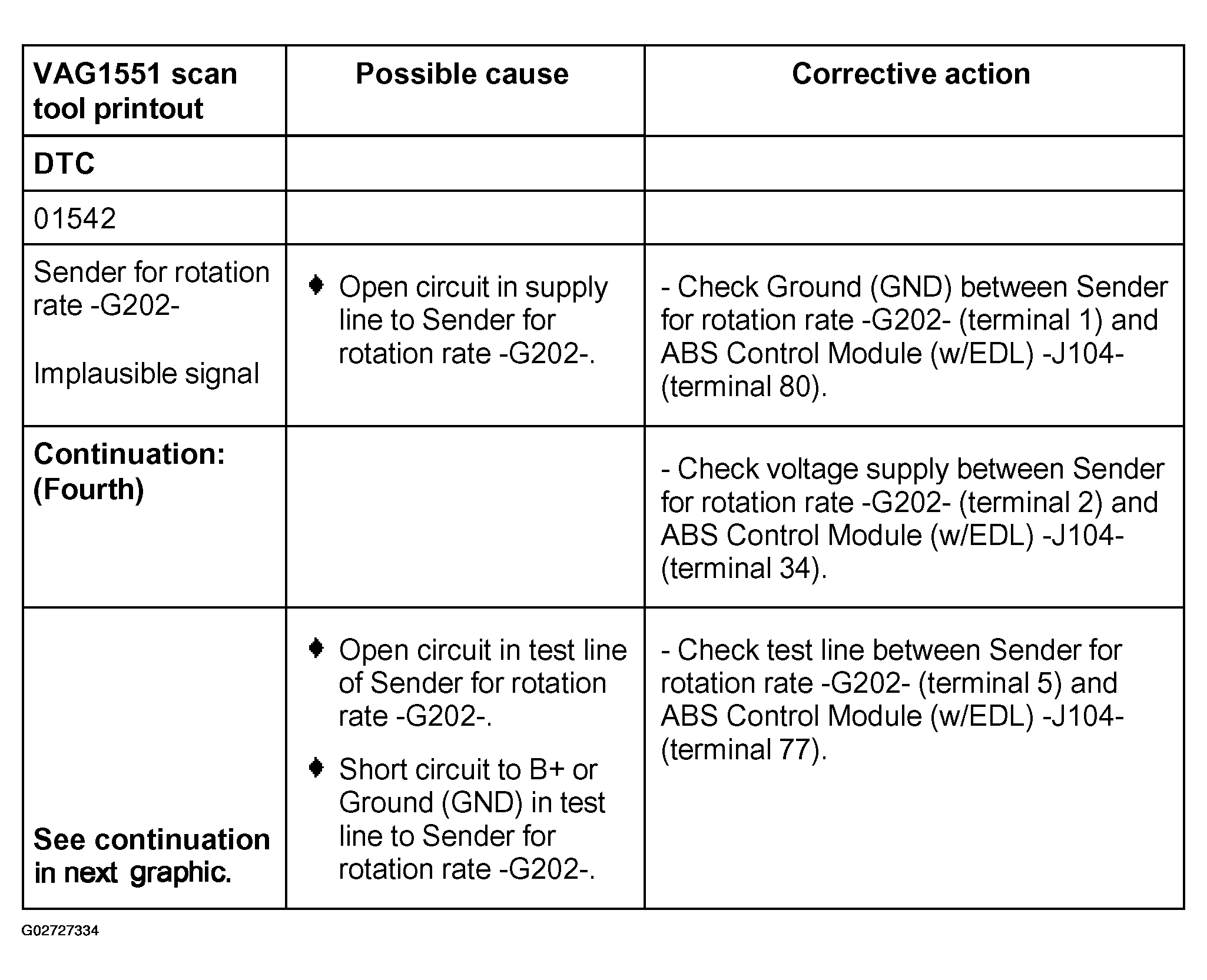

Fig 18: DTC 01542 - Bosch 5.3, With ESP (8 Of 10)

G02727334

Courtesy of AUDI OF AMERICA, INC.

Fig 19: DTC 01542 - Bosch 5.3, With ESP (9 Of 10)

G02727335

Courtesy of AUDI OF AMERICA, INC.

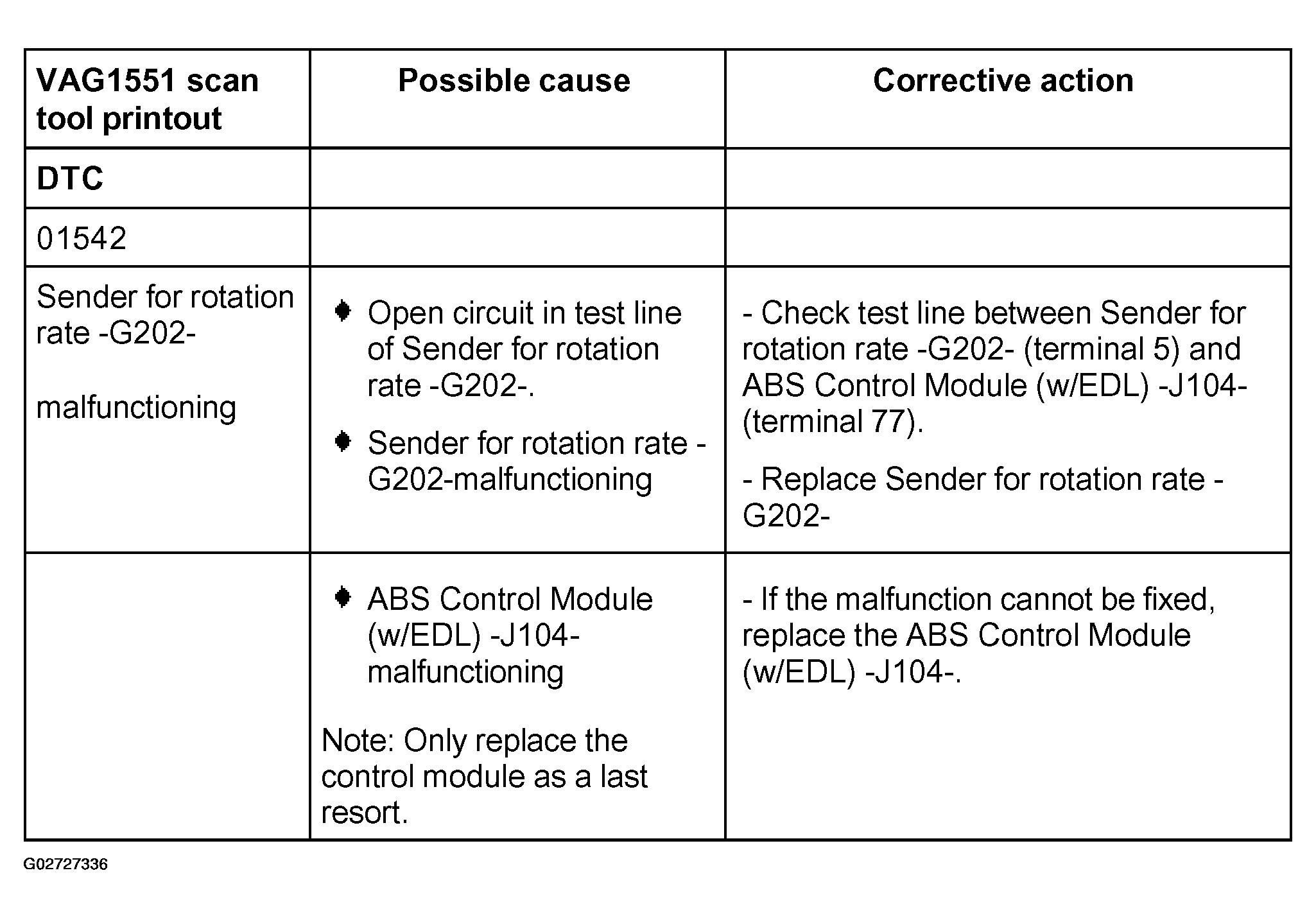

Fig 20: DTC 01542 - Bosch 5.3, With ESP (10 Of 10)

G02727336

Courtesy of AUDI OF AMERICA, INC.

For "read measuring value block" and related information, see MEASURING VALUE BLOCK (SCAN TOOL FUNCTION 08), READING .
For "Basic Setting", see BASIC SETTING (SCAN TOOL FUNCTION 04) .
To erase DTC memory, see ERASE DTC MEMORY .
For End Output, see END OUTPUT .
For test drive information, see TEST DRIVE .
To replace sender for rotation rate -G202-, see SENSOR FOR TRANSVERSE ACCELERATION -G200- AND SENDER FOR ROTATION RATE -G202-, REMOVING AND INSTALLING .
To replace ABS Control Module (w/EDL) -J104-, see ABS CONTROL MODULE (W/EDL) -J104-, REMOVING AND INSTALLING .
To erase DTC memory, see ERASE DTC MEMORY .
For End Output, see END OUTPUT .
For test drive information, see TEST DRIVE .
