DTC table; DTCs 01422 to 01425

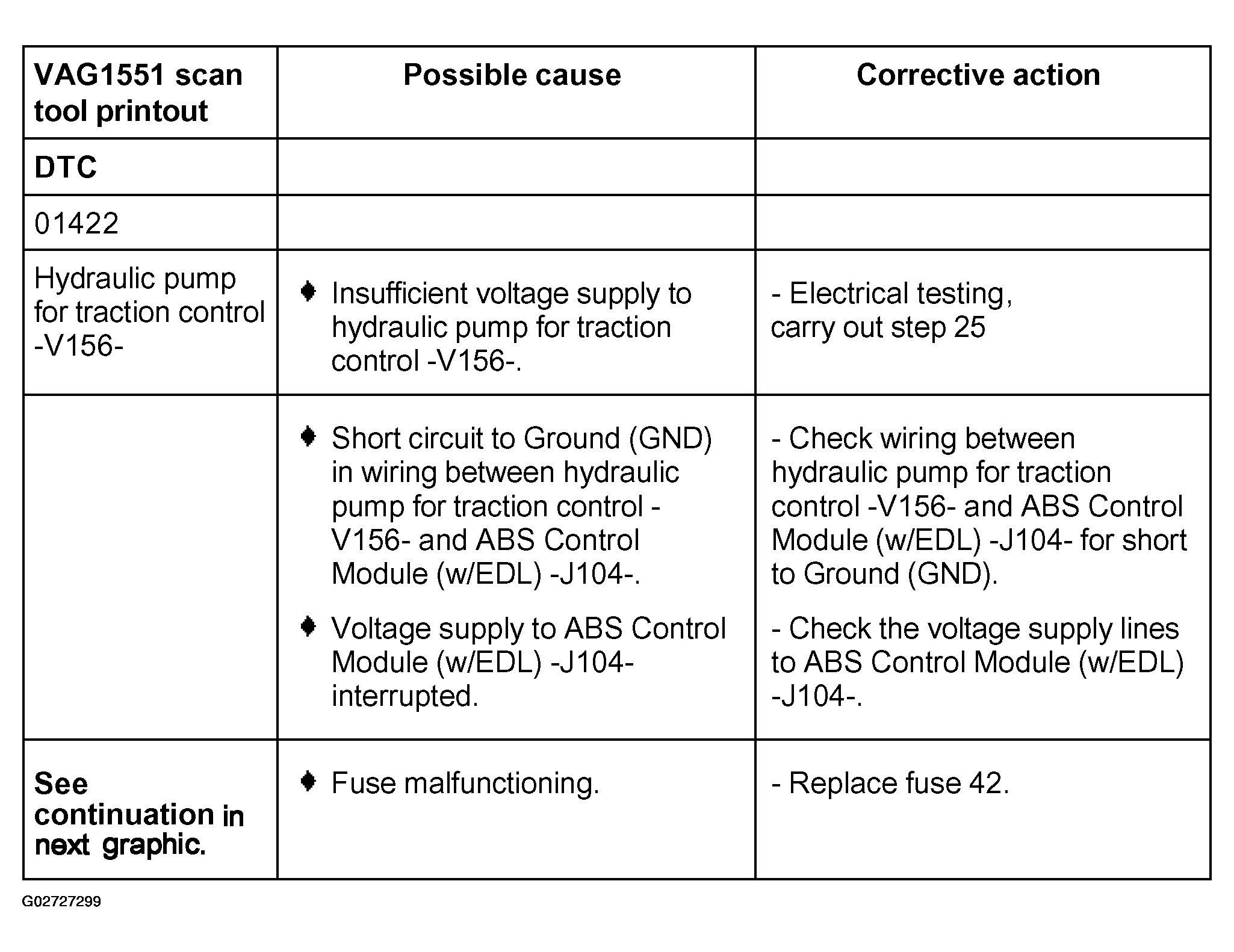

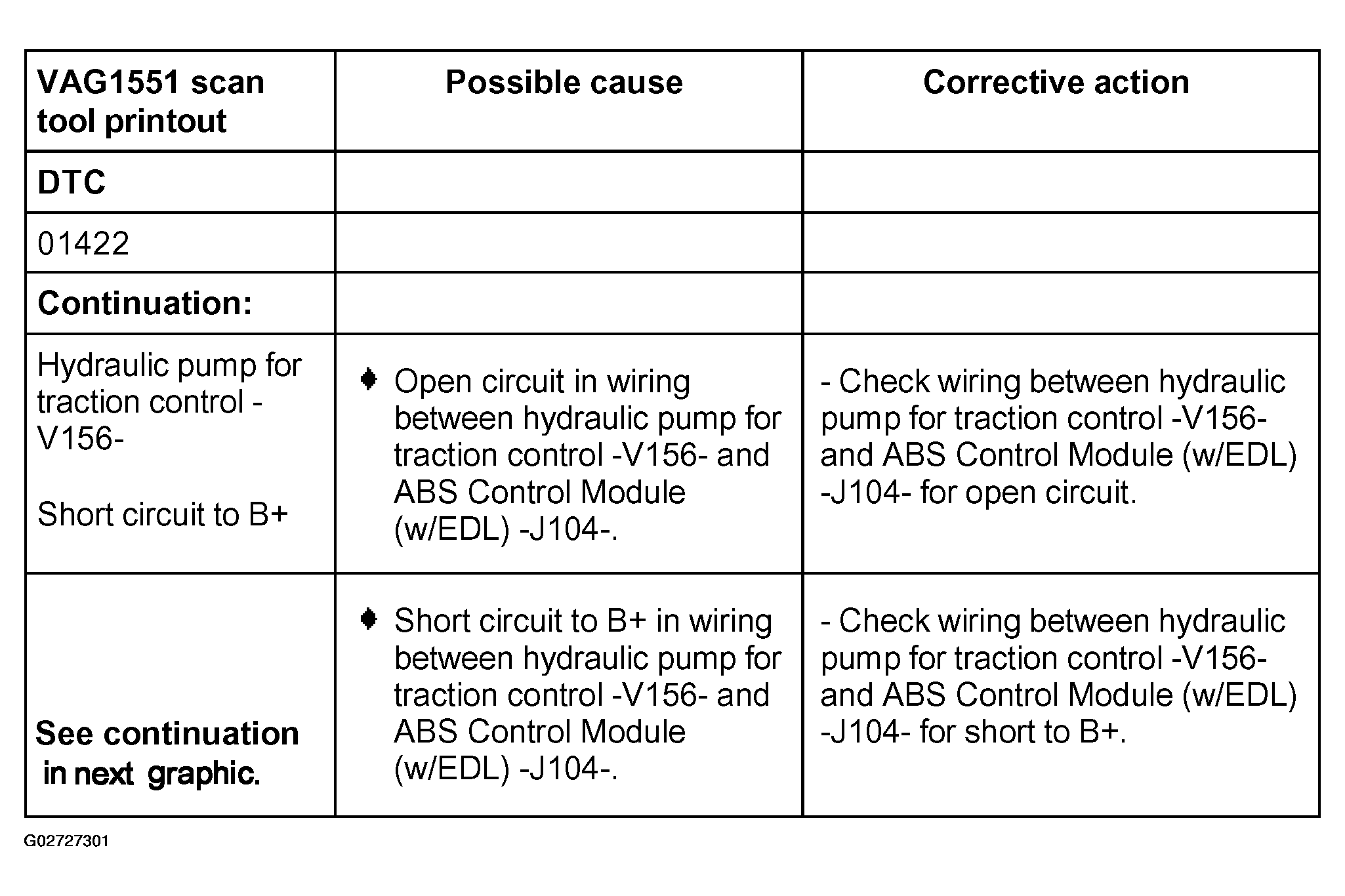

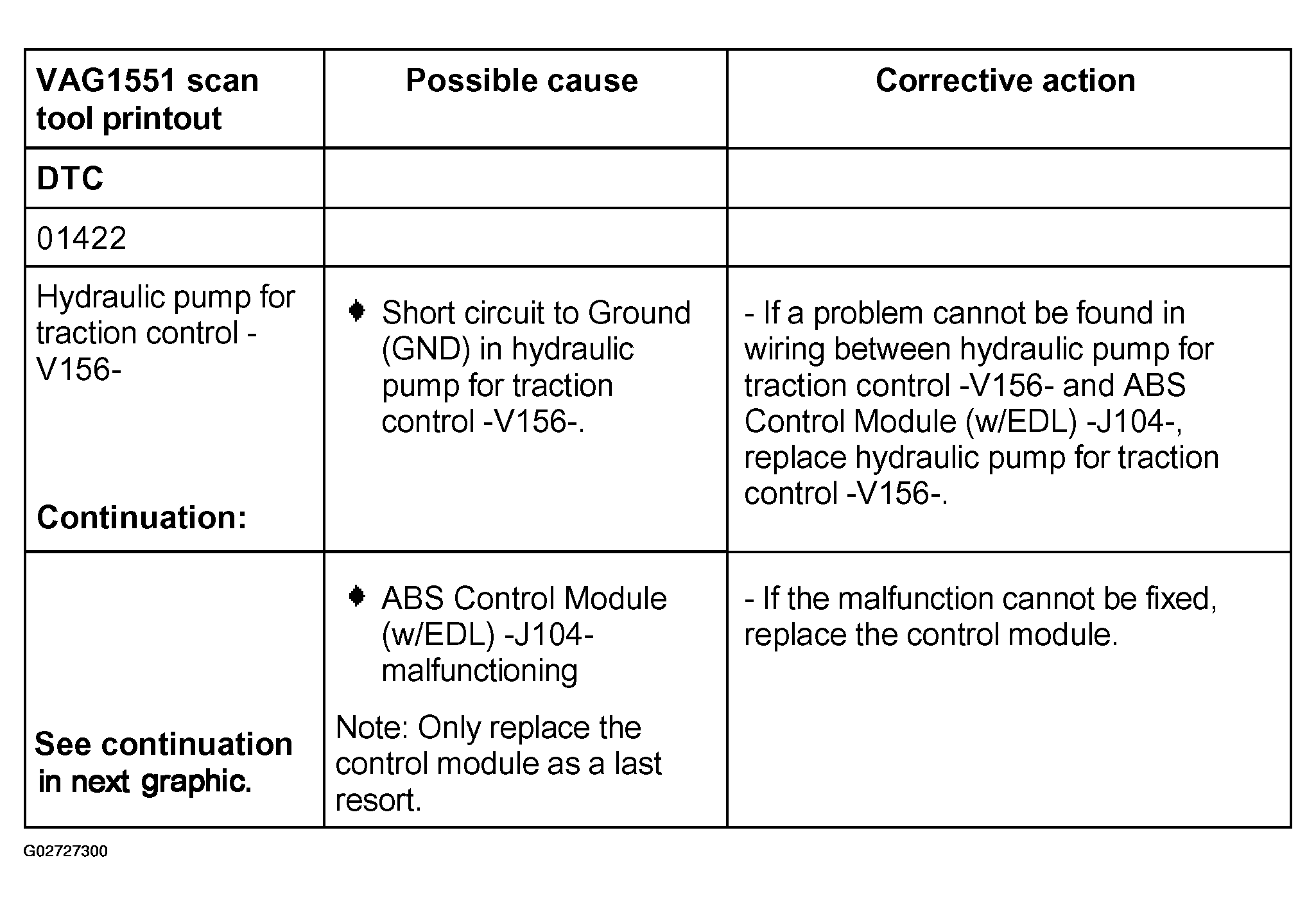

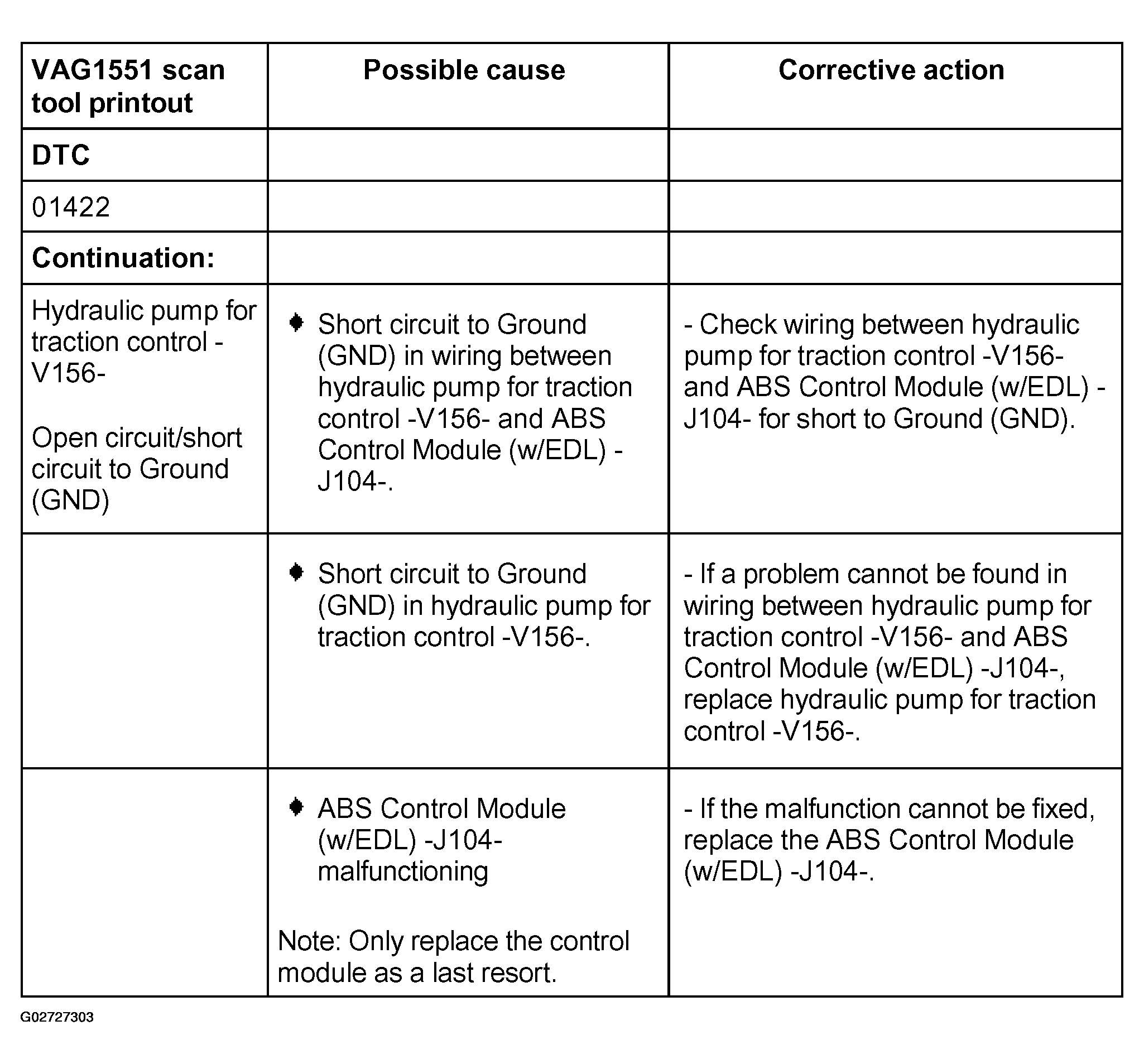

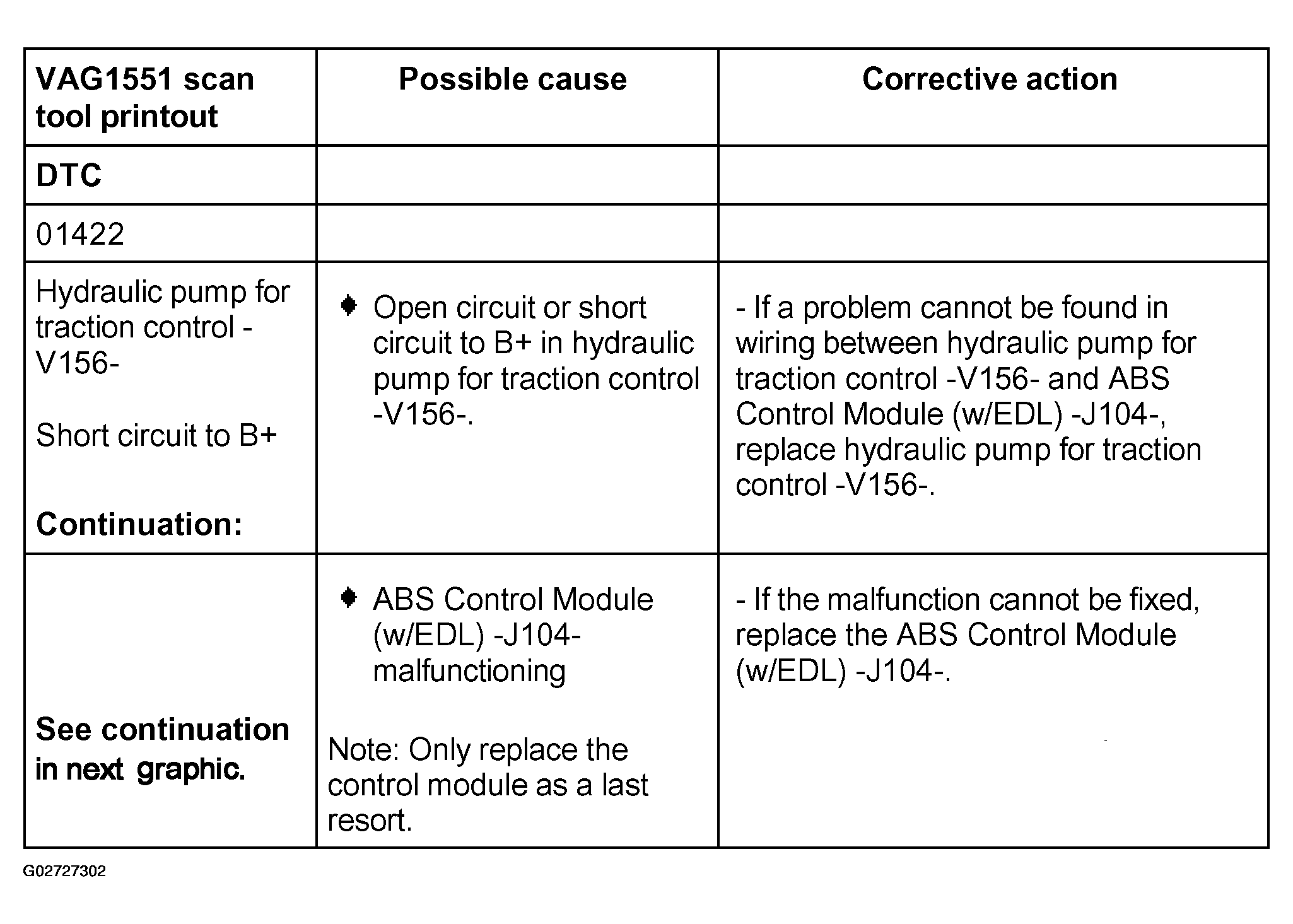

Fig 1: DTC 01422 - Bosch 5.3, With ESP (1 Of 5)

Courtesy of AUDI OF AMERICA, INC.

Fig 2: DTC 01422 - Bosch 5.3, With ESP (2 Of 5)

Courtesy of AUDI OF AMERICA, INC.

Fig 3: DTC 01422 - Bosch 5.3, With ESP (3 Of 5)

Courtesy of AUDI OF AMERICA, INC.

Fig 4: DTC 01422 - Bosch 5.3, With ESP (4 Of 5)

Courtesy of AUDI OF AMERICA, INC.

Fig 5: DTC 01422 - Bosch 5.3, With ESP (5 Of 5)

Courtesy of AUDI OF AMERICA, INC.

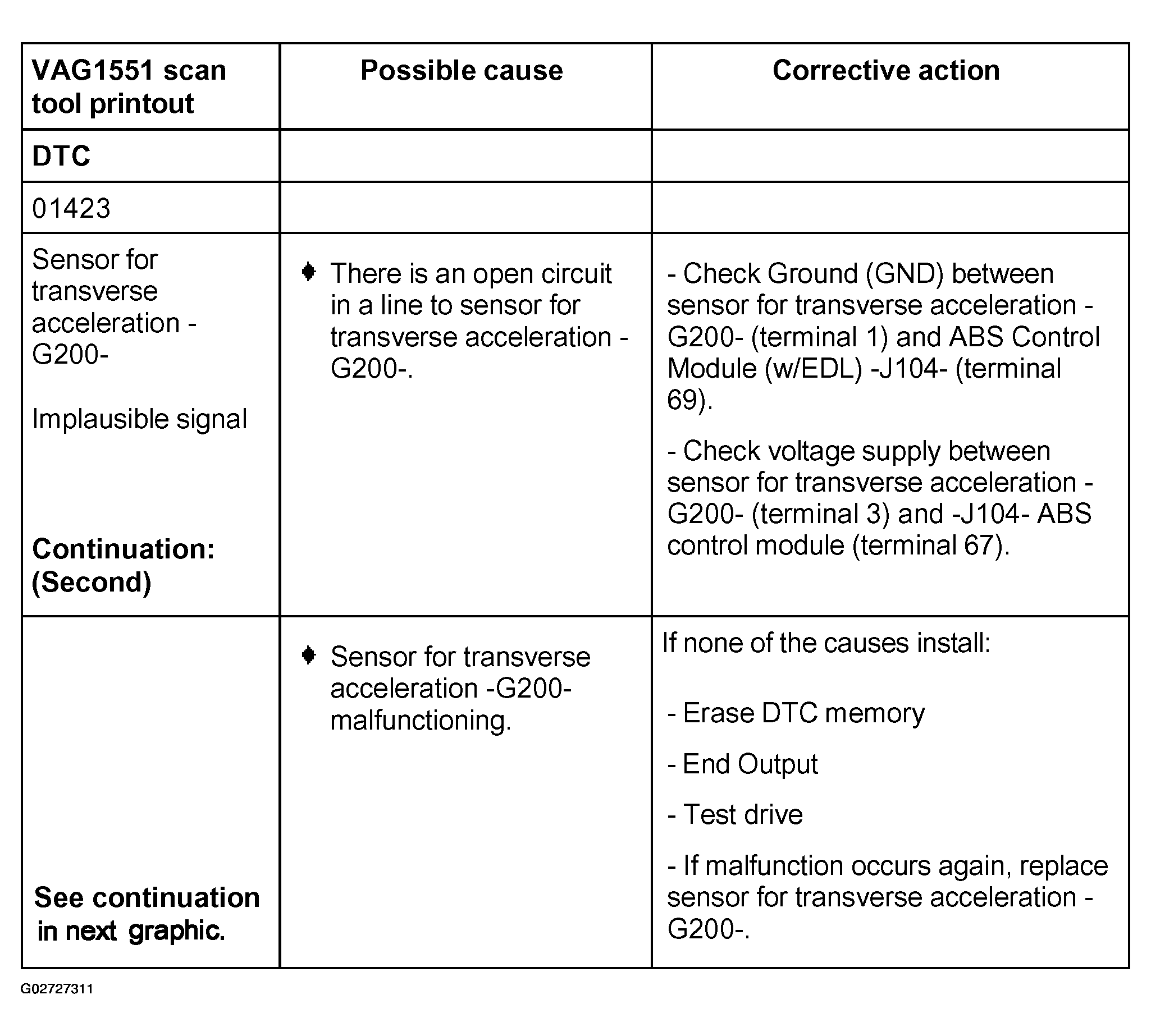

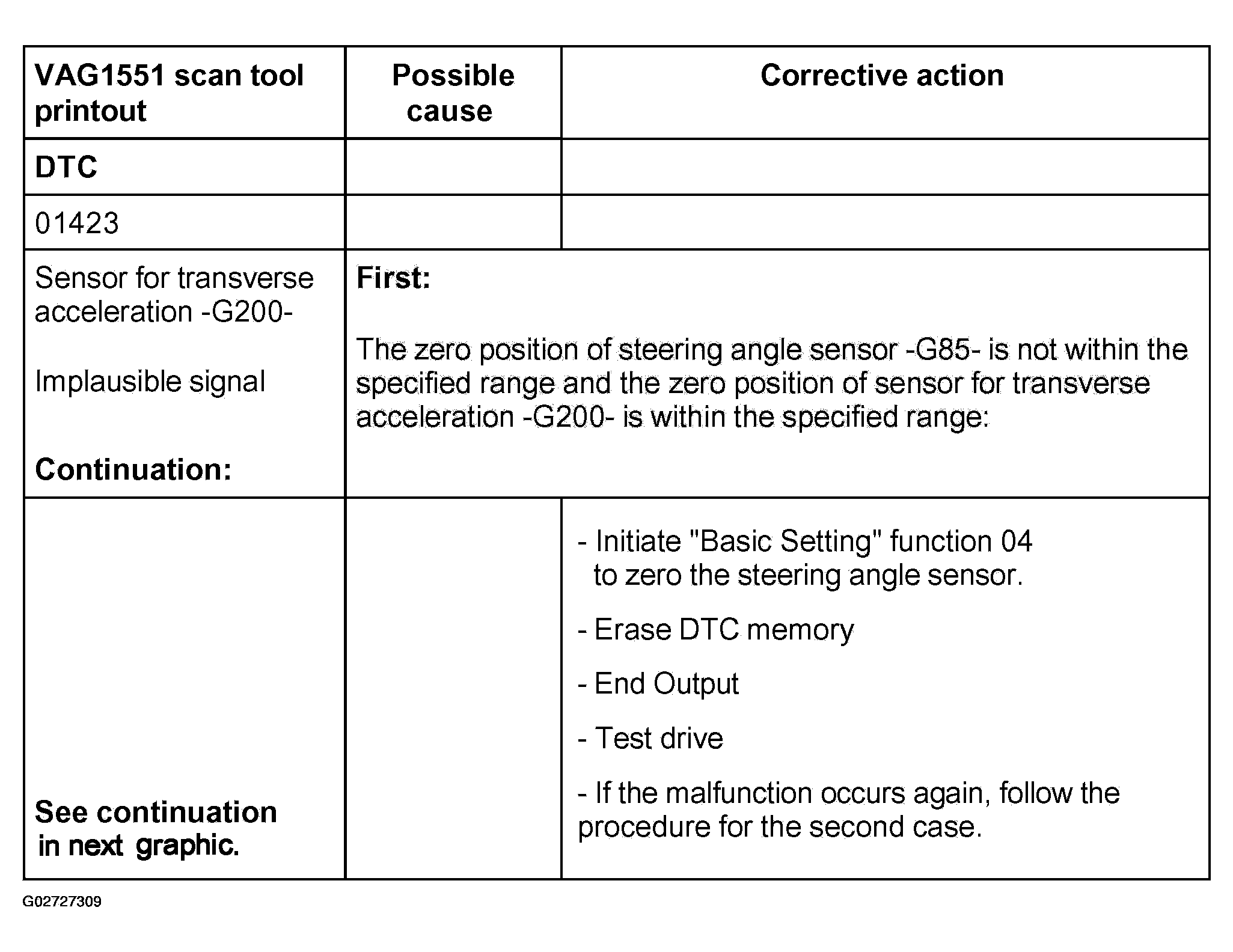

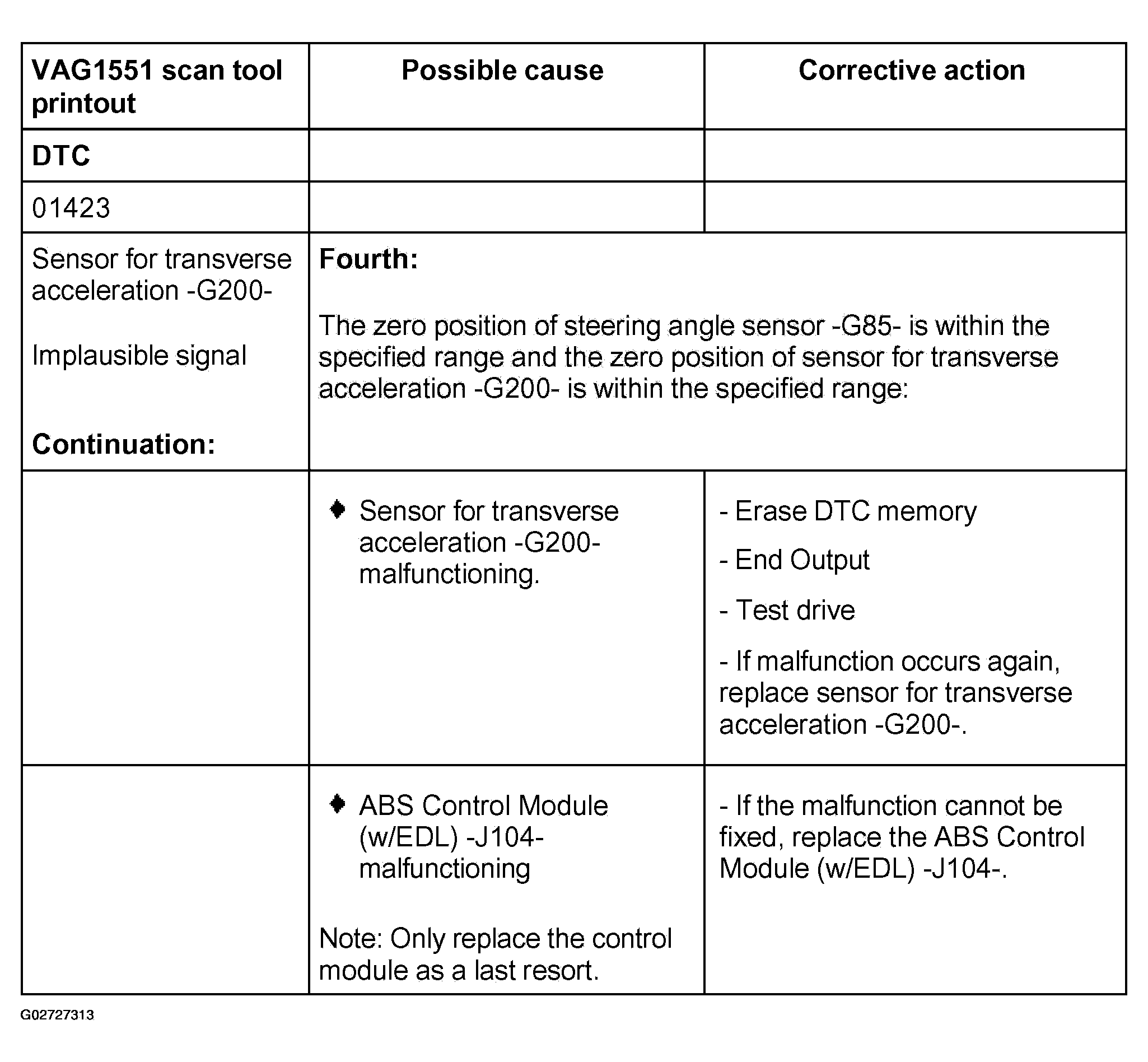

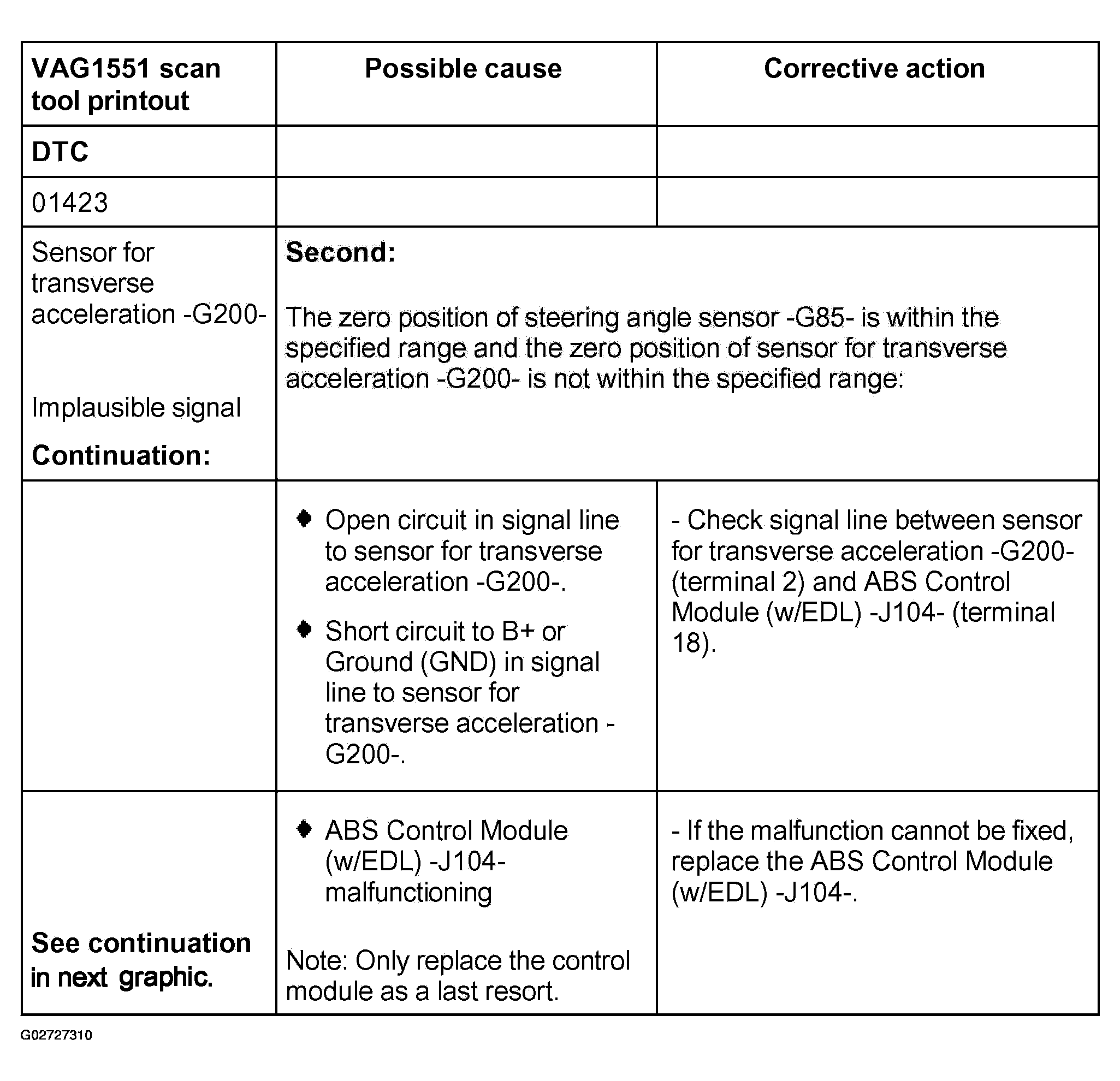

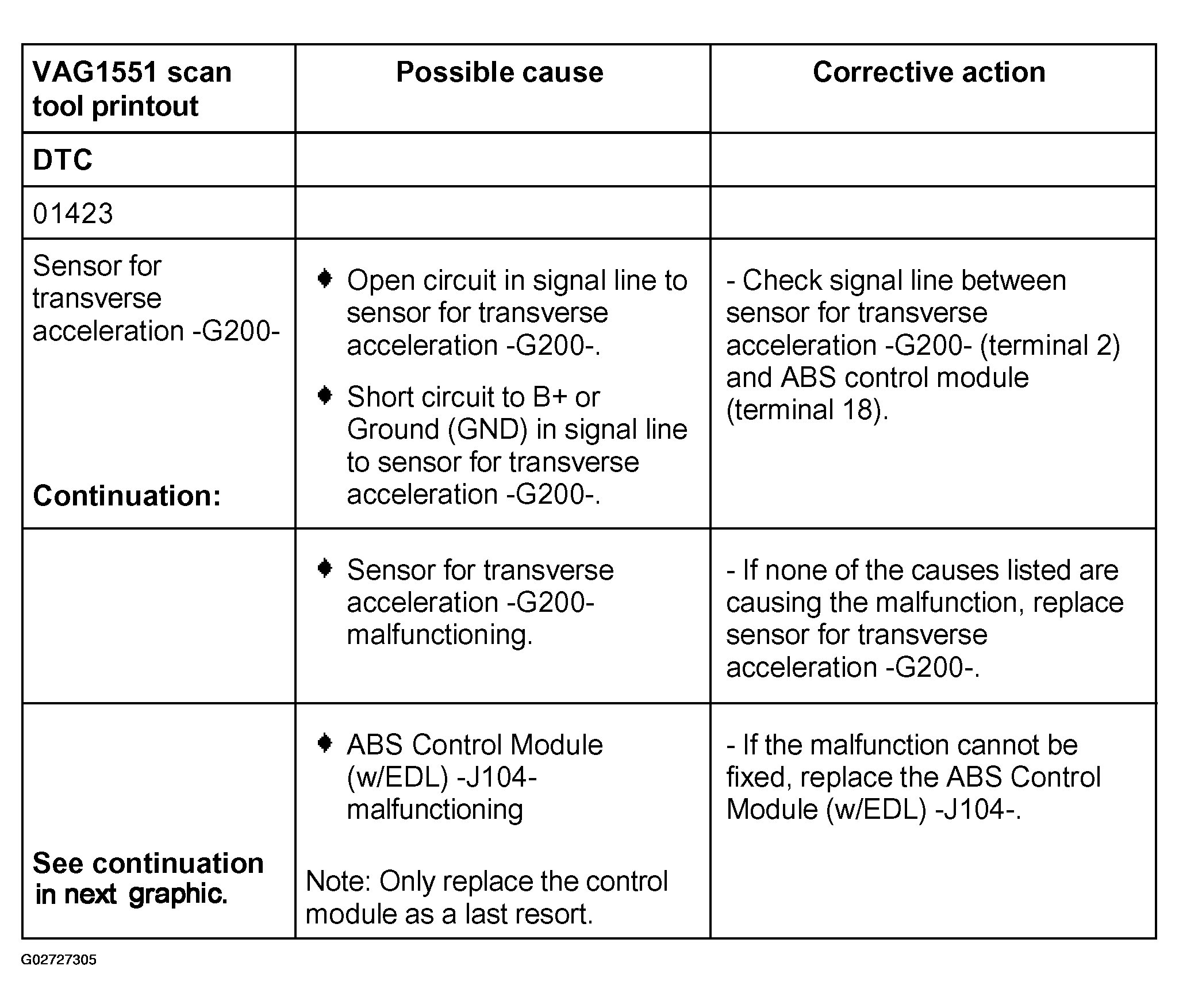

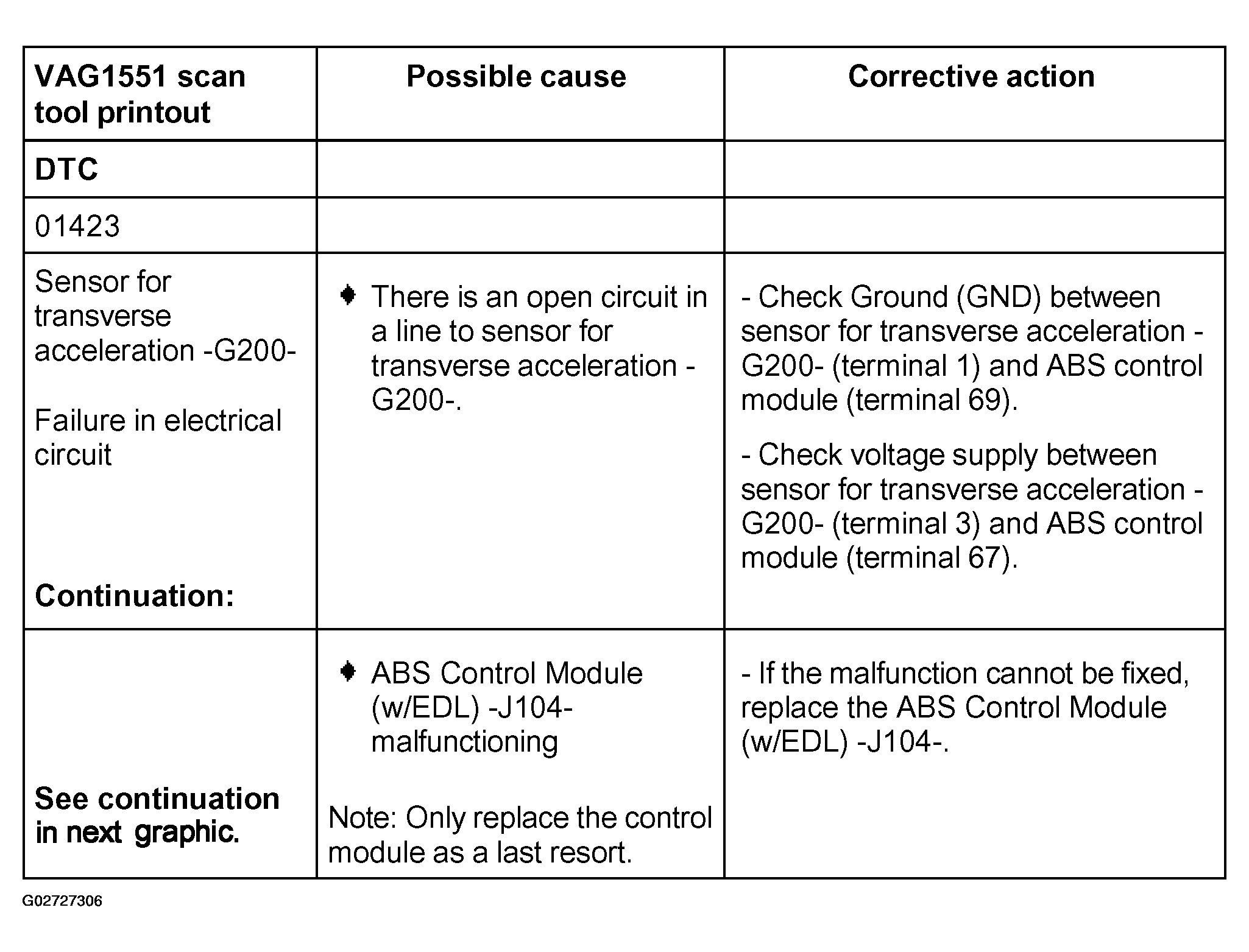

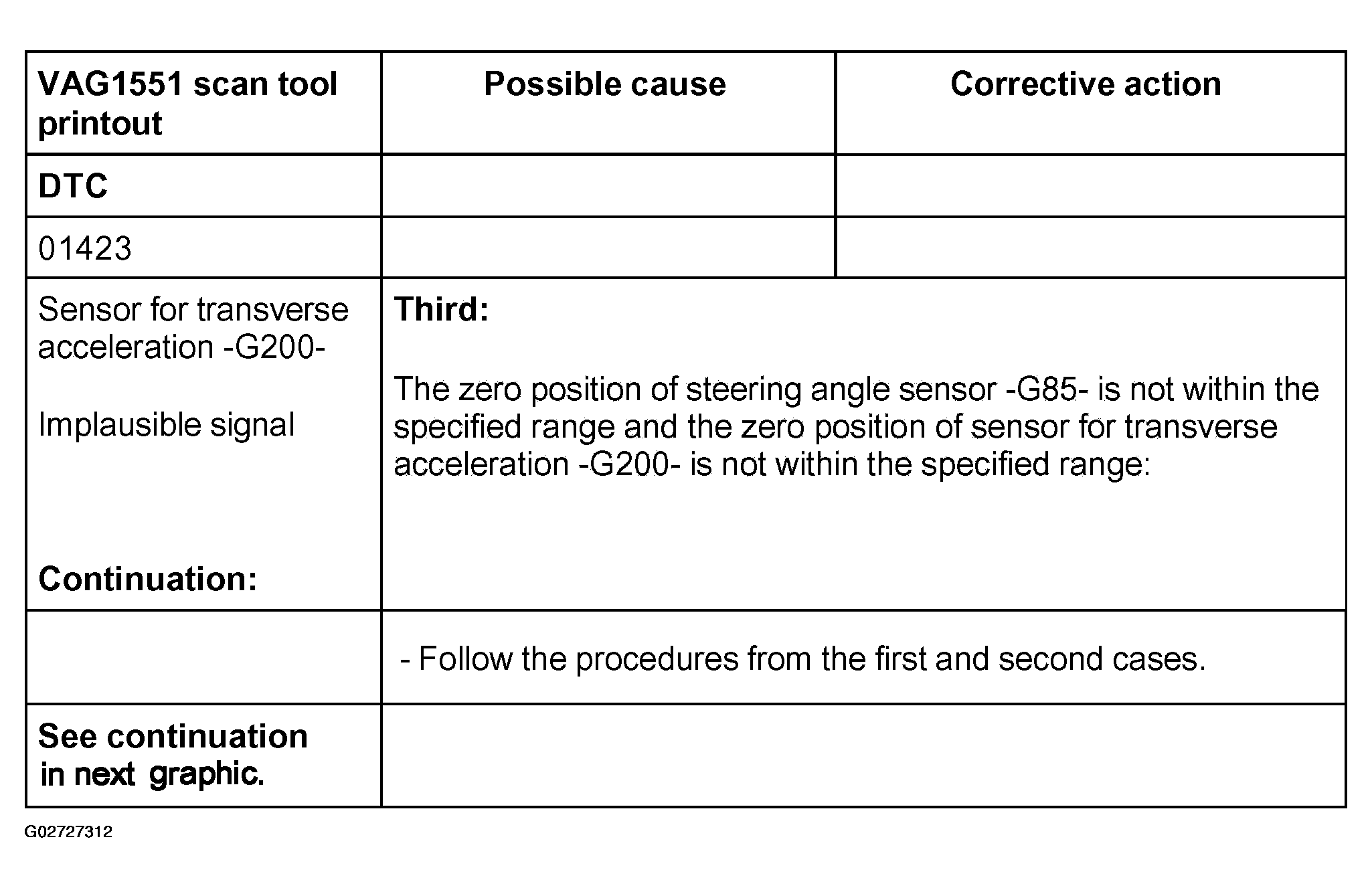

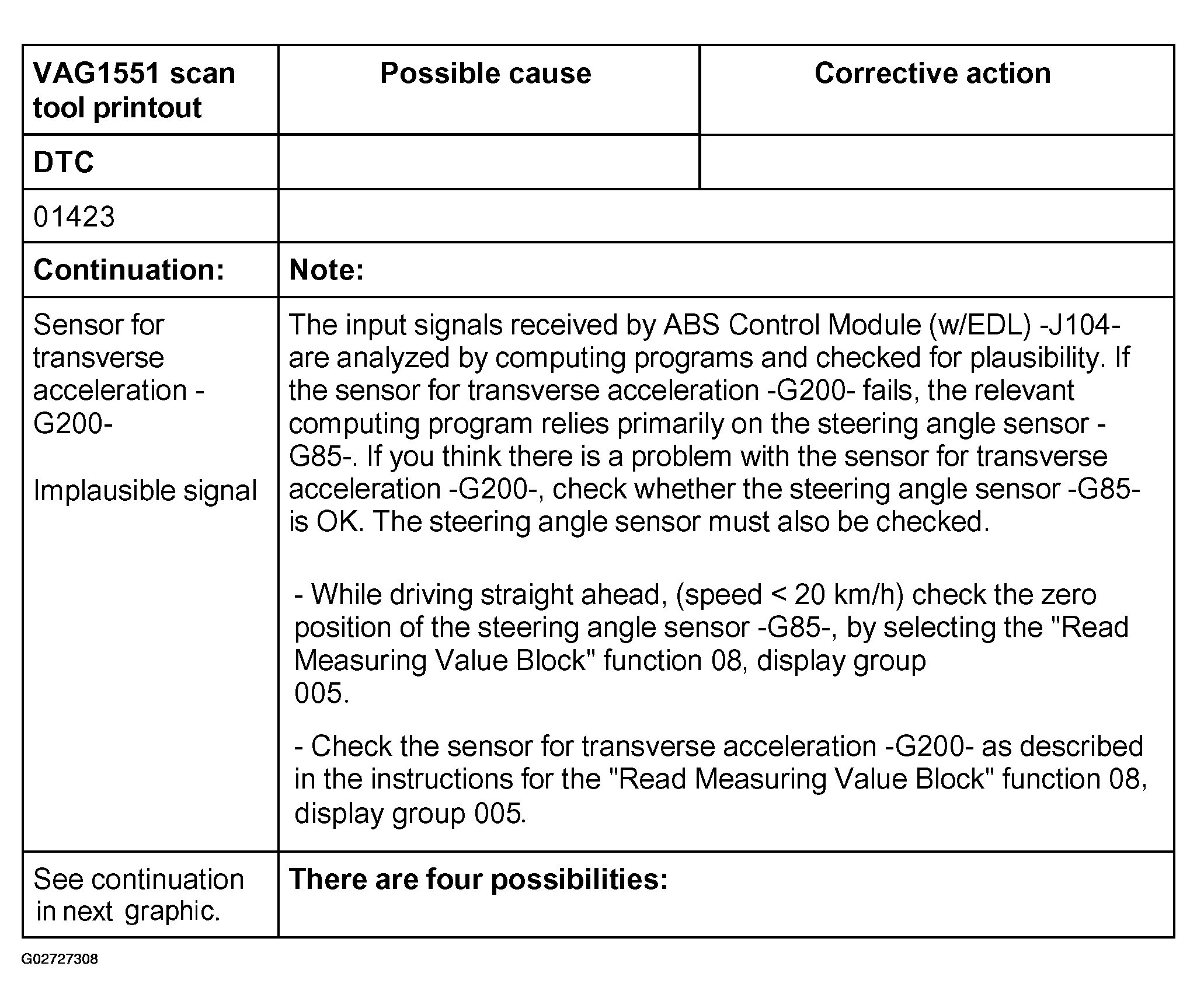

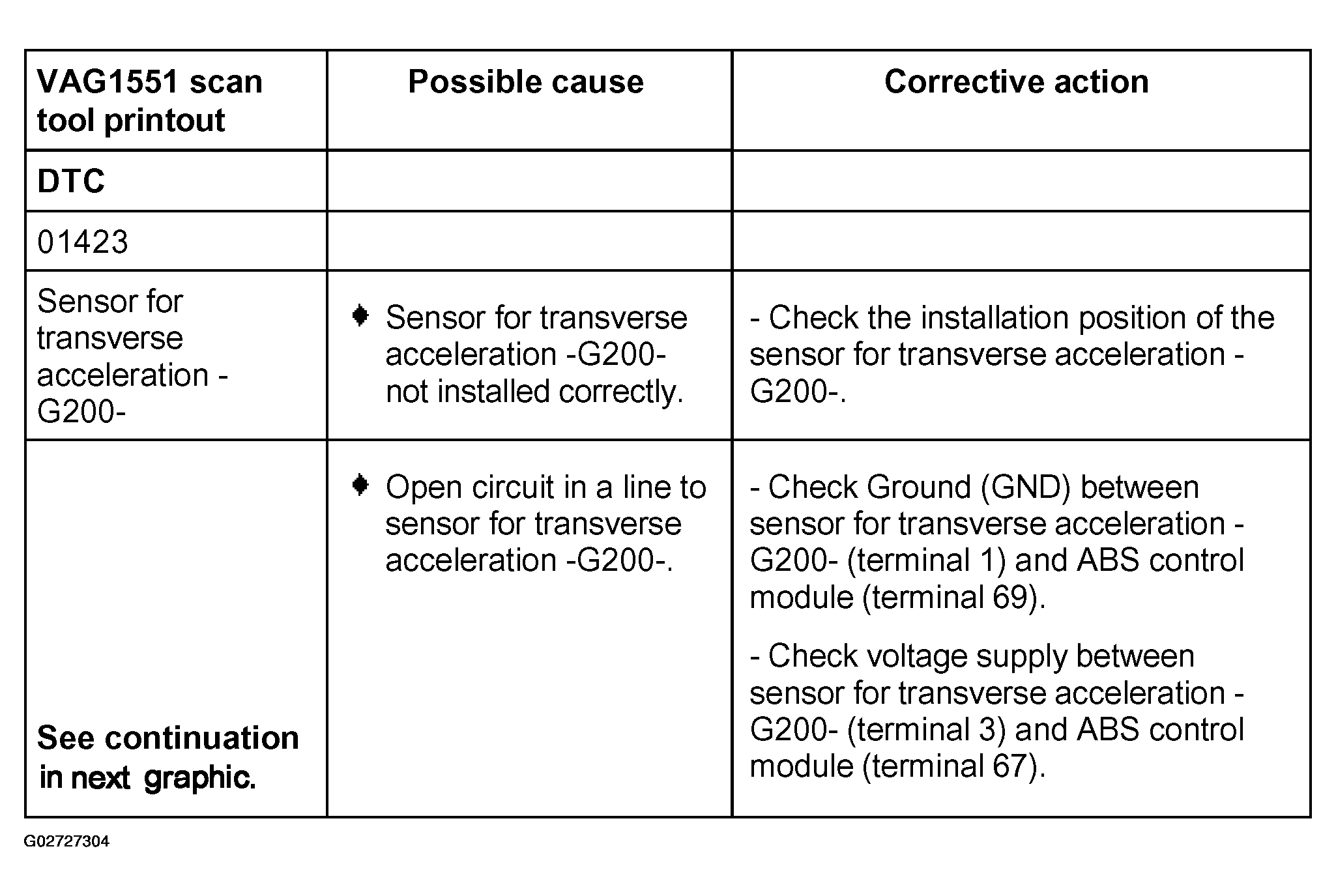

Fig 6: DTC 01423 - Bosch 5.3, With ESP (1 Of 10)

Courtesy of AUDI OF AMERICA, INC.

Fig 7: DTC 01423 - Bosch 5.3, With ESP (2 Of 10)

Courtesy of AUDI OF AMERICA, INC.

Fig 8: DTC 01423 - Bosch 5.3, With ESP (3 Of 10)

Courtesy of AUDI OF AMERICA, INC.

Fig 9: DTC 01423 - Bosch 5.3, With ESP (4 Of 10)

Courtesy of AUDI OF AMERICA, INC.

Fig 10: DTC 01423 - Bosch 5.3, With ESP (5 Of 10)

Courtesy of AUDI OF AMERICA, INC.

Fig 11: DTC 01423 - Bosch 5.3, With ESP (6 Of 10)

Courtesy of AUDI OF AMERICA, INC.

Fig 12: DTC 01423 - Bosch 5.3, With ESP (7 Of 10)

Courtesy of AUDI OF AMERICA, INC.

Fig 13: DTC 01423 - Bosch 5.3, With ESP (8 Of 10)

Courtesy of AUDI OF AMERICA, INC.

Fig 14: DTC 01423 - Bosch 5.3, With ESP (9 Of 10)

Courtesy of AUDI OF AMERICA, INC.

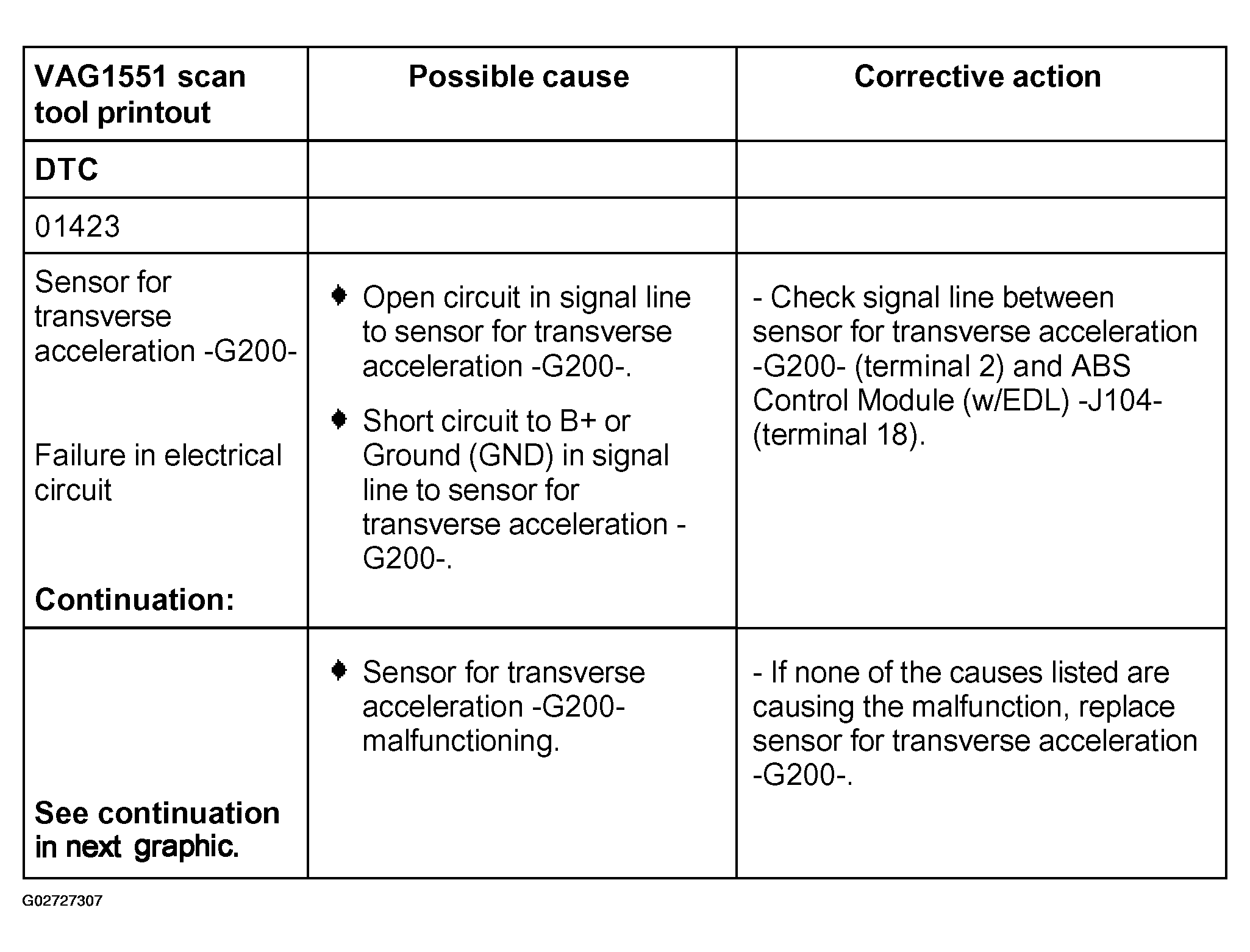

Fig 15: DTC 01423 - Bosch 5.3, With ESP (10 Of 10)

Courtesy of AUDI OF AMERICA, INC.

For transverse acceleration sensor information, see SENSOR FOR TRANSVERSE ACCELERATION -G200- AND SENDER FOR ROTATION RATE -G202-, REMOVING AND INSTALLING .
To replace ABS Control Module (w/EDL) -J104-, see ABS CONTROL MODULE (W/EDL) -J104-, REMOVING AND INSTALLING .
For "read measuring value block" and related information, see MEASURING VALUE BLOCK (SCAN TOOL FUNCTION 08), READING .
For "Basic Setting", see BASIC SETTING (SCAN TOOL FUNCTION 04) .
For End Output, see END OUTPUT .
For test drive information, see TEST DRIVE .
For Electrical testing, see ELECTRICAL TESTING .

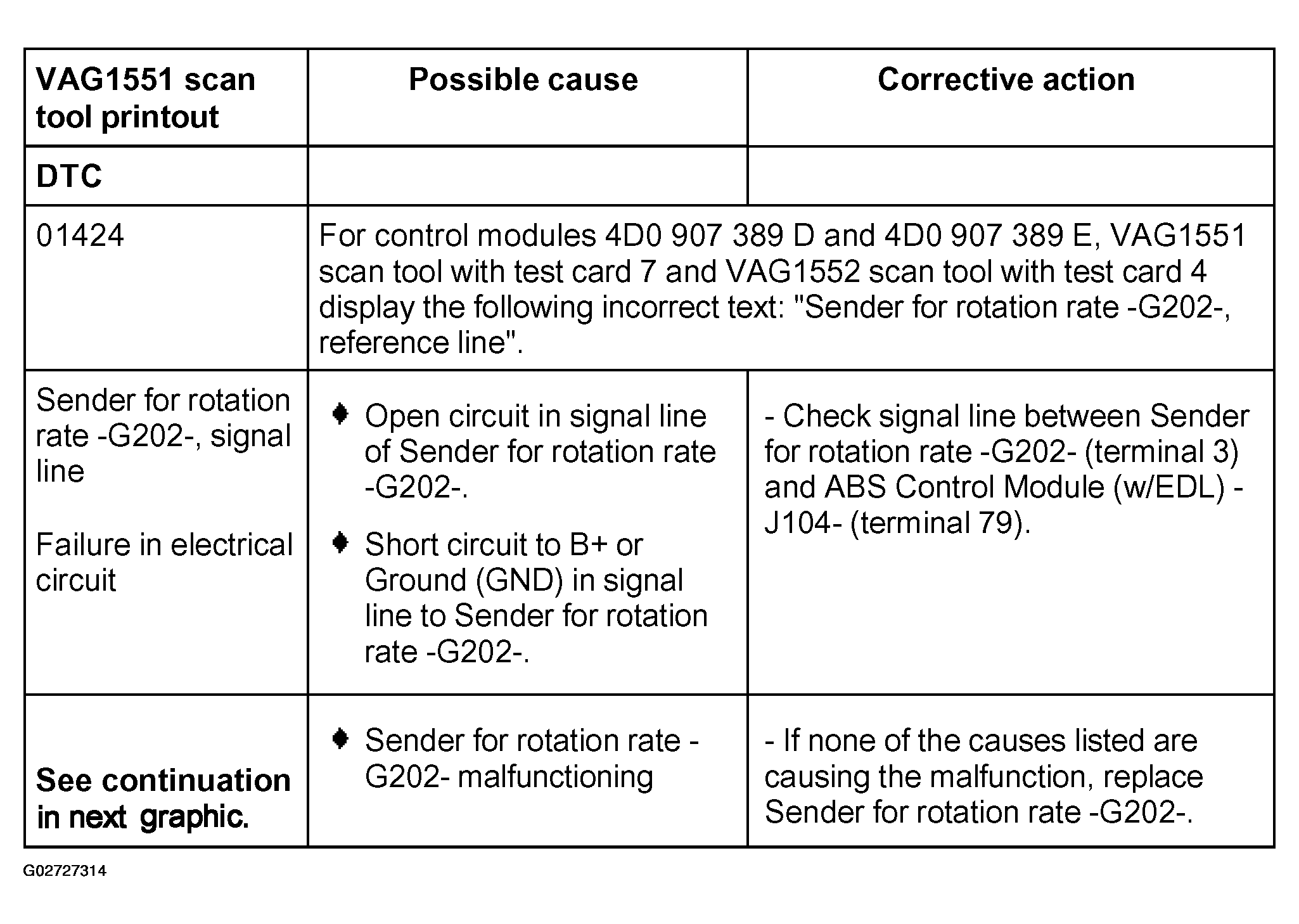

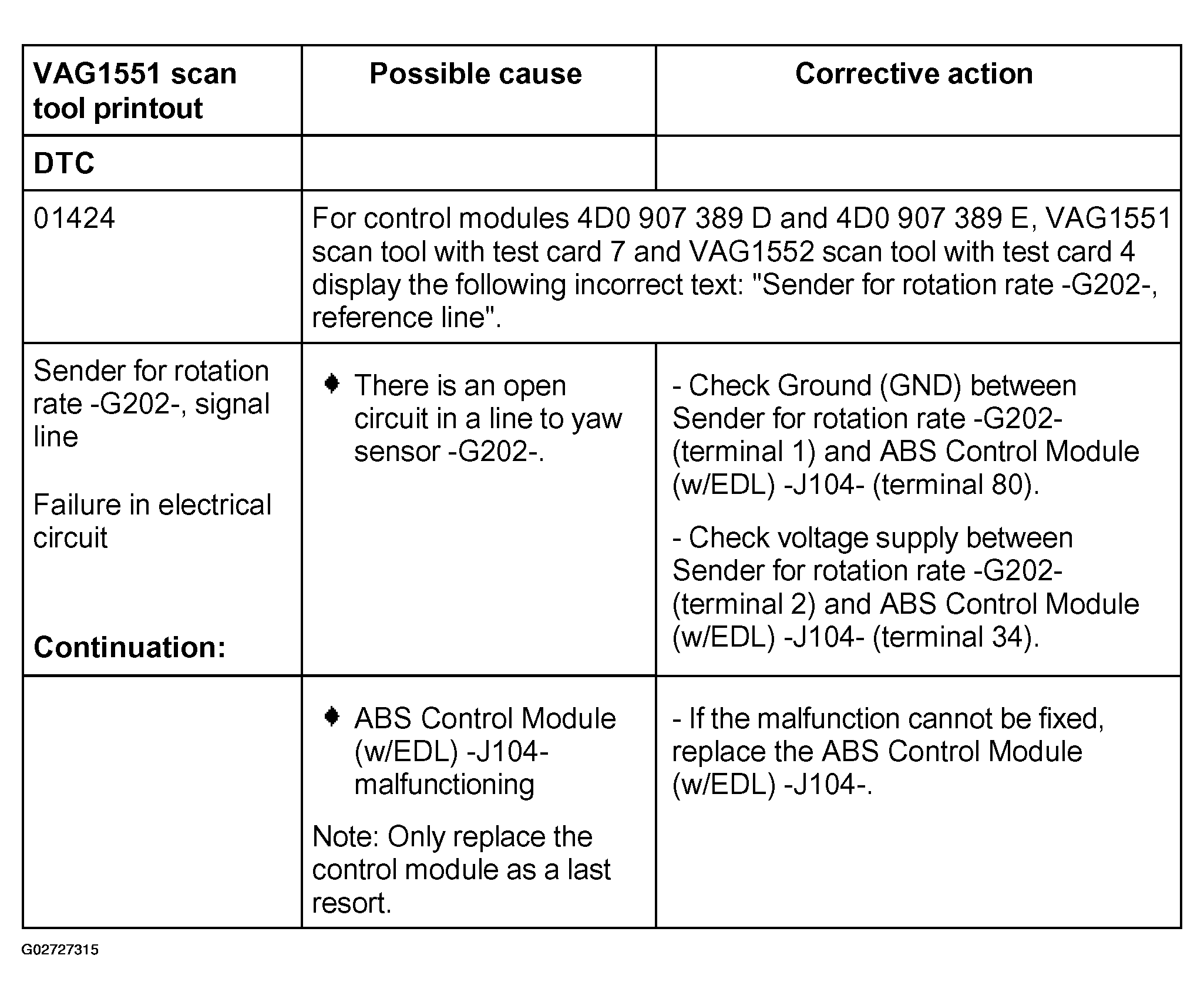

Fig 16: DTC 01424 - Bosch 5.3, With ESP(1 Of 2)

Courtesy of AUDI OF AMERICA, INC.

Fig 17: DTC 01424 - Bosch 5.3, With ESP (2 Of 2)

Courtesy of AUDI OF AMERICA, INC.

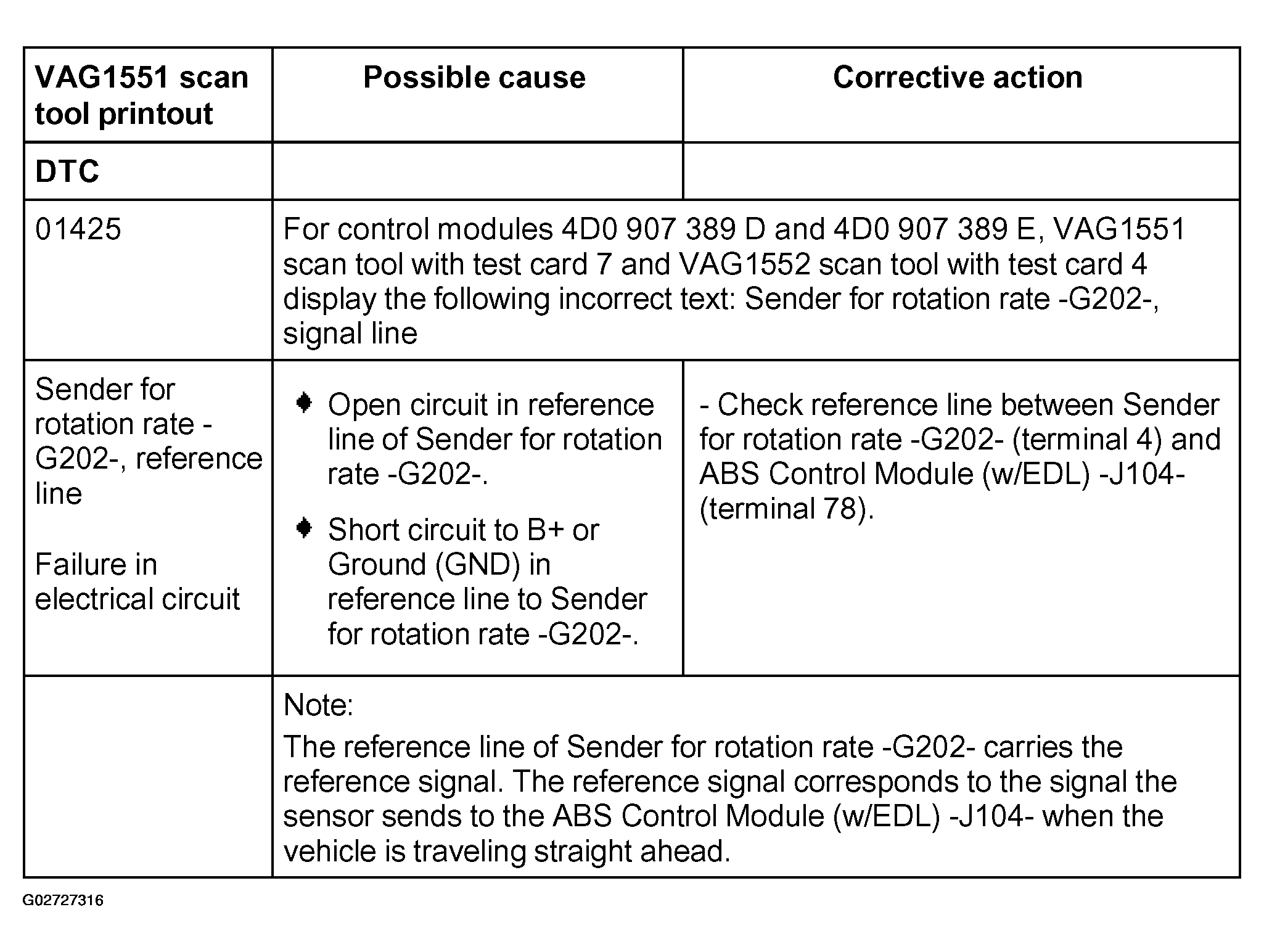

Fig 18: DTC 01425 - Bosch 5.3, With ESP

Courtesy of AUDI OF AMERICA, INC.
