Cellular telephone (preparation) through m.y. 2001, layout

NOTE: The cellular telephone is optional equipment

NOTE: The following list refers to items in Fig 1 .

1. Docking station/retainer
2. Spiral cord
3. Speaker (telephone/navigation) -R39-
   • In driver's B-pillar trim
   • Removing and installing. See SPEAKER (TELEPHONE/NAVIGATION) -R39-, REMOVING AND INSTALLING
4. Radio
   • In center console
   • Removing and installing. See "SYMPHONY" RADIO, REMOVING AND INSTALLING
5. Treble/mid-range or bass loudspeaker
   • In front door panel trim
   • Removing and installing. See LOUDSPEAKERS, REMOVING AND INSTALLING  .
6. Antenna
   • On rear window
7. Operating Electronics and Telephone Control Module -J412-
   • In center console under handbrake lever
   • Removing and installing. See OPERATING ELECTRONICS AND TELEPHONE CONTROL MODULE -J412- THROUGH M.Y. 2001, REMOVING AND INSTALLING
8. Telephone microphone -R38-
   • Integral with front interior light module
   • Removing and installing
   • Through m.y. 1999. See TELEPHONE MICROPHONE -R38- THROUGH M.Y. 1999, REMOVING AND INSTALLING  .
   • From m.y. 2000. See TELEPHONE MICROPHONE -R38- FROM M.Y. 2000, REMOVING AND INSTALLING  .

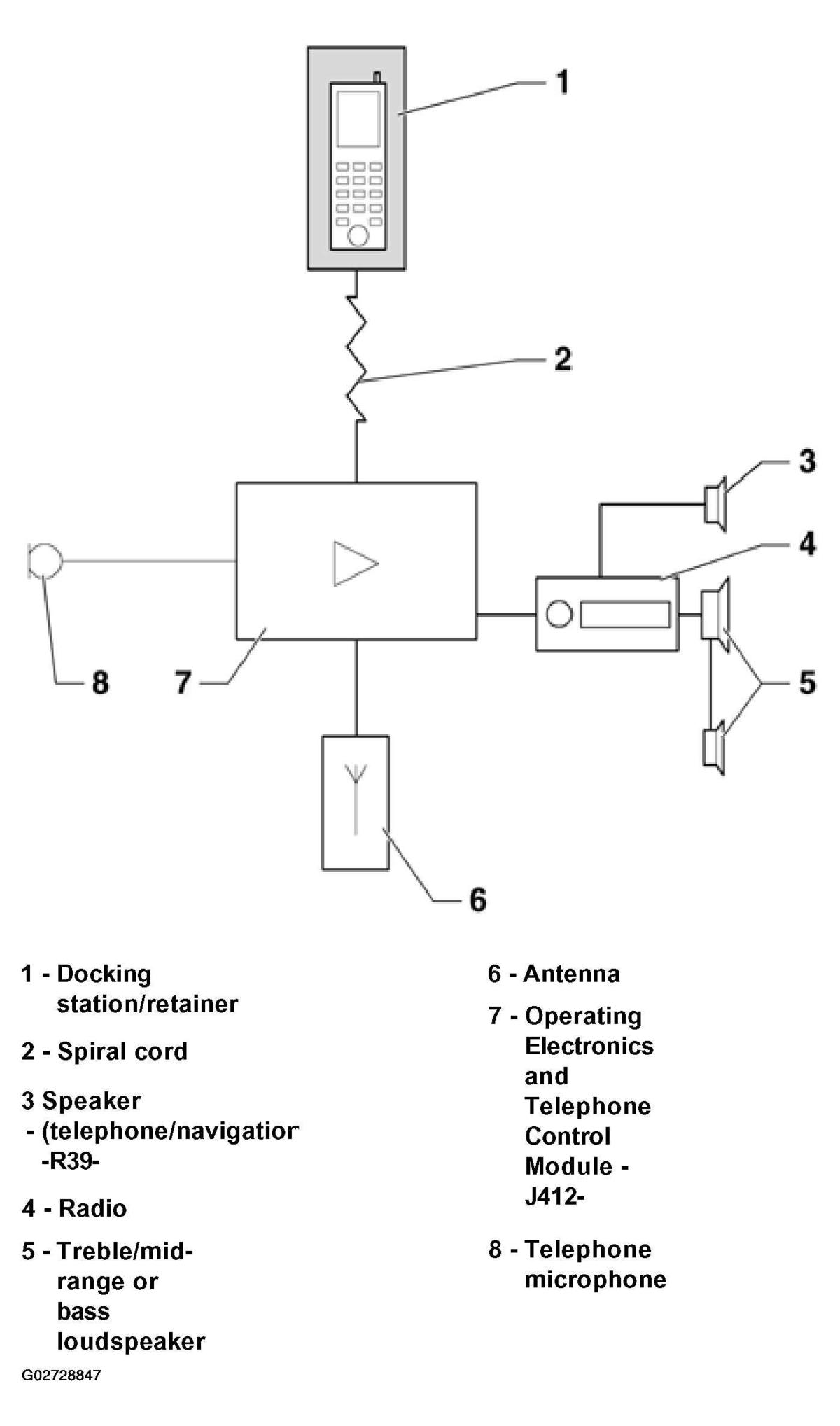

Fig 1: View Of Cellular Telephone Layout (Through M.Y. 2001)

Courtesy of AUDI OF AMERICA, INC.
