"Delta" & "Concert" radio system through m.y. 1999, component overview
NOTE:

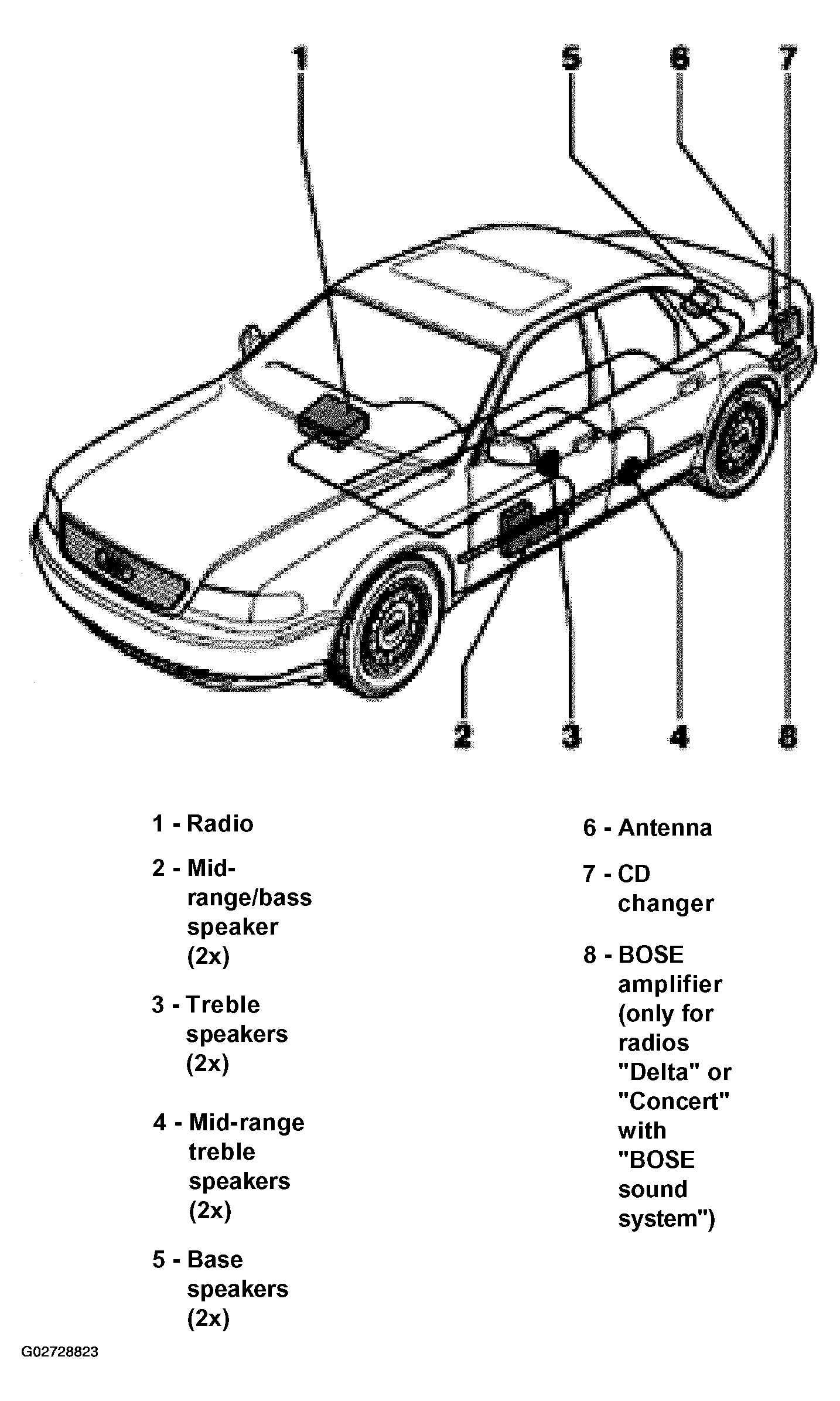

The following list refers to items in Fig 1
.
- Radio
- Installed in center console
- Removing and installing. See "DELTA" & "CONCERT" RADIO, REMOVING AND INSTALLING .
- Mid-range/bass speaker (2x)
- In front door trim (bottom)
- Removing and installing. See LOUDSPEAKERS, REMOVING AND INSTALLING
Technical Data:
- Nominal resistance: 1ohm
- Nominal power: 50 W
- Treble speakers (2x)
- In front door trim (top)
- Removing and installing. See LOUDSPEAKERS, REMOVING AND INSTALLING
Technical Data:
- Nominal resistance: 4ohm
- Nominal power: 25 W
- Mid-range treble speakers (2x)
- In rear door trim (bottom)
- Removing and installing. See LOUDSPEAKERS IN REAR DOORS, REMOVING
Technical Data:
- Nominal resistance: 2 ohm
- Nominal power: 22 W
- Base speakers (2x)
- In rear parcel shelf
- Removing and installing. See LOUDSPEAKERS IN REAR PARCEL SHELF, REMOVING
.
Technical Data:
- Nominal resistance: 2 ohm
- Nominal power: 25 W
- Antenna
- Power antenna or radio/telephone rod antenna
- In left-rear of luggage compartment under side trim
- Removing and installing. See POWER ANTENNA - "DELTA" & "CONCERT" RADIO, REMOVING AND INSTALLING
- CD changer
- In left storage well of luggage compartment
- Checking cable between radio and CD changer. See CABLE BETWEEN RADIO AND CD CHANGER, CHECKING
.
Removing and installing:
- "Delta" radio. See CD CHANGER - "DELTA" RADIO, REMOVING AND INSTALLING .
- "Concert" radio. See CD CHANGER - "CONCERT" RADIO, REMOVING AND INSTALLING .
- BOSE amplifier (only for radios "Delta" or "Concert" with "BOSE sound system")
- In luggage compartment under CD changer
- Removing and installing. See BOSE AMPLIFIER, REMOVING AND INSTALLING
