Left front level control system sensor -G78-, removing and installing: Removing

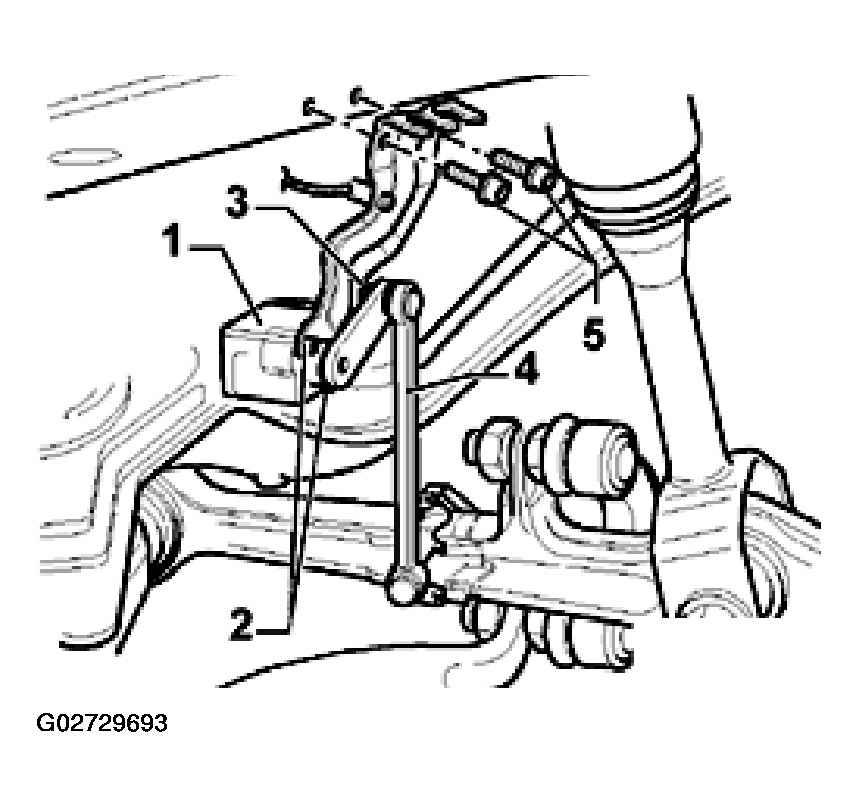

The front level control system sensor -1- is bolted to a retaining plate on the long member with two socket head bolts -5- (5mm).
Disconnect connector.
To remove sensor from retaining plate and linkage, remove hex nut -3- and both socket head bolts -2- (3mm) at level sensor.

Fig 1: Removing Left Front Level Control System Sensor From Retaining Plate And Linkage

Courtesy of AUDI OF AMERICA, INC.

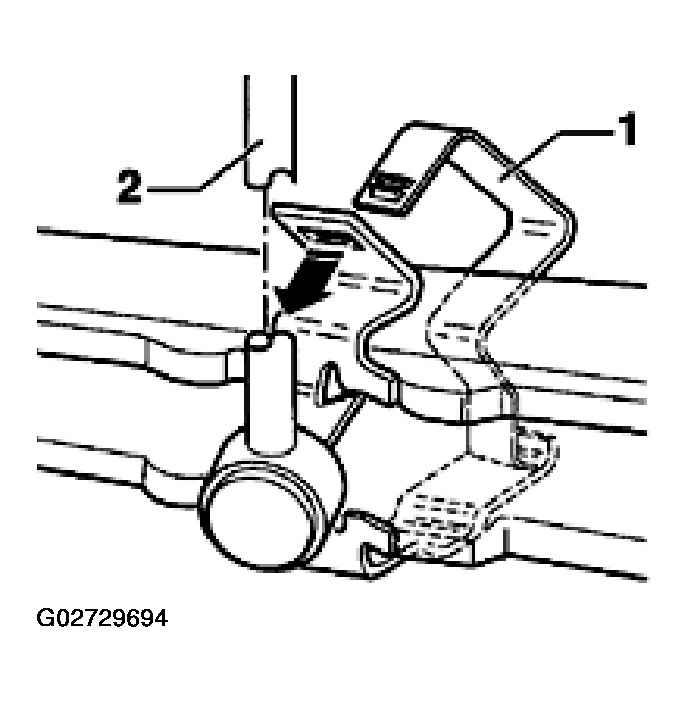

Open clip -1- at control arm by lightly pressing together the catches. Then remove linkage -2-.

Fig 2: Opening Clip & Removing Linkage

Courtesy of AUDI OF AMERICA, INC.
