Power components in seat frame, removing and installing
- Removing seat cover and seat cushion.
NOTE:

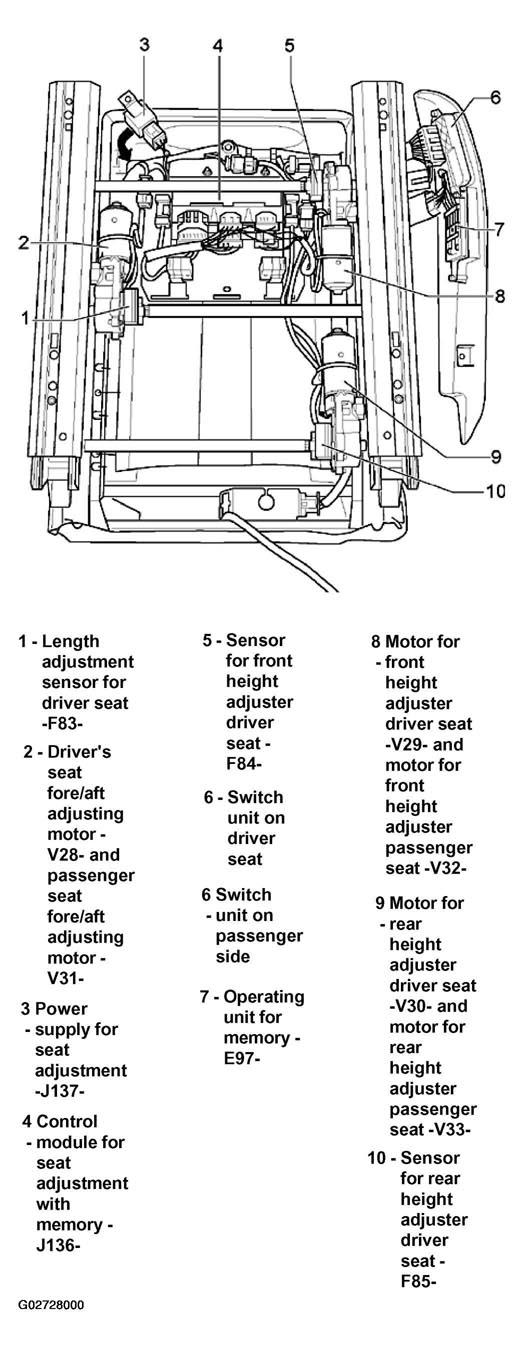

The following list refers to Fig 1.
- 1 - Length adjustment sensor for driver seat -F83-
- Installed only in driver seat
- Removing and installing. See MOTORS AND SENSOR FOR HEIGHT AND LENGTH ADJUSTER, REMOVING AND INSTALLING .
- 2 - Driver's seat fore/aft adjusting motor -V28- and passenger seat fore/aft adjusting motor -V31-
- Removing and installing. See MOTORS AND SENSOR FOR HEIGHT AND LENGTH ADJUSTER, REMOVING AND INSTALLING .
- For faulty motor, remove seat and move forward and backward mechanically. See MECHANICAL SEAT, MOVING FORWARD AND BACK .
- 3 - Power supply for seat adjustment -J137-
- Shown removed
- Component location: under plate for control module (arrow)
- Removing and installing. See CURRENT SUPPLY RELAY FOR SEAT ADJUSTMENT, REMOVING AND INSTALLING .
- 4 - Control module for seat adjustment with memory -J136-
- Installed only in driver seat
- Removing and installing. See CONTROL MODULE FOR SEAT ADJUSTMENT WITH MEMORY, REMOVING AND INSTALLING .
- Connector colors are stamped into connector fields of control module
- 5 - Sensor for front height adjuster driver seat -F84-
- Installed only in driver seat
- Removing and installing. See MOTORS AND SENSOR FOR HEIGHT AND LENGTH ADJUSTER, REMOVING AND INSTALLING .
- 6 - Switch unit on driver seat
- Switch for length adjustment -E61-
- Switch for front height adjuster -E62-
- Switch for rear height adjuster -E63-
- Switch for seatback adjustment -E96-
- Switch for headrest adjustment -E167-
- Removing and installing. See SEAT SWITCH, REMOVING AND INSTALLING .
- 6 - Switch unit on passenger side
- Switch for length adjustment -E61-
- Switch for front height adjuster -E65-
- Switch for rear height adjuster -E66-
- Switch for seatback adjustment -E98-
- Switch for headrest adjustment -E170-
- Removing and installing. See SEAT SWITCH, REMOVING AND INSTALLING .
- 7 - Operating unit for memory -E97-
- Removing and installing. See SEAT SWITCH, REMOVING AND INSTALLING .
- 8 - Motor for front height adjuster driver seat -V29- and motor for front height adjuster passenger seat -V32-
- Removing and installing. See MOTORS AND SENSOR FOR HEIGHT AND LENGTH ADJUSTER, REMOVING AND INSTALLING .
- 9 - Motor for rear height adjuster driver seat -V30- and motor for rear height adjuster passenger seat -V33-
- Removing and installing. See MOTORS AND SENSOR FOR HEIGHT AND LENGTH ADJUSTER, REMOVING AND INSTALLING .
- 10 - Sensor for rear height adjuster driver seat -F85-
- Installed only in driver seat
- Removing and installing. See MOTORS AND SENSOR FOR HEIGHT AND LENGTH ADJUSTER, REMOVING AND INSTALLING .
