Seatback mechanical folding table, removing and installing: Removing

Open folding table.

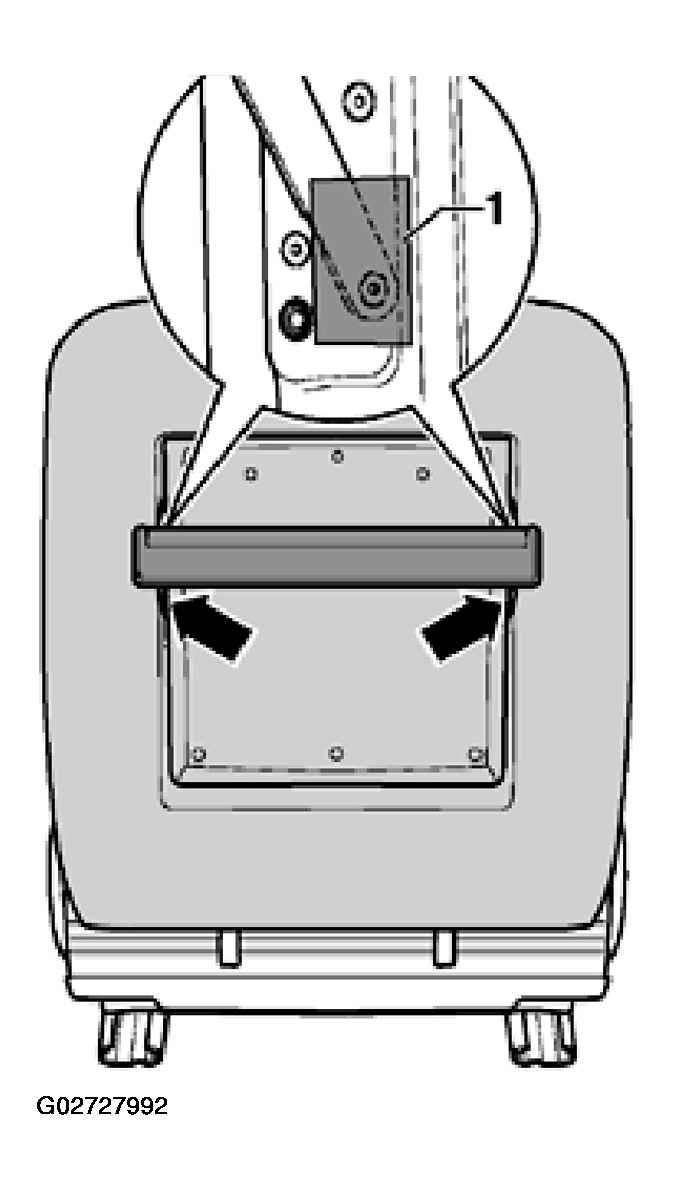

To protect cover, adhere cloth-reinforced adhesive tape -1- onto hinges (arrows).

Fig 1: Adhering Cloth-Reinforced Adhesive Tape Onto Hinges

Courtesy of AUDI OF AMERICA, INC.

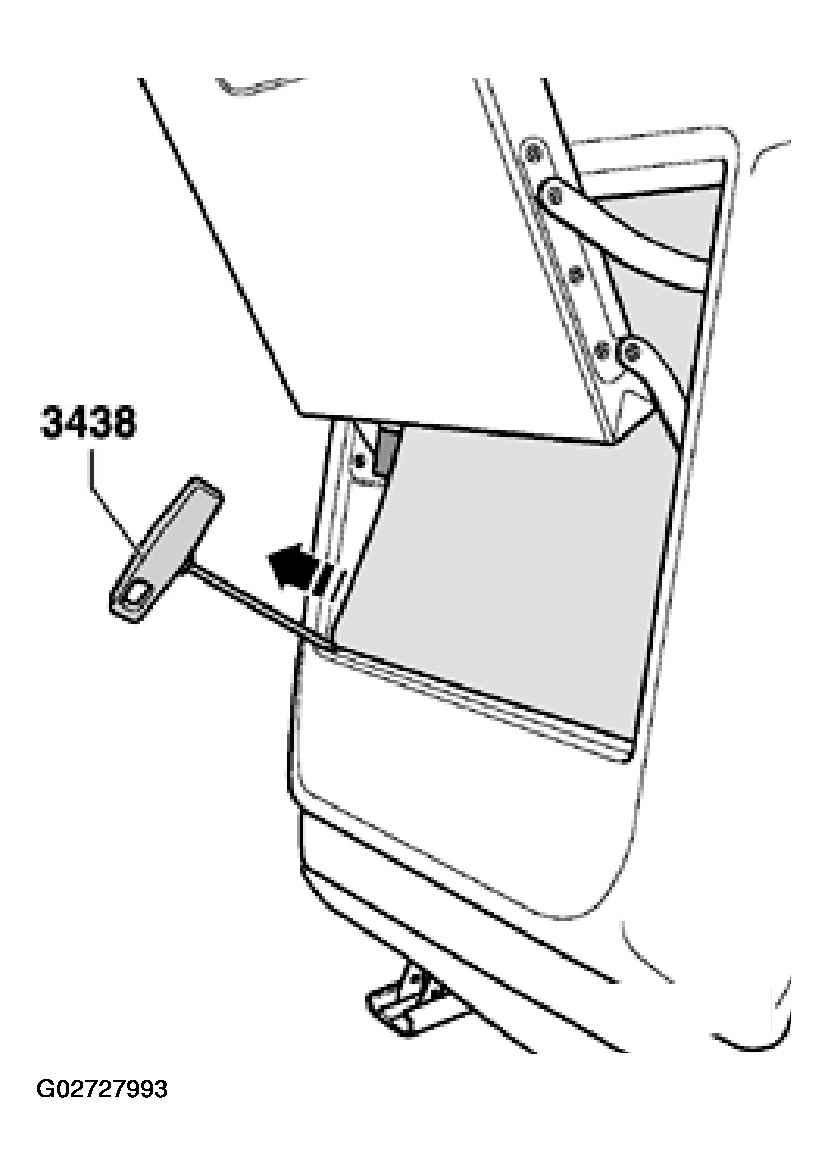

Fig 2: Pulling Out Backrest Using Hook 3438

Courtesy of AUDI OF AMERICA, INC.

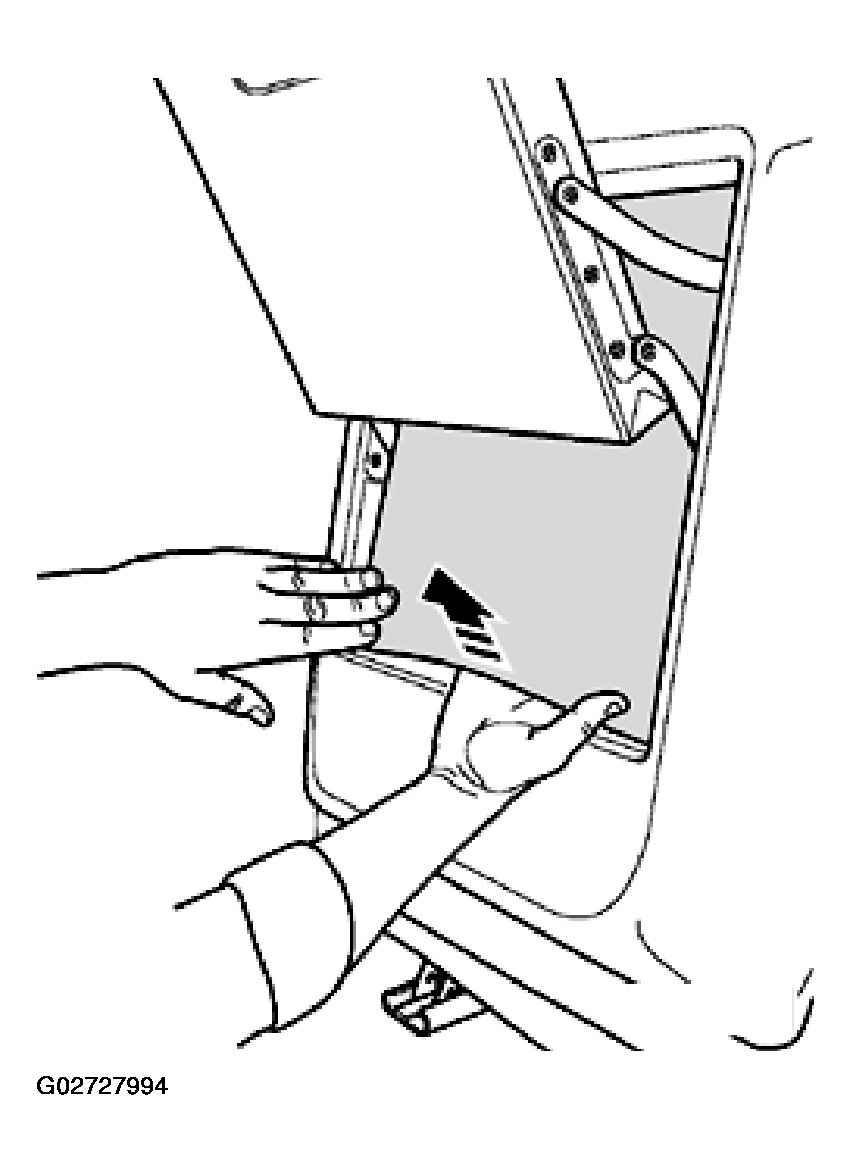

Grasp below the backrest trim by hand and bend it in the center area (arrow) to the rear.
Remove backrest trim from Velcro connection in this manner.

Fig 3: Grasping Below Backrest Trim & Bend It In Center To Rear

Courtesy of AUDI OF AMERICA, INC.

Lift the still bowed trim over both stop buffers and remove backrest trim downward.

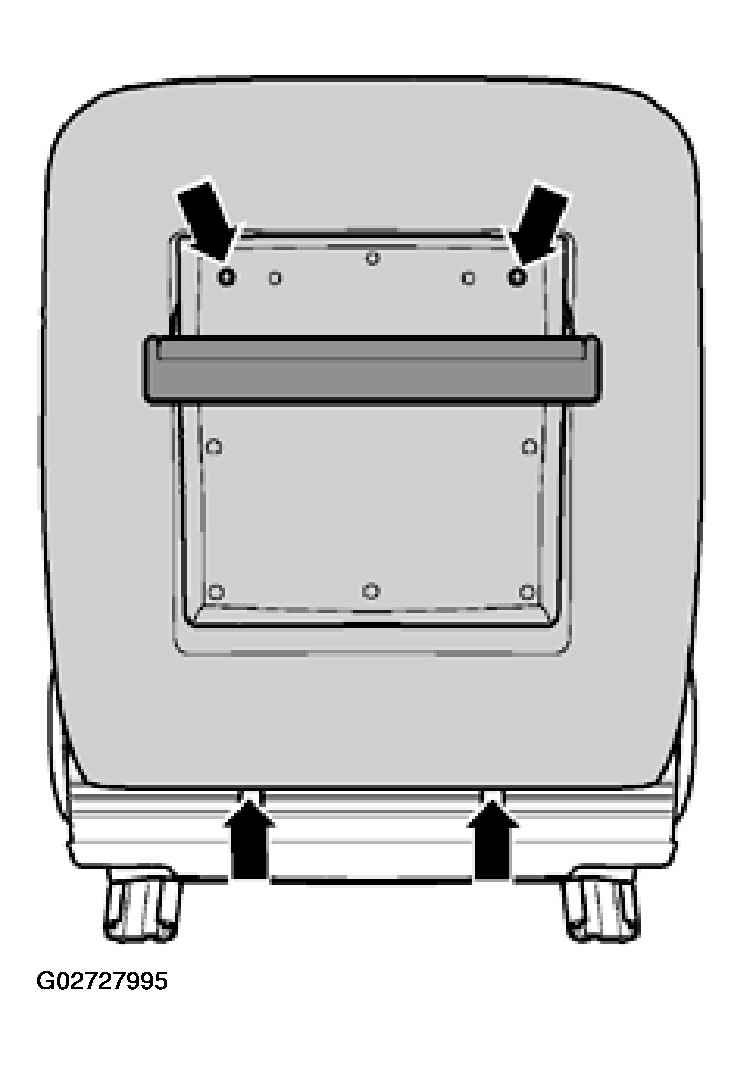

Remove bolts (arrows) and remove mechanical folding table.

Fig 4: Removing Bolts & Mechanical Folding Table

Courtesy of AUDI OF AMERICA, INC.
