Inner seat frame trim, removing and installing

CAUTION: Note safety specifications when working on airbag. See appropriate Air Bag Restraint Systems article in Restraints.

Remove front seat. See FRONT SEAT, REMOVING AND INSTALLING .
Remove bolts -1- (2 Nm/18 in.lb.). See Fig 1.
Remove trim -3-.

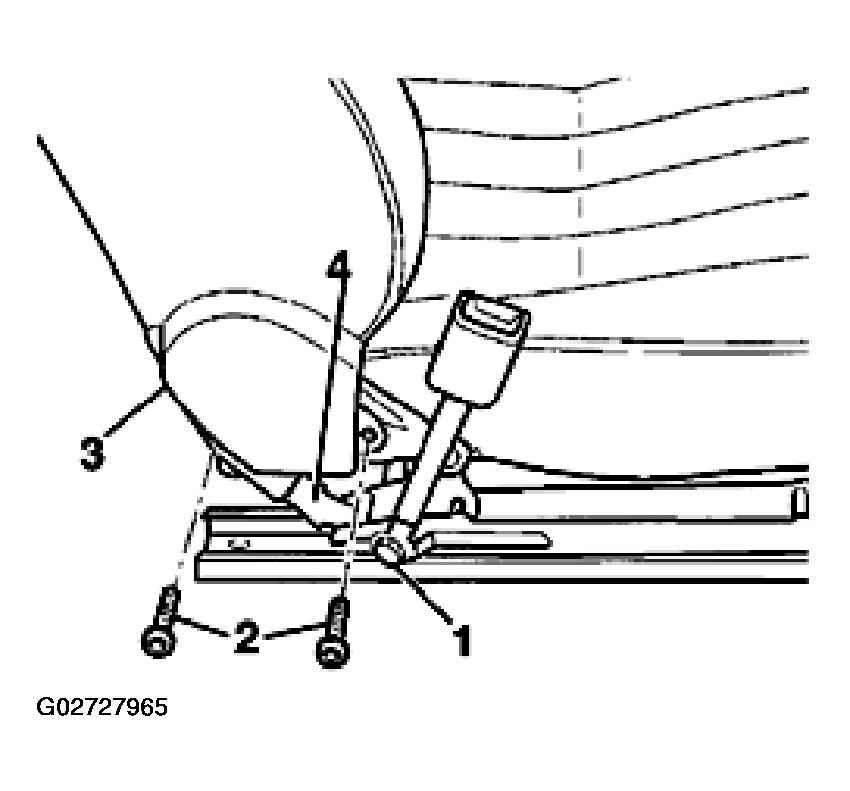

Fig 1: Removing Bolts & Inner Seat Frame Trim
Courtesy of AUDI OF AMERICA, INC.

CAUTION: For vehicles with side airbag note instructions when installing seats. See VEHICLES WITH SIDE AIRBAG: .
