Headrests with monitor, removing and installing: Removing

• Remove front seat. See FRONT SEAT, REMOVING AND INSTALLING .
• Remove outer trim panel for seat frame. See SEAT FRAME TRIM, REMOVING AND INSTALLING .

Seat without folding table (where applicable)

• Remove backrest panel. See REAR SEATBACK, REMOVING AND INSTALLING .

Seat with folding table (where applicable)

• Remove folding table. See SEATBACK MECHANICAL FOLDING TABLE, REMOVING AND INSTALLING .

• Remove hose clamps -1- and -2-.
• Remove bolt -3- at cable clip.

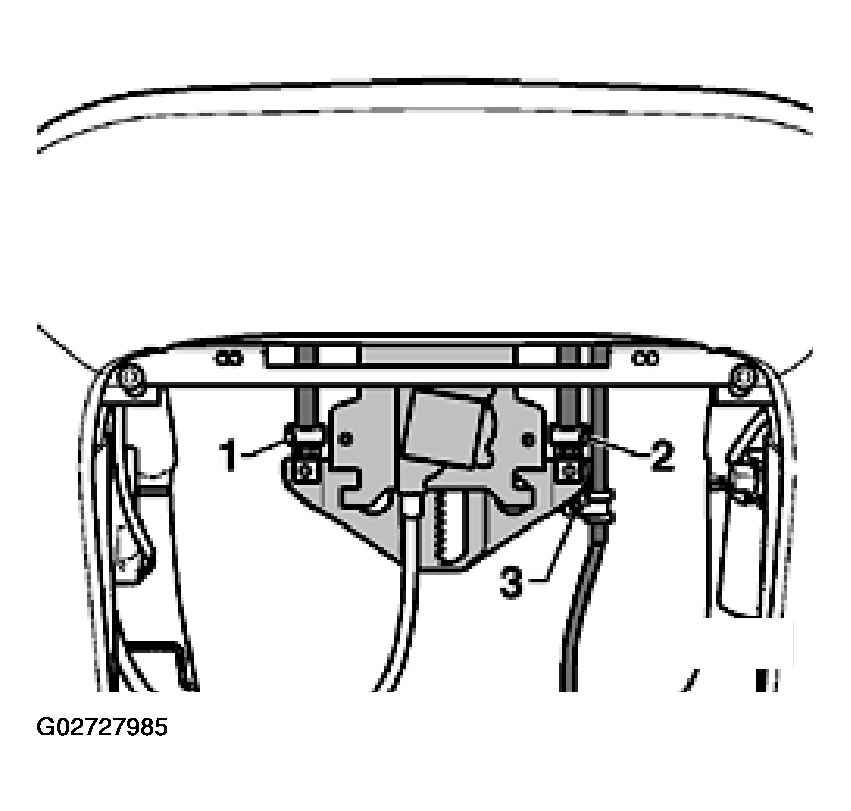

Fig 1: Removing Hose Clamps & Bolt
Courtesy of AUDI OF AMERICA, INC.
• Unclip wire connector from front bracket under seating surface (arrow).

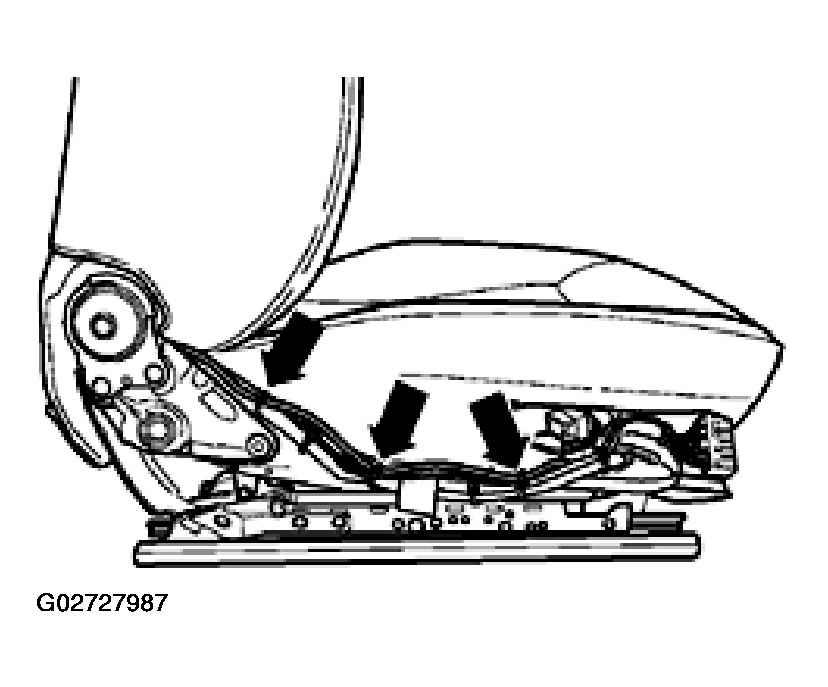

Fig 2: Unclipping Wire Connector From Front Bracket Under Seating Surface
Courtesy of AUDI OF AMERICA, INC.
• Cut cable ties (arrows) and pull free the electrical wire to monitor.

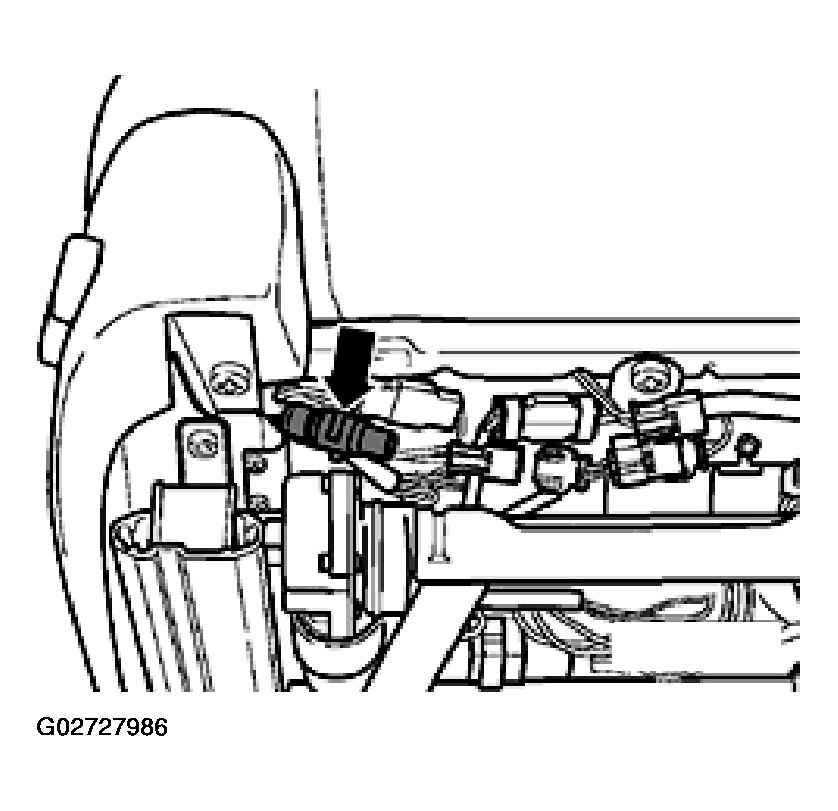

Fig 3: Locating Cable Ties
Courtesy of AUDI OF AMERICA, INC.
• Pull electrical wire to monitor through to the rear.
• Press release button (arrow) and pull off headrest upward.

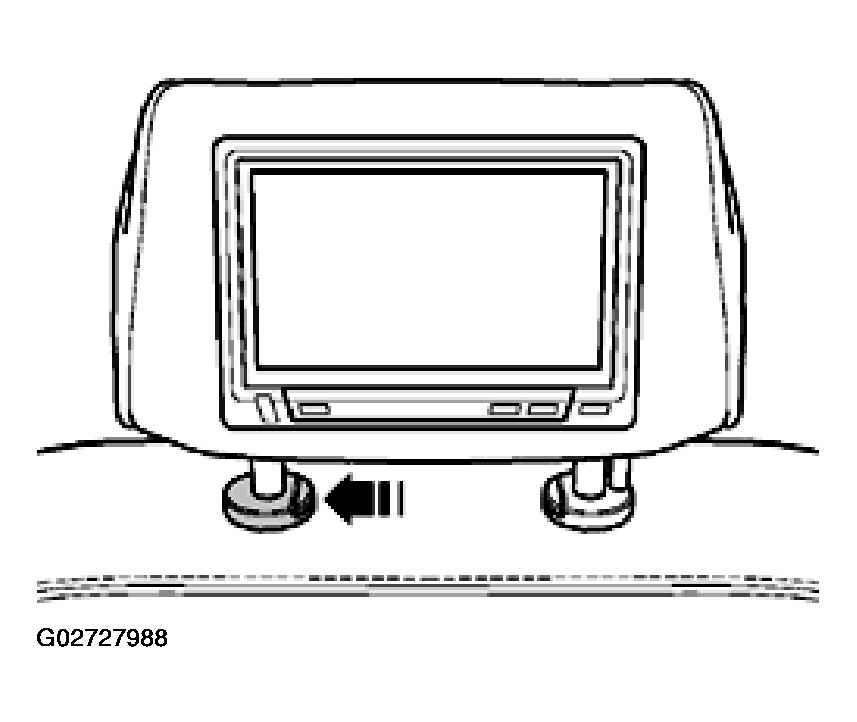

Fig 4: Pressing Release Button
Courtesy of AUDI OF AMERICA, INC.
• Carefully place headrest with monitor onto seating surface - electrical wire is still inside headrest guide.
• Release headrest guide with wiring using a socket insert 17 mm -item 1-. See Fig 5.
  NOTE: Depicted in illustration with backrest cushion removed.

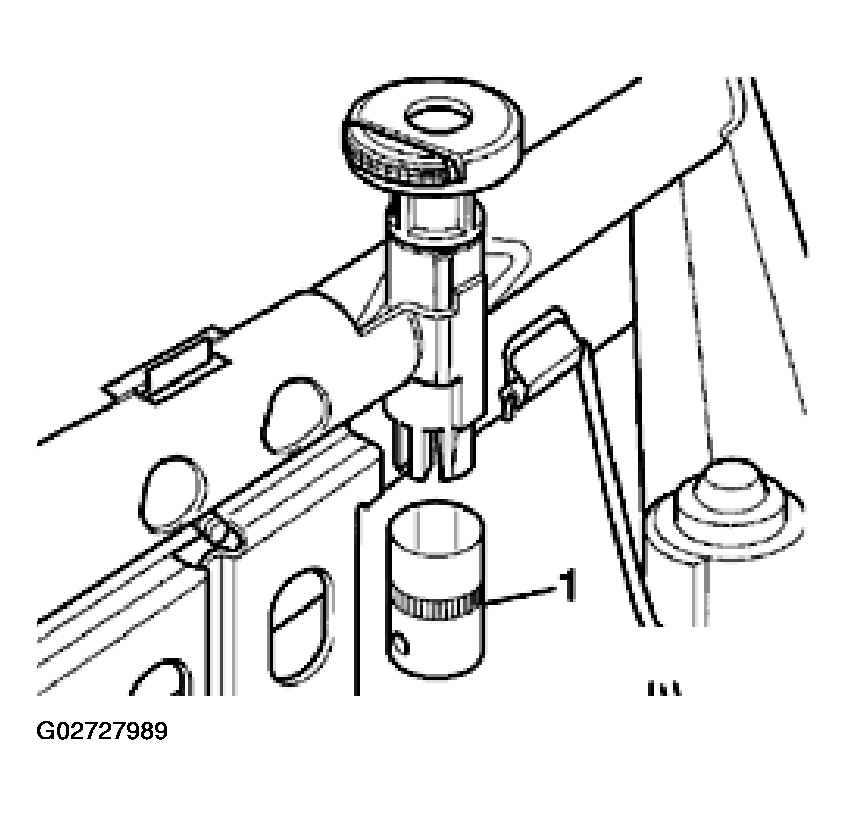

Fig 5: Releasing Headrest Guide With Wiring Using Socket Insert
Courtesy of AUDI OF AMERICA, INC.
• Remove headrest guide together with electrical wire upward out of backrest (arrows).

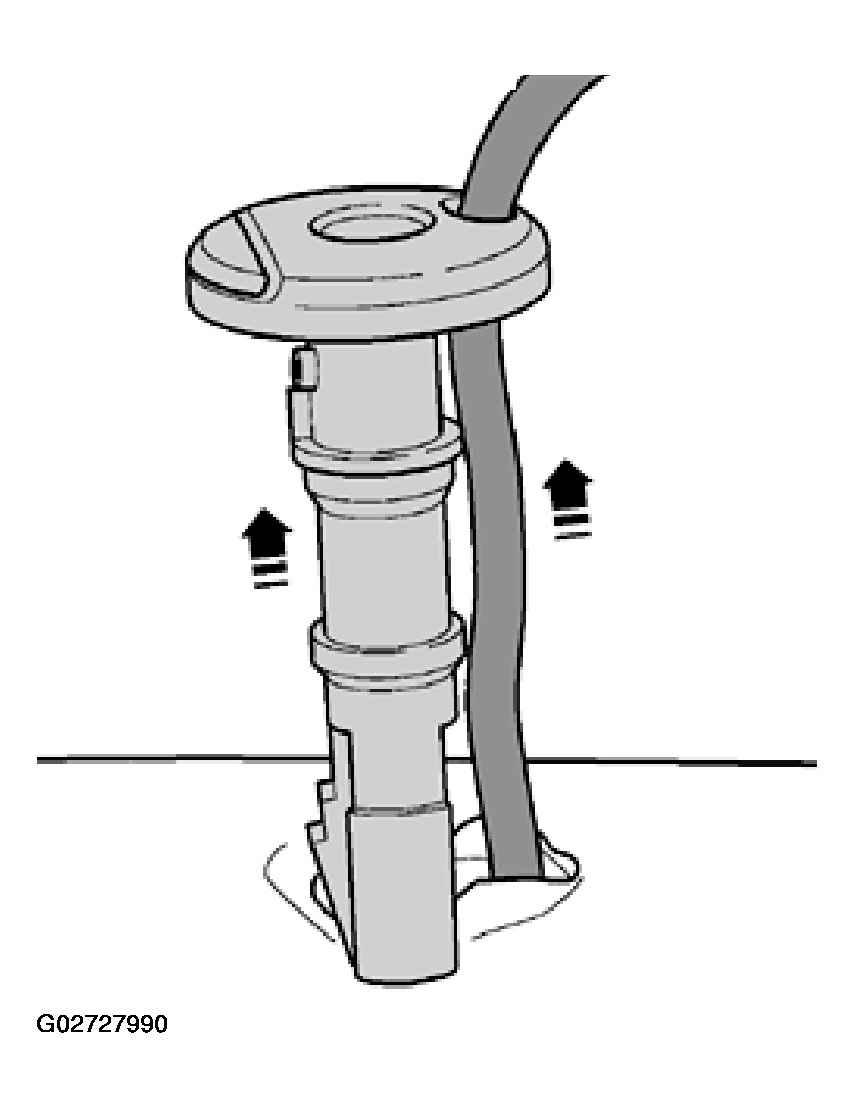

Fig 6: Removing Headrest Guide Together With Electrical Wire Upward Out Of Backrest
Courtesy of AUDI OF AMERICA, INC.
• Remove cable connector from backrest through headrest guide mount.
