Center armrest, removing and installing: Notes

NOTE: The following list refers to Fig 1.

Armrest
- Remove cover in center console. See REMOVING CENTER CONSOLE COVER .
- Disconnect harness connector for lighting. See DISCONNECTING CONNECTOR FOR LIGHTING .
- Remove vent console. See REMOVING VENT CONSOLE .
- For vehicles with telephone installation, disconnect harness connector. See DISCONNECTING CONNECTOR FOR TELEPHONE .
- Pull telephone cable under air shaft through toward front.
- Remove cover -6-. See SUPPORT FOOT COVER, REMOVING AND INSTALLING .
- Remove bolt 7- (1x).
- Remove center armrest -1- with support foot.
Support foot
Grommet
Mount
- For bracket for center armrest
Center console
Cover
- Removing. See SUPPORT FOOT COVER, REMOVING AND INSTALLING .
Socket-head bolt, 22 Nm

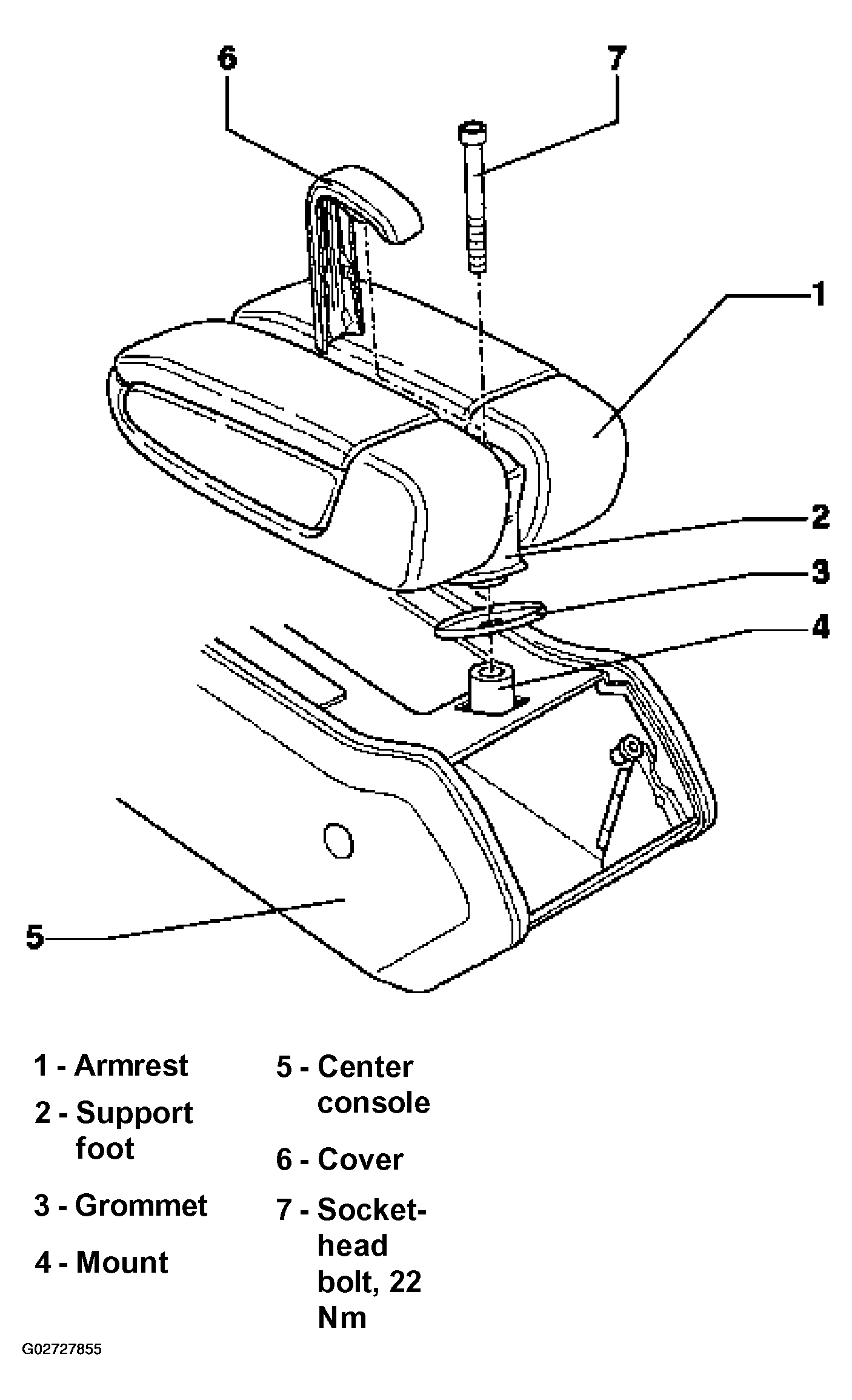

Fig 1: Identifying Center Armrest (From 10.98 On)

G02727855

Courtesy of AUDI OF AMERICA, INC.
