Upper C-pillar trim, removing and installing

NOTE: The following list refers to Fig 1.

Upper C-pillar trim
- Removing:
  - Remove rear seatback or remove power adjustable individual seat. See REAR SEATBACK, REMOVING AND INSTALLING or ELECTRICALLY ADJUSTABLE INDIVIDUAL SEATS, REMOVING AND INSTALLING .
  - Remove C-pillar trim lower. See LOWER C-PILLAR TRIM, REMOVING AND INSTALLING .
  - Remove later front retaining clip of hat shelf.
  - Remove screw -2-.
  - Unclip lower C-pillar trim -3-.
Phillips-head screw
- 0.5 Nm (4 in.lb.)
C-pillar
Retaining clip
- 3 parts
Side glass

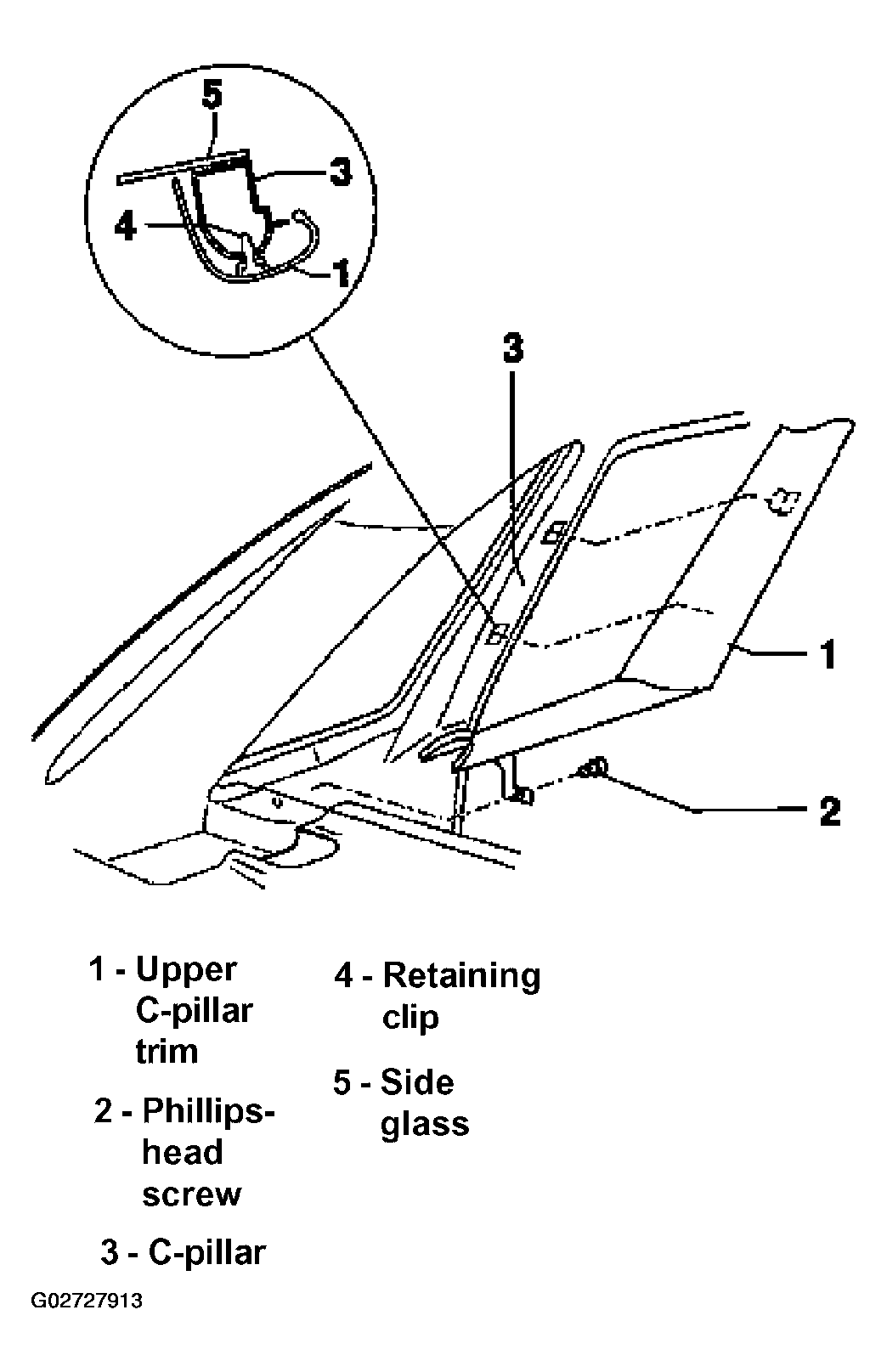

Fig 1: Identifying Upper C-Pillar Trim Components

G02727913

Courtesy of AUDI OF AMERICA, INC.
