Rear window shade control module -J262-, removing and installing
Rear window shade control module -J262-, removing and installing
Unclip cover -8- for sunshade. See
Hat shelf, removing and installing
.
Remove connector at control module.
Remove nuts (arrows) and remove control module.

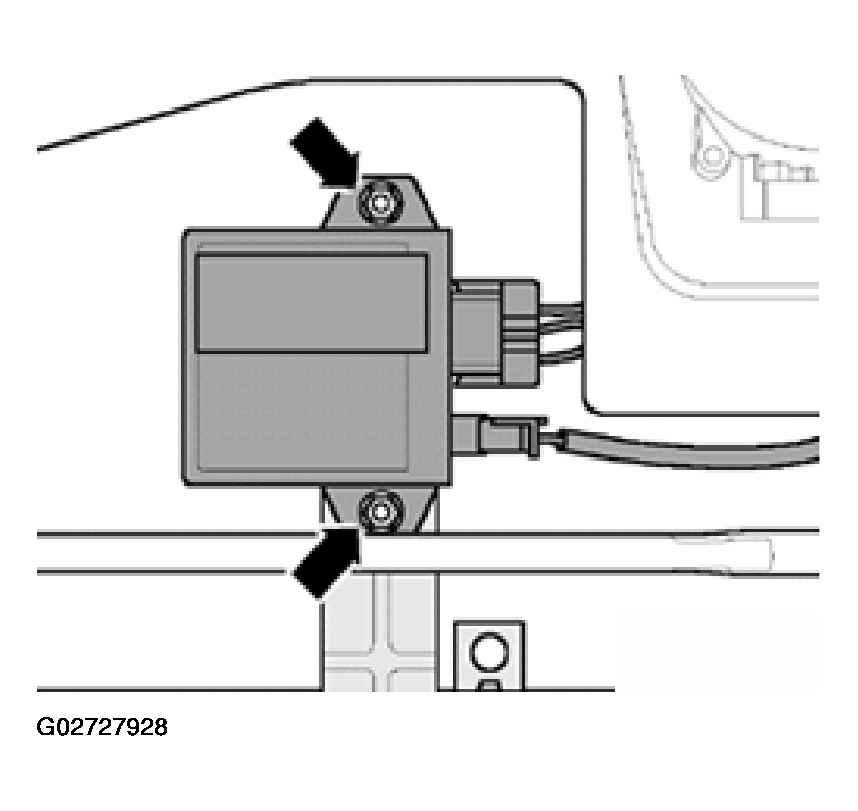

Fig 1: Removing/Installing Rear Window Shade Control Module -J262-
Courtesy of AUDI OF AMERICA, INC.
