Closeout panel trim, removing and installing
Remove pin -2- from expanding clip and remove expanding clip from trim.
Pull out closeout panel trim -1-.
Disconnect connector for luggage compartment illumination.

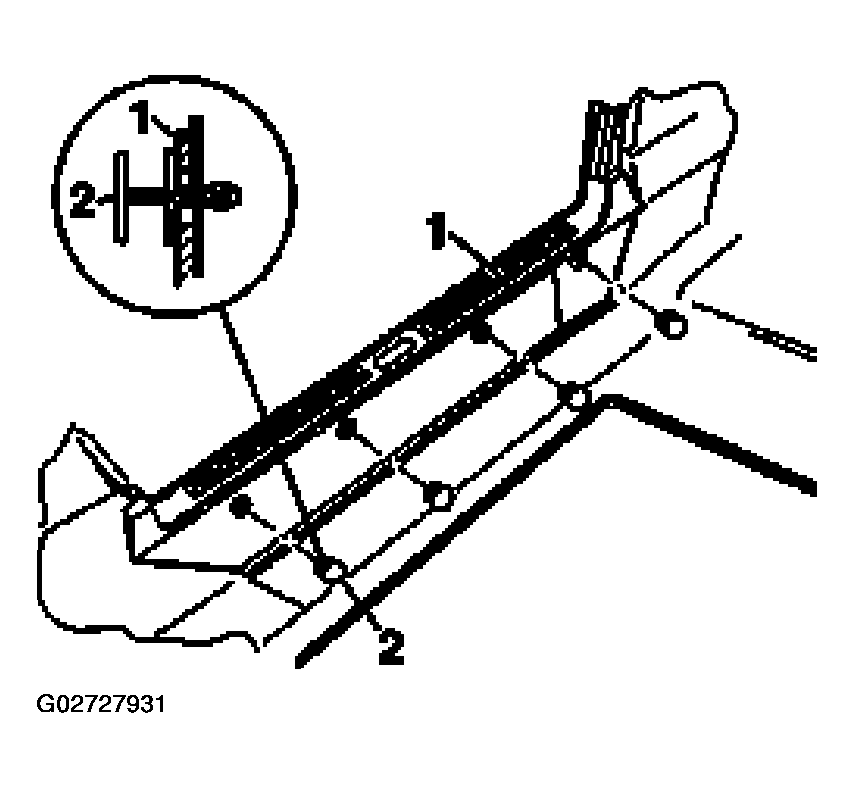

Fig 1: Removing/Installing Closeout Panel Trim
Courtesy of AUDI OF AMERICA, INC.
