Component locations, overview
NOTE:

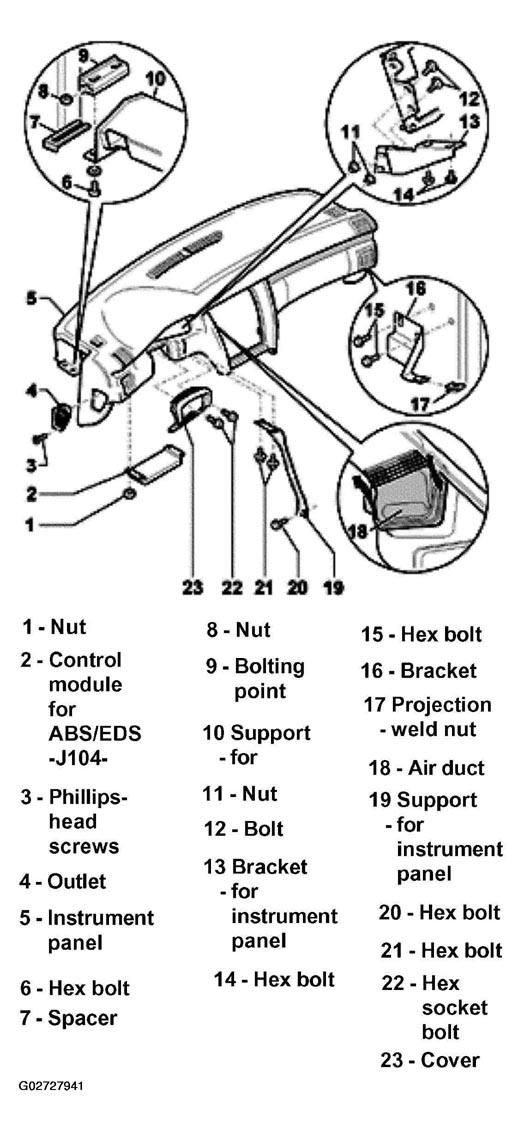

The following list refers to Fig 1.
- Nut
- 6 Nm (53 in.lb.)
- 4 parts
- Control module for ABS/EDS -J104-
- Phillips-head screws
- 1.5 Nm (13 in.lb.)
- Outlet
- Remove for height adjustment of instrument panel
- Instrument panel
- Removing and installing. See INSTRUMENT PANEL, REMOVING AND INSTALLING .
- Hex bolt
- 45 Nm (33 ft.lb.)
- 4 parts
- Spacer
- For height adjustment of instrument panel
- Nut
- 4 parts
- Slide on to A-pillar at bolting point -9-
- Bolting point
- For instrument panel A-pillar
- Support for instrument panel
- Can be separated from instrument panel with instrument panel removed
- Nut
- 10 Nm (7 ft.lb.)
- 2 parts
- Bolt
- 10 Nm (7 ft.lb.)
- 2 parts
- Bracket for instrument panel
- Hex bolt
- 22 Nm (16 ft.lb.)
- 2 parts
- Hex bolt
- 7 Nm (62 in.lb.)
- 4 parts
- Bracket
- Projection weld nut
- Air duct
- To remove instrument panel left and right from air distributor housing (arrows)
- Support for instrument panel
- Hex bolt
- 22 Nm (16 ft.lb.)
- Hex bolt
- 22 Nm (16 ft.lb.)
- 2 parts
- Hex socket bolt
- 2.5 Nm (22 in.lb.)
- 2 parts
- Cover
