CD changer - "Delta" radio, removing and installing: Removing

Open and remove storage compartment lid in luggage compartment.
Remove four recessed hex-screws -2- and remove frame -1- from side compartment.

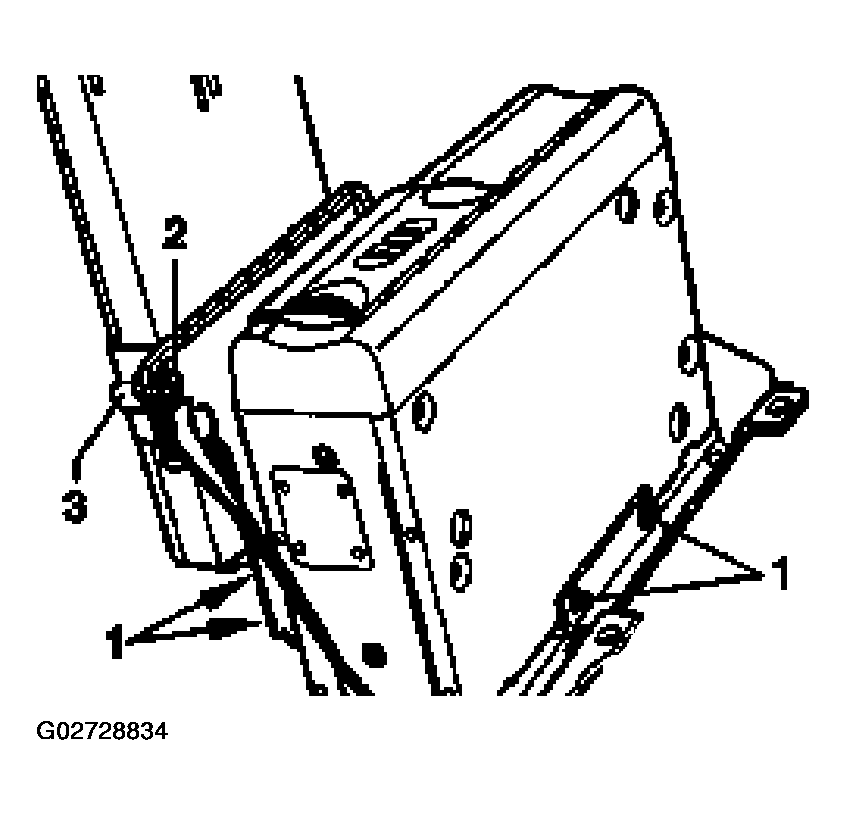

Fig 1: Removing CD Changer Four Recessed Hex-Screws & Frame - Delta Radio
Courtesy of AUDI OF AMERICA, INC.
Disconnect electrical connectors on CD changer (and telephone sending/receiving unit if necessary).
Remove four recessed hex-screws -1- and remove CD changer from frame.

Fig 2: Removing CD Changer & Four Recessed Hex-Screws - Delta Radio

Courtesy of AUDI OF AMERICA, INC.
