"Delta" & "Concert" radio, removing and installing: Removing

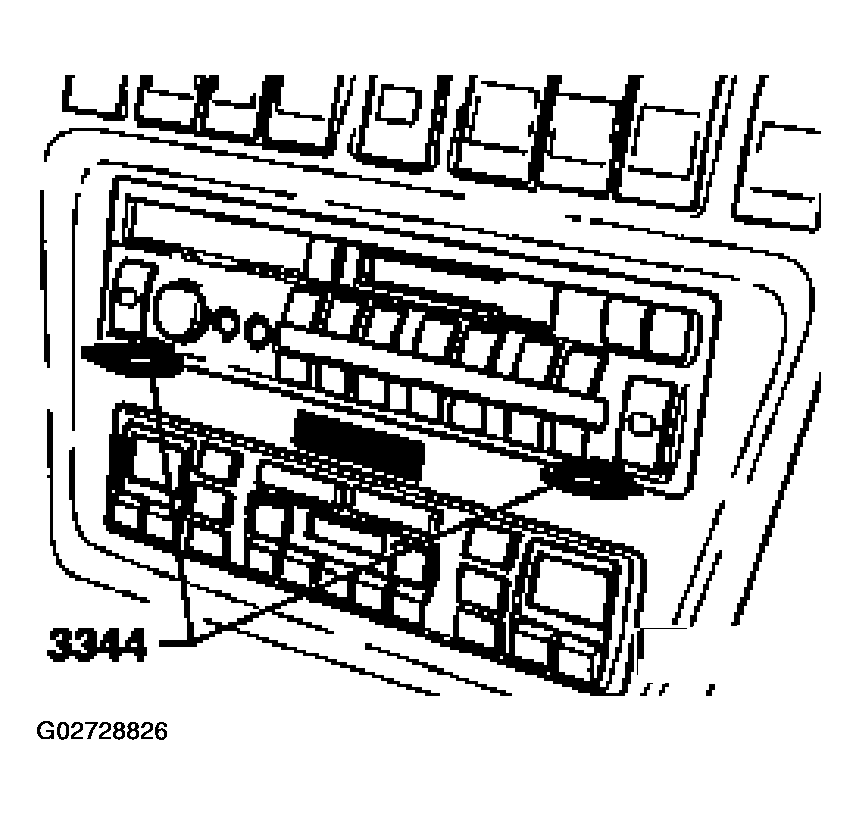

- Insert T10057 radio removal tool into front panel of radio, as shown.
Courtesy of AUDI OF AMERICA, INC.
- Top L: upper left
- Top R: upper right
- Remove radio from instrument panel together with T10057.
- Disconnect electrical connectors and antenna wire.
