Display group 008-Right footwell flap motor -V109-

If the difference between the specified and actual feedback value is greater than 3 units, check the Notes on READ MEASURING VALUE BLOCK (FUNCTION 08) .
If the readouts in display fields 3 or 4 are not within the permissible range. See DIAGNOSTIC TROUBLE CODE (DTC) TABLE .

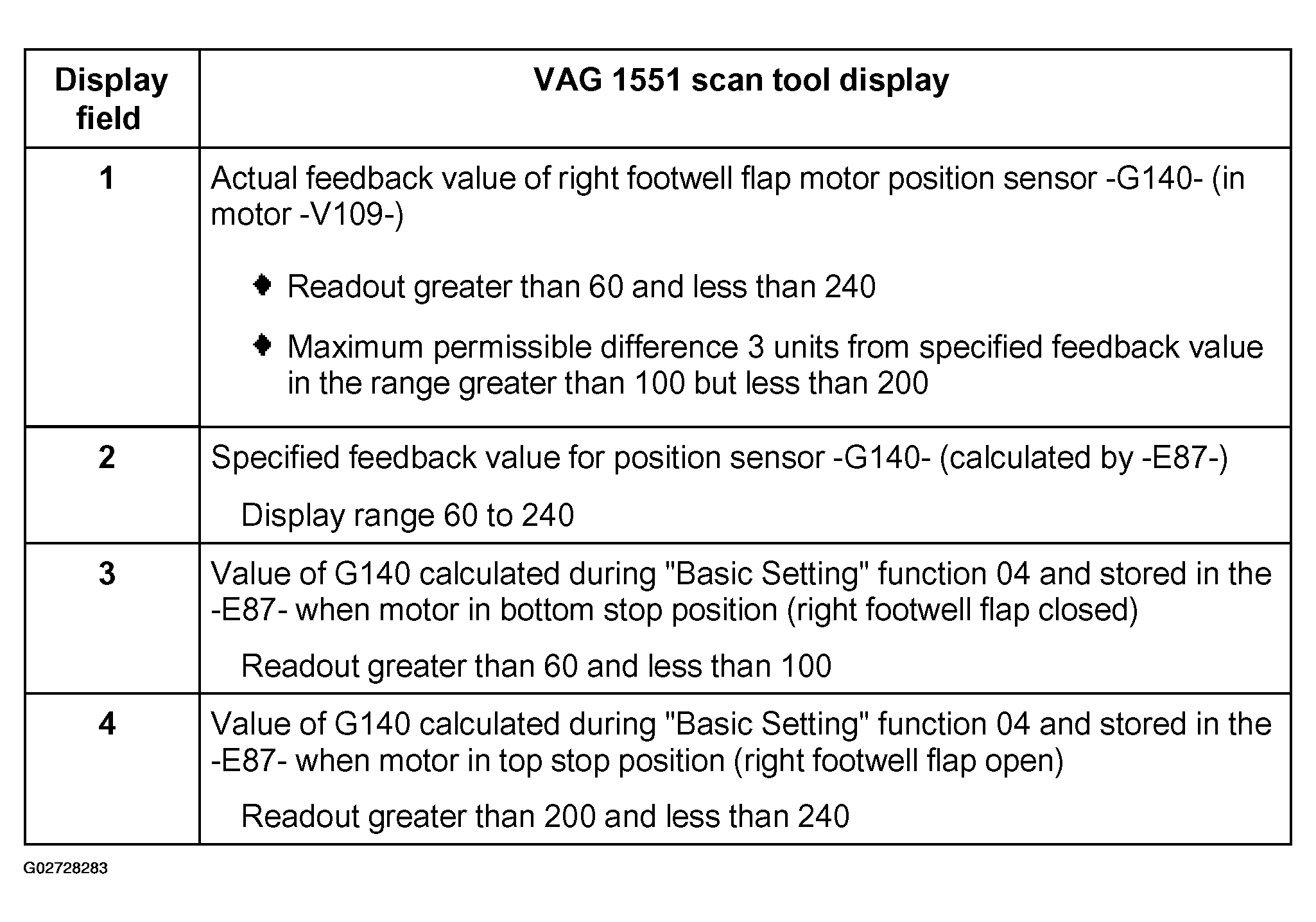

Fig 1: VAG 1551 Scan Tool Display - Display Group 008
Courtesy of AUDI OF AMERICA, INC.
If the feedback value in display field 1 is less than 5 (short circuit) or greater than 250 (open circuit), perform electrical test. See AUTOMATIC CLIMATE CONTROL SYSTEM, ELECTRICAL TESTS .
