Wiper fluid reservoir, removing and installing: Removing

Remove cover above air filter in engine compartment and then remove air filter.
Remove mounting bolts -10- (3 x SW10) (tightening torque: 5 Nm).
First disconnect hose connections and then electrical harness connectors at pumps -1- and -2-.
Take wiper fluid reservoir -3- out of engine compartment.

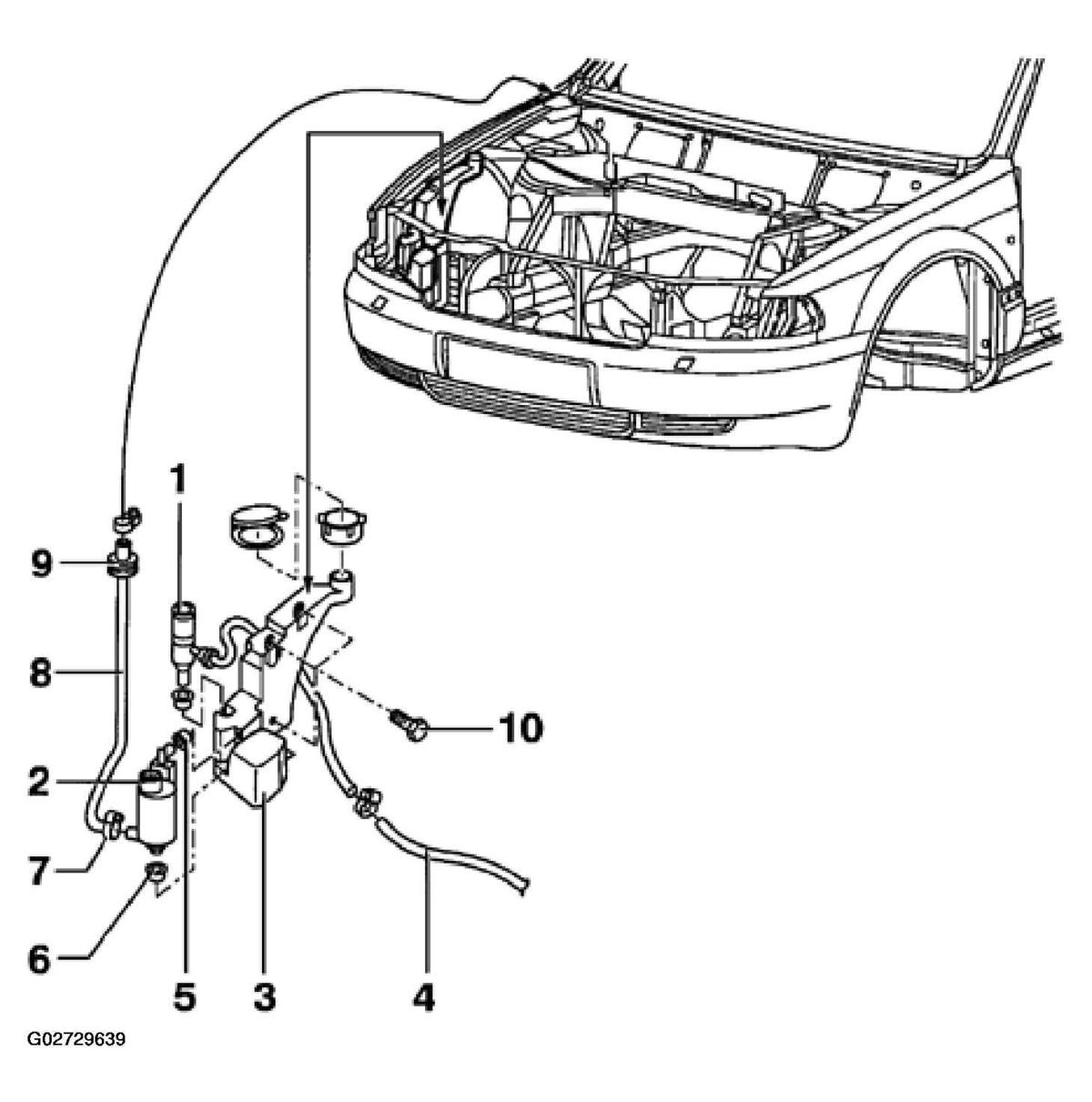

Fig 1: Removing Wiper Fluid Reservoir

Courtesy of AUDI OF AMERICA, INC.
