Telephone docking station in center console, removing and installing: Removing

The docking station/retainer bracket -2- is fastened to baseplate -5- with screws -1- (2 Nm).
Remove screws -3- (2.5 Nm) through slit in felt -4- to remove baseplate, -5-.

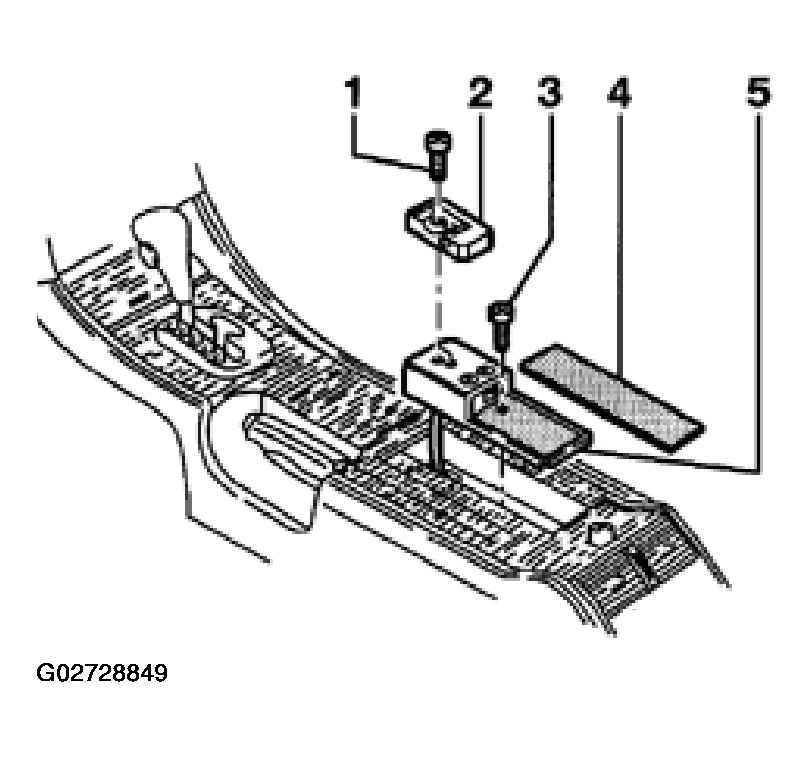

Fig 1: Removing Baseplate
Courtesy of AUDI OF AMERICA, INC.

NOTE: The baseplate contains wiring/connection preparation for the handset, which needs only to be plugged in.
Access wiring/connection by removing the baseplate.
