Digital cellular telephone docking station/retainer in center console, removing and installing: Removing

Remove cellular telephone -1- from adapter module -2- and disconnect adapter module cable connection -3- from baseplate -6-. See Fig 1 .
Remove screws -4- (2 Nm) and docking station -5-.
Remove screw -7- and baseplate -6-, being sure to being sure to unclip telephone wiring connection -8-.

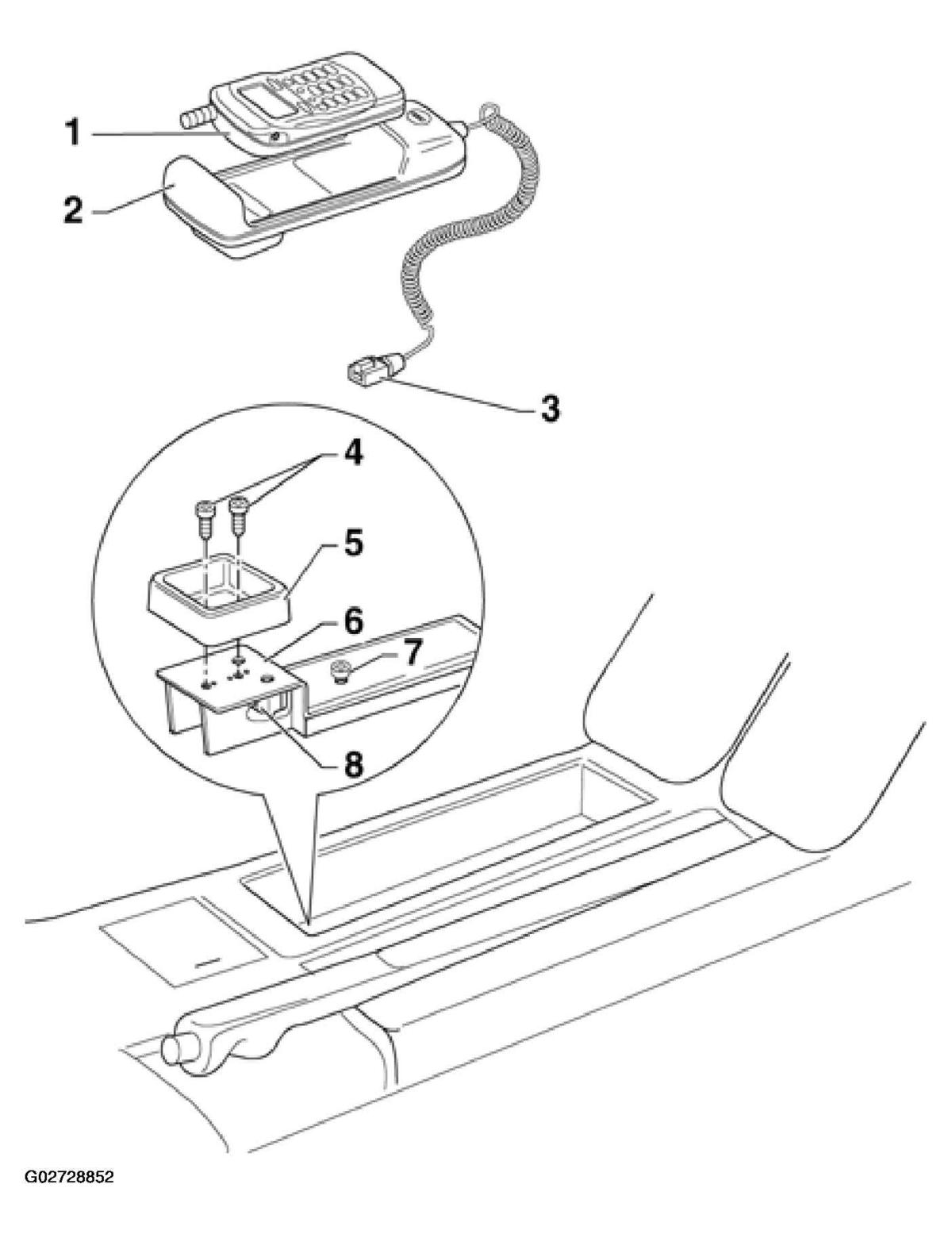

Fig 1: Removing Digital Cellular Telephone Docking Station/Retainer In Center Console

Courtesy of AUDI OF AMERICA, INC.
